Tamiya 1/10 Rc Volkswagen Beetle Rally, W/ Mf-01X

**Additional Technical Information Will Be Added When It Becomes Available.**

    This is the Tamiya Radio Controlled, Electric Powered,
Volkswagen Rally Off Road Lorry Kit.

FEATURES:

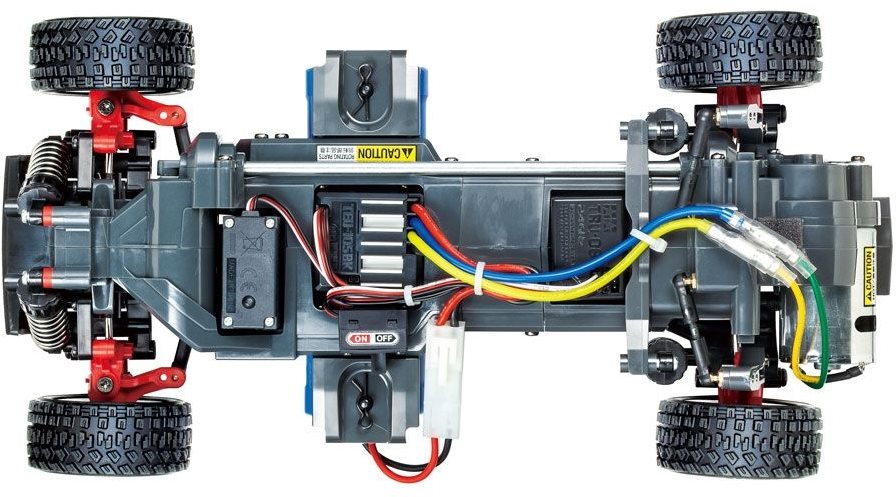

Chassis: MF-01X three-piece resin monocoque, suitable with
    existing M-chassis bodies, adjustable wheelbase
Drive: 4 wheel, gear driven rear wheels, dogbone with driveshaft
    driven front wheels

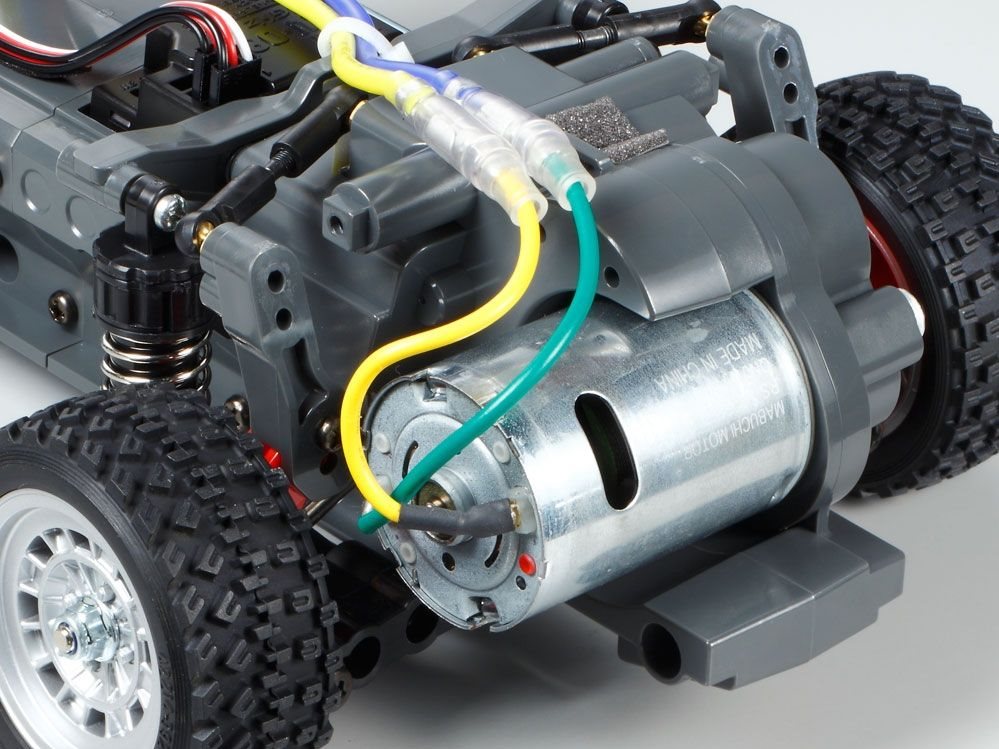

Motor: Brush geared up Mabuchi RS-540 Torque Tuned
Electronic Speed control: TBLE-02S with Tamiya type adapter

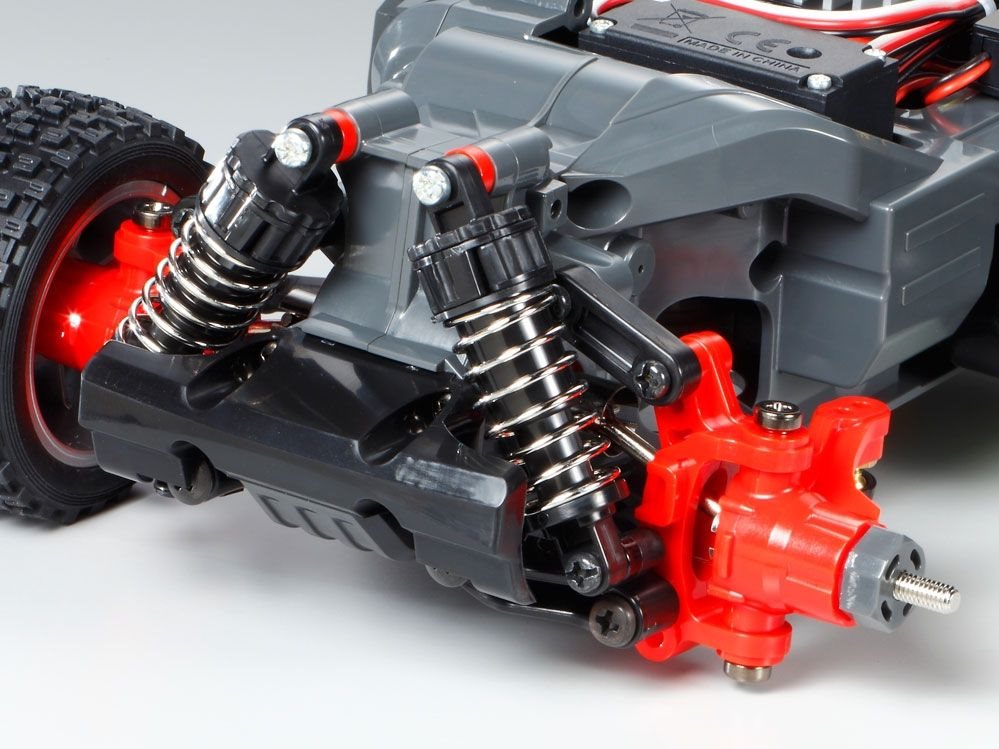

Suspension: 4 wheel independent double wishbone
Differentials: Gear type

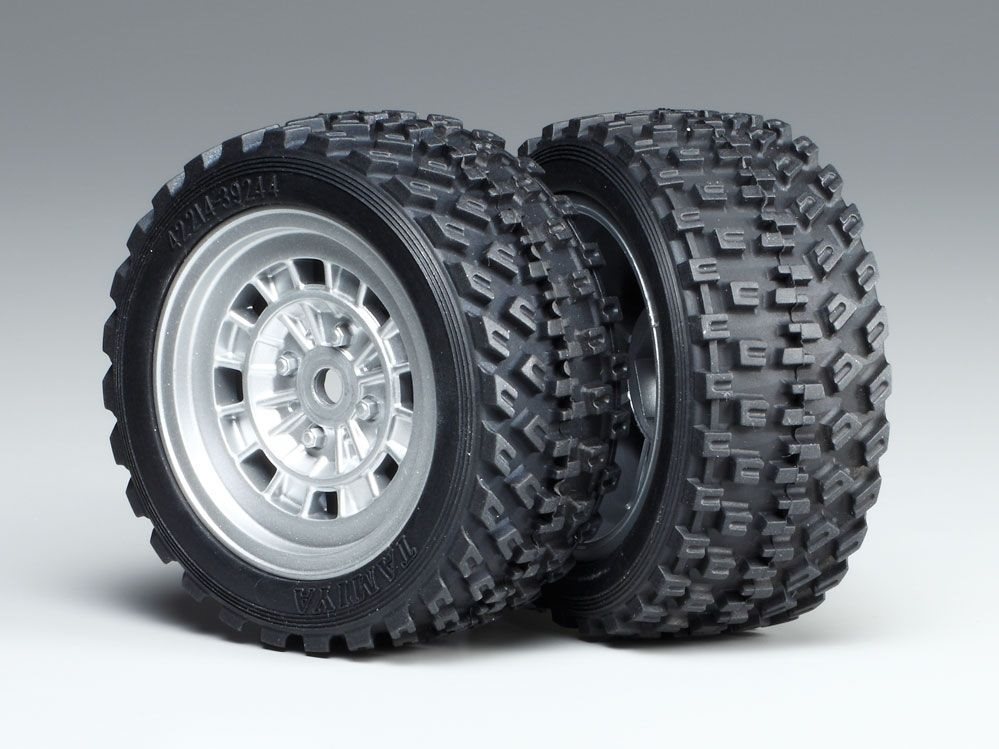

Tires: Rally block 1.06" (27mm) broad, 2.7" (69mm) diameter
Wheels: 1.02" (26mm) broad, 1.9" (48mm) diameter, gray in color

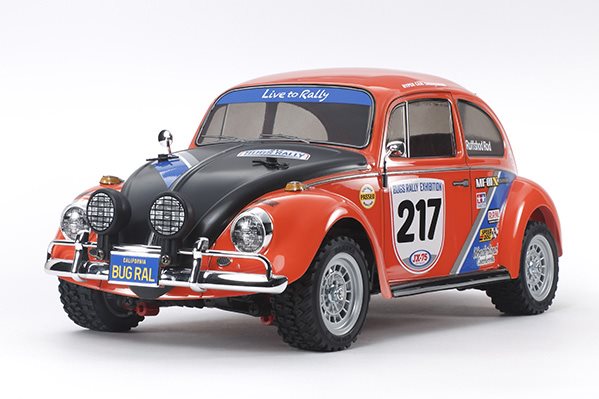

Body: Cut and painted polycarbonate, separately molded side
    mirrors
Shocks: Friction, plastic body
Caster: Adjustable, caster/toe-in refers to the angle of the front
    suspension when viewed from the side of the cars and truck in relation to the
    chassis
Camber: Non-adjustable
Steering: Bellcrank type

CONSISTS OF:
Volkswagen Beetle Rally Off Road Lorry Set with Body, Tires,
    Wheels, 16T Pinion Gear and Manual

REQUIRES:
Radio: 2-channel with high torque guiding servo
Battery: 6-cell NiMH with Standard adapter
Battery Battery charger: To match selected battery
Tools, track equipment

SPECS:
Wheelbase: 9.4" (239mm) adjustable
    Body-
Length:
Width:
Height:

COMMENTS:
To update to Ball Bearings usage:
    Qty. Size Area Qty. Bearing Set
2 5x11mm Front Gearbox 1 DTXC1547
2 5x11mm Back Gearbox 1 DTXC1547
2 5x8mm Driveshaft 1 DTXC1523
2 5x11mm Back Axles 1 DTXC1547
2 5x11mm Front Wheels 1 DTXC1547
