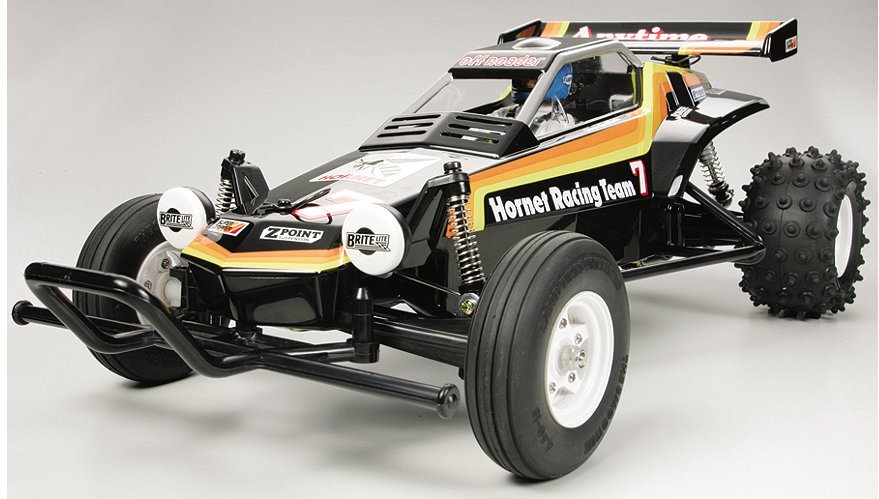

Tamiya 1/10 The Hornet RWD Kit

Relive the days of 32 pitch gears, 1.4" diameter 3-piece wheels and
kits you had to develop yourself with the re-release of the
Tamiya traditional The Hornet RWD Off-Road Racer.

FEATURES:
Chassis: Monocoque plastic tub design chassis
Drive: Rear wheel drive
Body: Clear Lexan with clear Lexan wing
Electronic Speed Control: Tamiya TEU-104BK with forward and reverse
Motor: Mabuchi RS540SH (bushing/sealed endbell)
Plastic bushings
Shocks: Coil-over friction in front and aluminum body oil-filled in
the rear
Transmission: Sealed rear gearbox
Differentials: bevel gear
Transmission: single speed
Tires: 1.4" increased on the back and 1.4" ribbed on the front
Wheels: 5-spoke, 3-piece White plastic wheels
Bumpers: Big Black plastic rail type front bumper
Suspension: Independent front A-arm and rear rolling rigid axle
Camber Tie Rods: fixed non-adjustable
Steering Tie Rods: adjustable
Steering: 2 steering rods attach to the servo saver and knuckle arm
Servo Saver: consisted of

CONSISTS OF:
Hornet rolling chassis with rear oil-filled shocks, 540 motor,
Electronic Speed Control, clear body, tires, 3-piece wheels, 19
tooth 32 pitch pinion gear, 50 tooth counter gear, decal sheet and
constructing instructions.
REQUIRES:
Radio: 2-Channel with 1 steering servo
Radio Batteries: (8) AA size
Receiver
Battery: 6-cell stick pack w/standard connector (7-cell will not fit)
Charger: AC/DC Timed or Peak for 6-cell battery
Paint: Needed for the body (Black paint to replicate box art)
Misc. Items: Building and track equipment

SPECIFICATIONS:
VEHICLE-
Length: 15.74" (400mm)
Width: 9.05" (230mm)
Height: 5.90" (150mm)
Weight: 1.92lbs (874g)(approx.)
Tires- Front: 1.4" ID - 2.85" OD - .80" wide
Rear: 1.4" ID - 3.75" OD - 1.75" wide
    BODY-
Length: 13" (330mm)
Width: 5.5" (139mm) at rear wheels (largest point)
2.25" (57mm) behind from wheels (thinnest point)
Height: 3" (76mm)

COMMENTS:
For Replacement Ball Bearings usage:
    Qty. Size Place Bearing Set Qty.
    (1) 5 x 8mm counter gear (usage 1 DTXC1523)
    (13) 5 x 11mm everywhere on the design (usage 7 DTXC1547)

Body pictured on package is painted Black
