Tamiya 1/10 Rc Suzuki Swift Sport Kit, M-05 Chassis

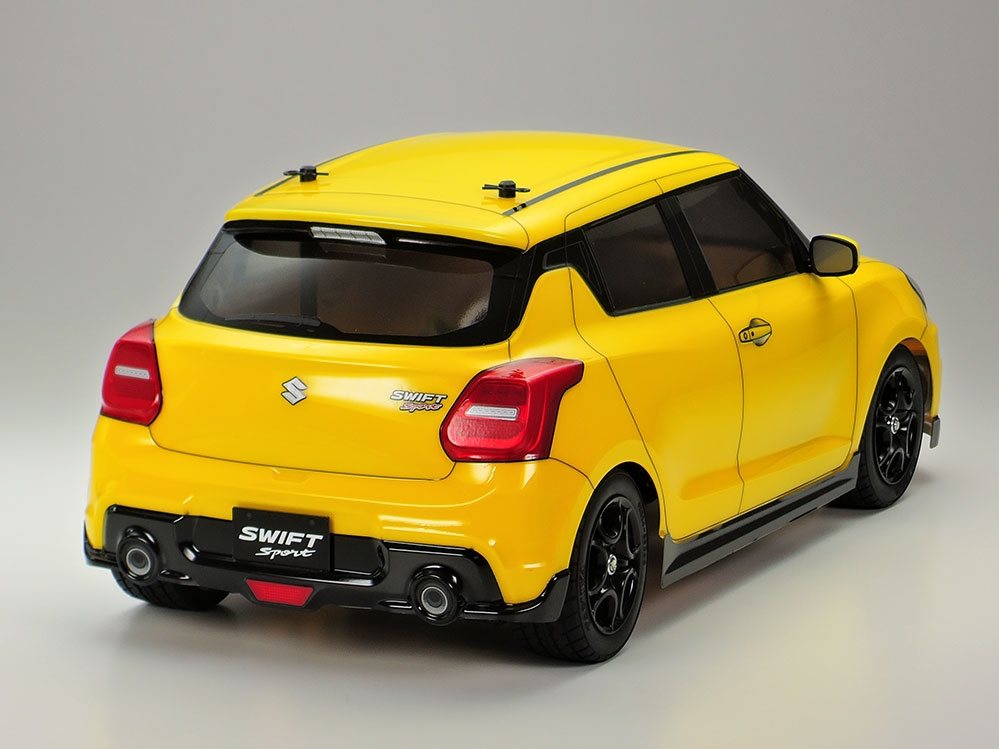

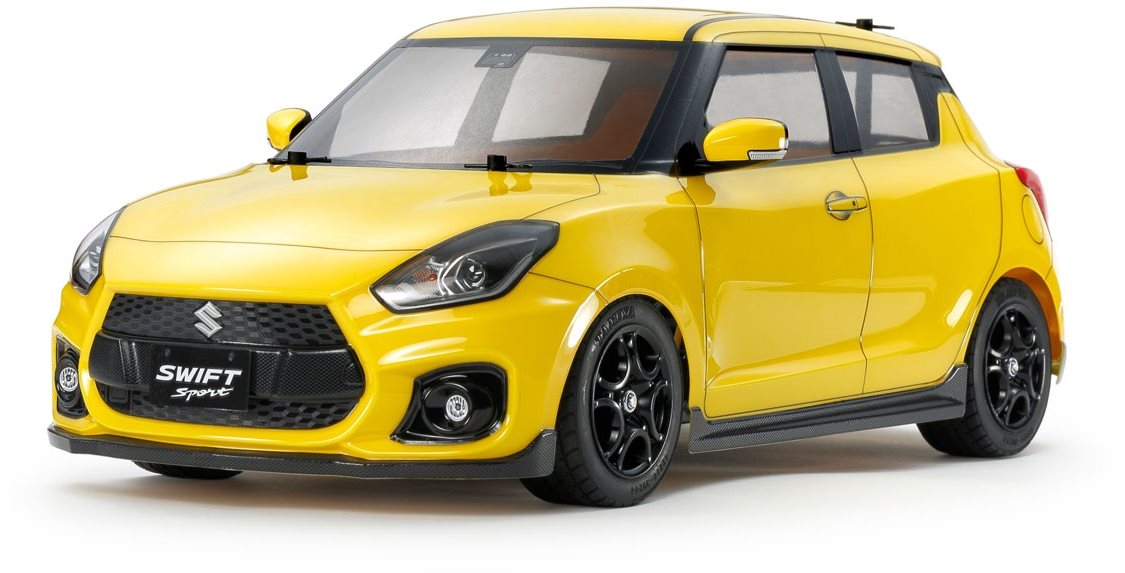

Images show kit assembled for reference purposes.

The Tamiya M-05 chassis is a fun, simple on-road chassis that takes front wheel drive mechanics and puts replica compact cars on top for fun driving thrills. This kit recreates the Suzuki Swift sport. The Swift underwent a full model change in 2017, and impressively managed to improve overall design rigidity while getting lighter. It was given a wider tread, a direct injection 1.4-liter inline-4 engine and 6-speed automatic transmission. The Tamiya assembly kit faithfully captures the body and its details in tough polycarbonate material with the body already pre-painted!

Required to Complete: 2-Channel radio, steering servo, 7.2volt battery pack with compatible charger.

Features:

• Lightweight, durable polycarbonate body pre-painted in yellow. Wheel arches and the separate polycarbonate light cases come pre-cut.
• Separate injection molded parts are included to recreate side mirrors.

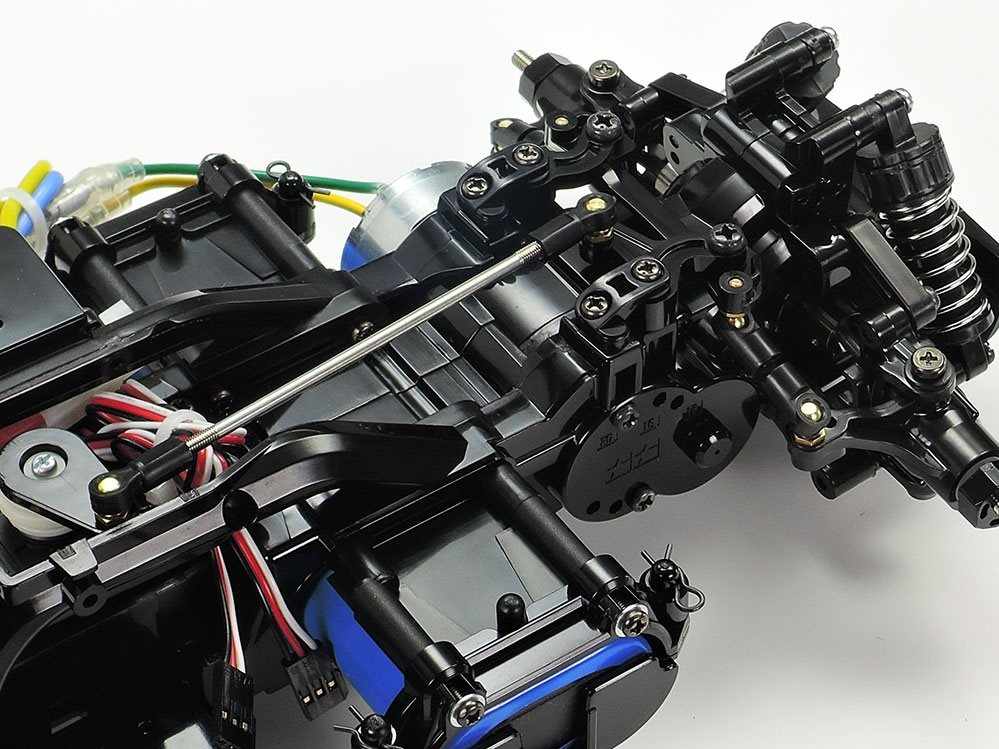

• The M-05 chassis is a compact unit based around a lightweight monocoque and offering great weight distribution with a low center of gravity.
• A centerline steering servo is at the heart of the 3-piece steering tie-rod for superb response.
• Includes a transponder stay component, which is a must for those who want to race.
• The rear section can be re-configured for three different wheelbases (this model: 239mm

Specifications:

• 1/10 scale 2WD On-Road R/C model assembly kit.
• Length: 381mm, Width: 167mm, Height: 145mm, Wheelbase: 239mm
• Chassis Type: M-05
• Chassis Material: ABS Plastic
• Adjustable Gear Ratio: Yes
• Bearings: Plastic bushing
• Body Material: Polycarbonate pre-painted body
• Body Stickers: Included
• Differential Type: 3-Bevel Differential Gear

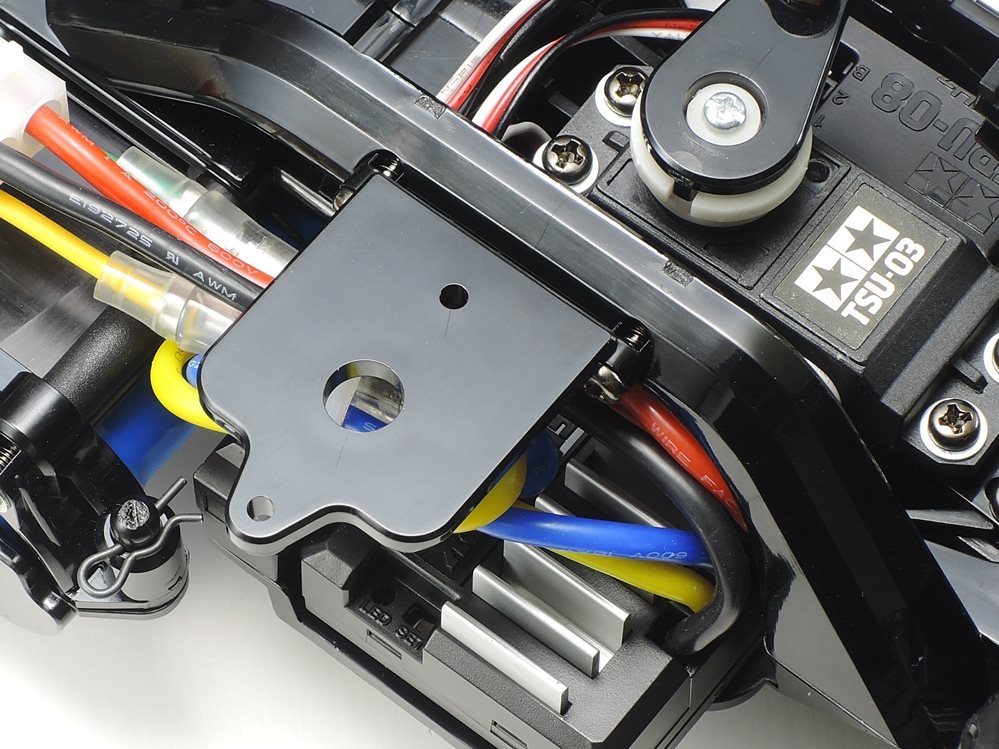

• Electronic Speed Control (esc) Includes HobbyWing THW 1060 Brushed Motor ESC (2-3S)
• Motor 540-brushed type
• Shock Damper: Friction type

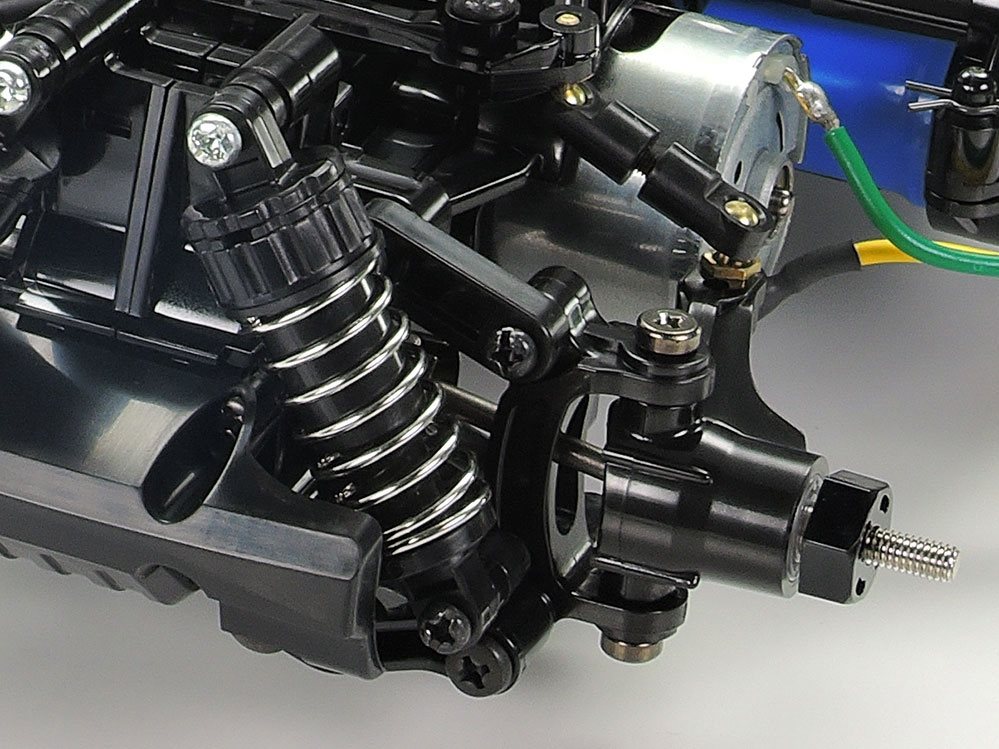

• Suspension: Fully Independent Double Wishbone
