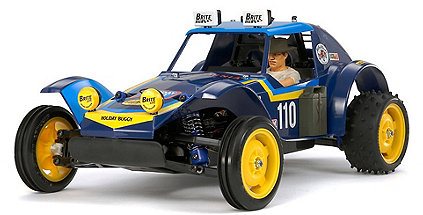

Tamiya 1/10 Holiday Buggy 2010 DT02

This is the 1/10 scale, radio controlled, electrical powered,
Tamiya 2010 Holiday Off-Road Buggy Kit.

FEATURES:
Chassis: DT-02 MS 0.08" (2mm) thick plastic, bath tub type
Drive: Rear wheel, steel universal driveshafts
Shocks: Plastic body, friction type
Motor: 380 size (540 size will fit, see COMMENTS)
ESC: Tamiya TEU 104BK, with reverse
Body: Constructed of polyethelene, blue in color, with prepainted
    chauffeur figure
Gearbox: Sealed
Differential: Three bevel gears
Ball Bearings: Consists of plastic bushings. Ball bearings are optional
Transmission: Single-speed
Tires: Ribbed front 0.86" (22mm) large, 3.2" (81mm) size
Spiked rear 1.5" (39mm) large, 3.4" (86mm) size
Wheels: Nylon resin, yellow in color
    Front, 0.69" (17.5mm) large, 2.2" (57mm) size
    Back, 1.3" (34mm) large, 2.2" (57mm) size
Bumper: Front plastic
Suspension: Four wheel double wishbone
Camber: Non-adjustable
Steering: Two-piece adjustable steering tie rods

INCLUDES:
Tamiya 2010 Holiday Off-Road Buggy Set with TEU 104BK ESC, 380 size
    motor, tires, wheels, body, chauffeur figure, decals, guideline
    manual, spur equipment and 17 tooth pinion equipment

NEEDS:
Radio: 2-Channel with one basic servo
Radio Batteries: Eight AA size
Battery: 6-cell w/standard port
Battery charger: AC/DC timed or peak for 6-cell battery
Misc. Items: Tire glue, building and track devices

SPECS:
VEHICLE-
Length: 15" (390mm)
Width: 9.4" (240mm)
Height: 6.4" (164mm)
Weight: 44oz (1250g)
Wheelbase: 10.2" (260mm)
Ground Clearance: 1.02" (26mm)
Front Tread: 8.5" (217mm)
Back Tread: 8.2" (208mm)
Equipment Ratio: 15.77:1
    BODY-
Length: 14.8" (376mm)
Width: 7.2" (184mm)
Height: 4.2" (107mm)

COMMENTS:
When installing a 540 size motor, the following parts are required
    and need to be purchased independently;
    #3515005 17 Tooth Pinion Equipment (not brought)
    3mm Grub Screw (TAMC5076)
    Motor Plate (TAMC3120)

For Replacement Ball Bearings usage:
    Qty. Size Place Qty. Bearing Set
4 5x11mm Gearbox 2 DTXC1547
2 5x11mm Spur Equipment 1 DTXC1547
2 5x11mm Back Axles 1 DTXC1547
4 5x11mm Front Wheels 2 DTXC1547
4 5x11mm Back Wheels 2 DTXC1547
