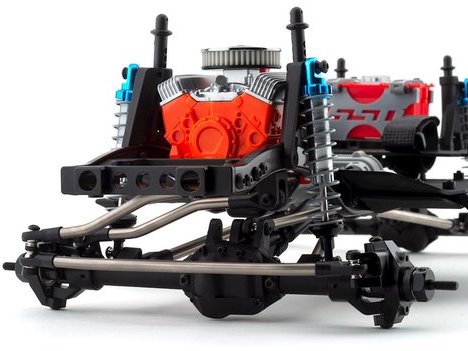

SSD RC Trail King Pro Scale Crawler Chassis Builders Kit

The SSD Trail King Pro Scale Chassis Builders Set was established to provide discriminating scale contractors a more effective weapon for their arsenal. The Trail King offers a level of scale realism that has never ever been readily available in a box stock kit - previously. By combining their proven, high performance choice parts with a range of distinct parts that are just discovered in the Trail King, SSD has raised the bar and developed a set that can be successfully utilized by scale lovers and performance oriented crawlers alike.

Scale Engine & Transmission Assembly

The SSD Trail King consists of a very first of its kind multi-piece molded plastic V8 engine that is complimented by a scale transmission and transfer case assembly. The scale engine houses a forward mounted motor and each element is thoroughly modeled as near the 1:1 parts as possible. The engine is comprised of 14 private pieces, and with a little creativity can be detailed and modified even further. Plus, the transmission holds the motor very low in the chassis, supplying a lower CG and increased performance when compared to motor forward configurations from other brand names.

Offset Pro44 Front Axle

By using their proven Pro44 axle parts, and combining them with a unique balanced out axle tube setup, SSD has developed a scale axle housing that is resilient and light-weight. The axle tubes are one piece, so they remove the link mounts and associated hardware that shows in the front of the axle - producing an exceptionally sensible looking, light-weight axle housing. The axle is finished off with machined aluminum c-hubs and knuckles, 6 bolt locker/ring equipment assembly, and solidified steel balanced out universal joint axles that allow up to 50° of guiding throw!

Hardened Steel & Titanium

The Trail King is a real premium level contractors kit. With high quality accuracy machined parts throughout, the kit is ensured to impress even the most requiring contractors. From solidified steel machined equipments and driveshafts, to the titanium links and SSD Pro Scale 90mm shocks, this kit is totally equipped out of the box. Without any need to toss a bunch of upgrade parts at the truck, you can focus on choosing the body, wheels and tires you desire - and build a truly distinct, high performance scale truck.



Functions:

Scale chassis layout

Steel C channel frame rails

Scale transmission with aluminum motor mount

Machined solidified steel equipments throughout

V8 engine motor cover

Chassis mounted servo

Scale axle design

Machined aluminum C hubs

Machined aluminum knuckles

Solidified steel universal joint axle shafts

Machined solidified steel 6 bolt lockers

Machined solidified steel 6 bolt axle equipments

Machined aluminum chassis panhard mount

All titanium links

Machined solidified steel scale driveshafts

Machined aluminum bumper mounts

Machined aluminum wheel hexes

Machined aluminum shocks

Low CG rear mounted battery tray

Scale fuel cell receiver box

305 - 324 wheelbase (with optional links)

Fits SCX10 II suitable bumpers

Fits SCX10 II suitable bodies

Requirements:

Wheelbase: 313mm

Transmission Ratio: 11.8:1

Axle Ratio: 3.75:1

Final Drive Ratio: 44.2:1

Needed To Complete:

ESC & Motor

2-3S LiPo Battery and Charger

Appropriate LiPo Charger

Radio & Receiver

High Torque Servo & 20mm Servo Horn

Your choice of 1/10 scale body, tires, and wheels

AA Batteries for transmitter

Grease, threadlock and shock oil

Tools for assembly
