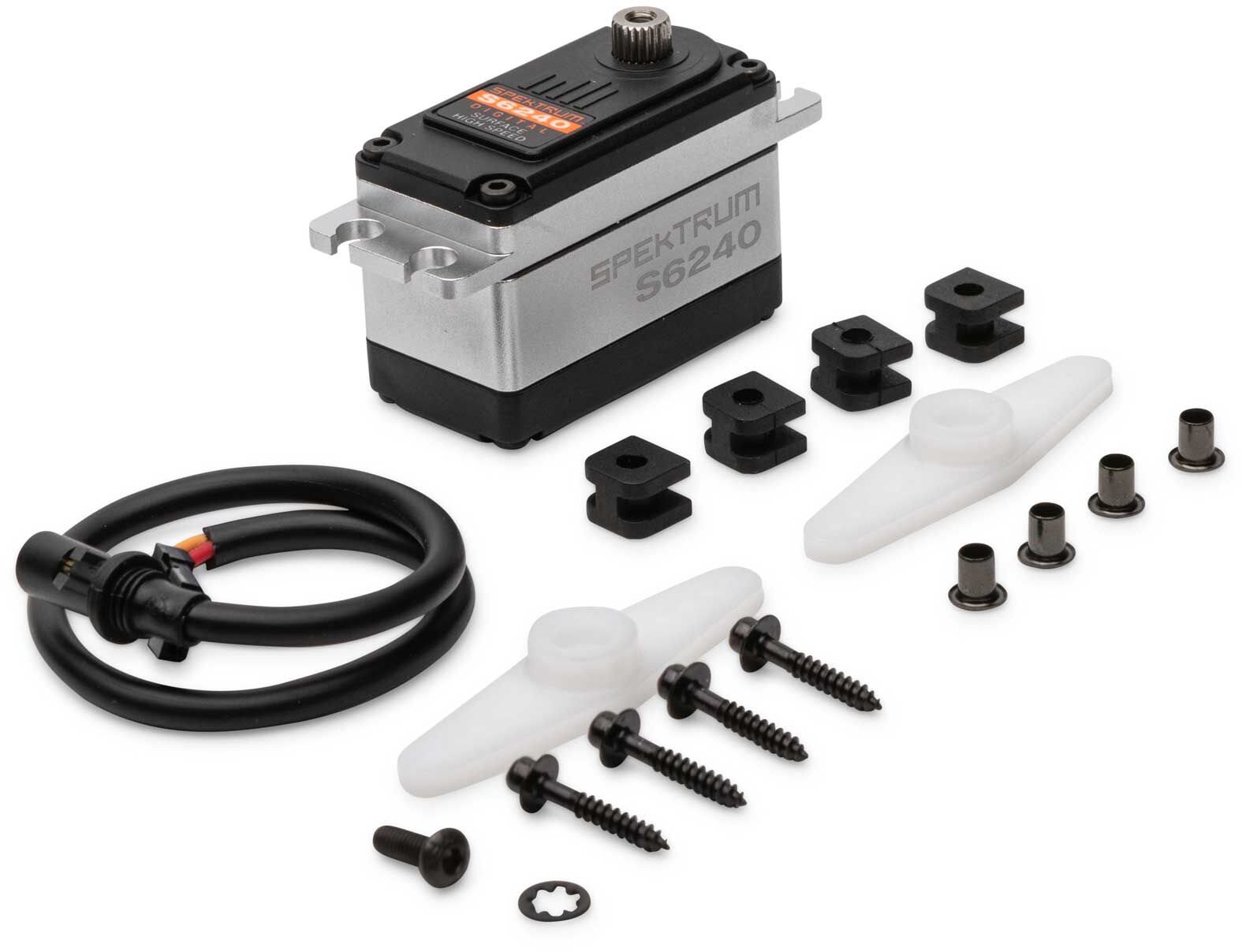

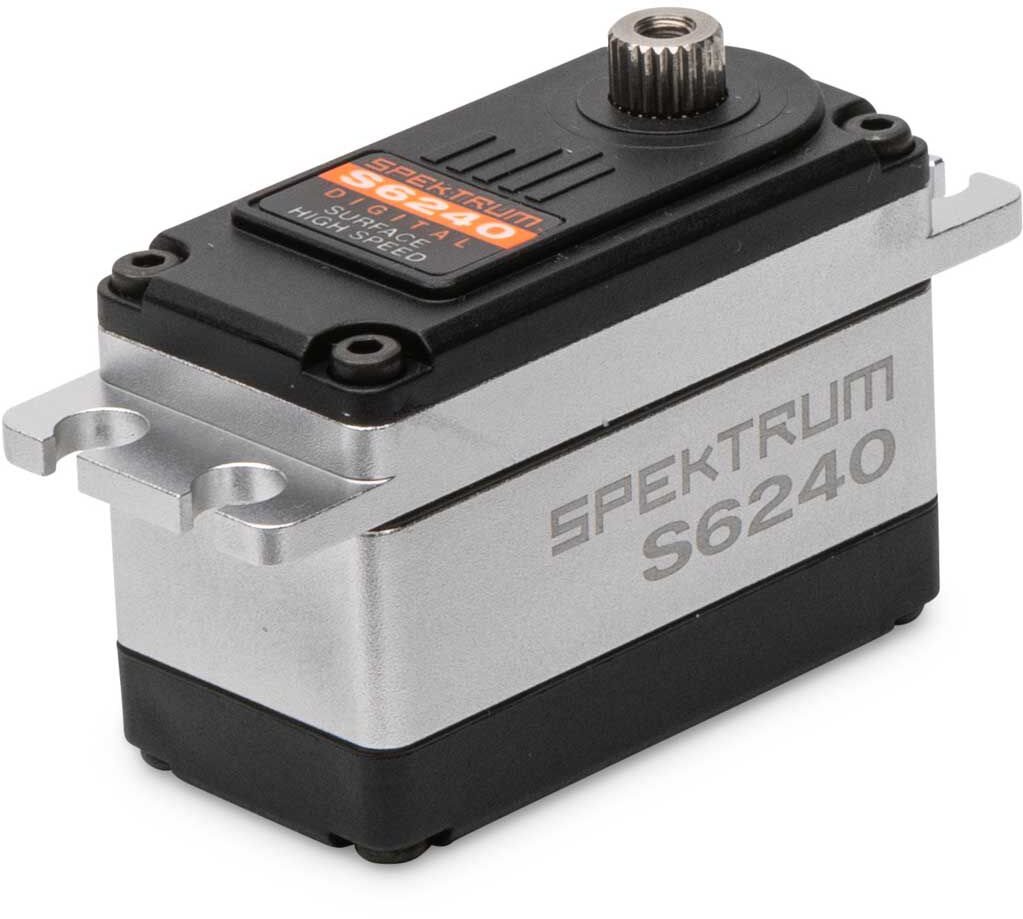

Spektrum S6240 High Speed, Dig Servo

Features



Detachable wire harness with various lengths available7075 Aluminum tough anodized output shaft/main gear with steel internal gearsAluminum case for good heat dissipationAluminum mounting tabsNMB double main bearings23T output shaft




Overview


The most recent generation of Spektrum surface servos offers you with the efficiency you need for any 1/10th to 1/8th scale lorry application. The S6230 and S6240 use high-torque or high-speed efficiency in a more compact size for 1/10th scale spiders or beast trucks where space is limited. The S6250 HV and S6260 HV are basic size servos for High-Voltage applications as much as 8.4V, And the S6280 HV and S6290 HV feature all metal case building for the supreme 1/8th scale efficiency. All these servos feature Spektrum innovations like the detachable wire leads that allow for customized lead length and ease of maintenance and all metal servo mounting tabs to keep them in place through the most extreme conditions.







Specifications


Size Classification: Specialty
Type: Digital
Application: 1/10 Buggy, Truck, On-Road
Torque: 208 oz-in (15.0kg-cm) @ 6.0V
Speed: 0.08 sec/60 deg @ 6v (no load)

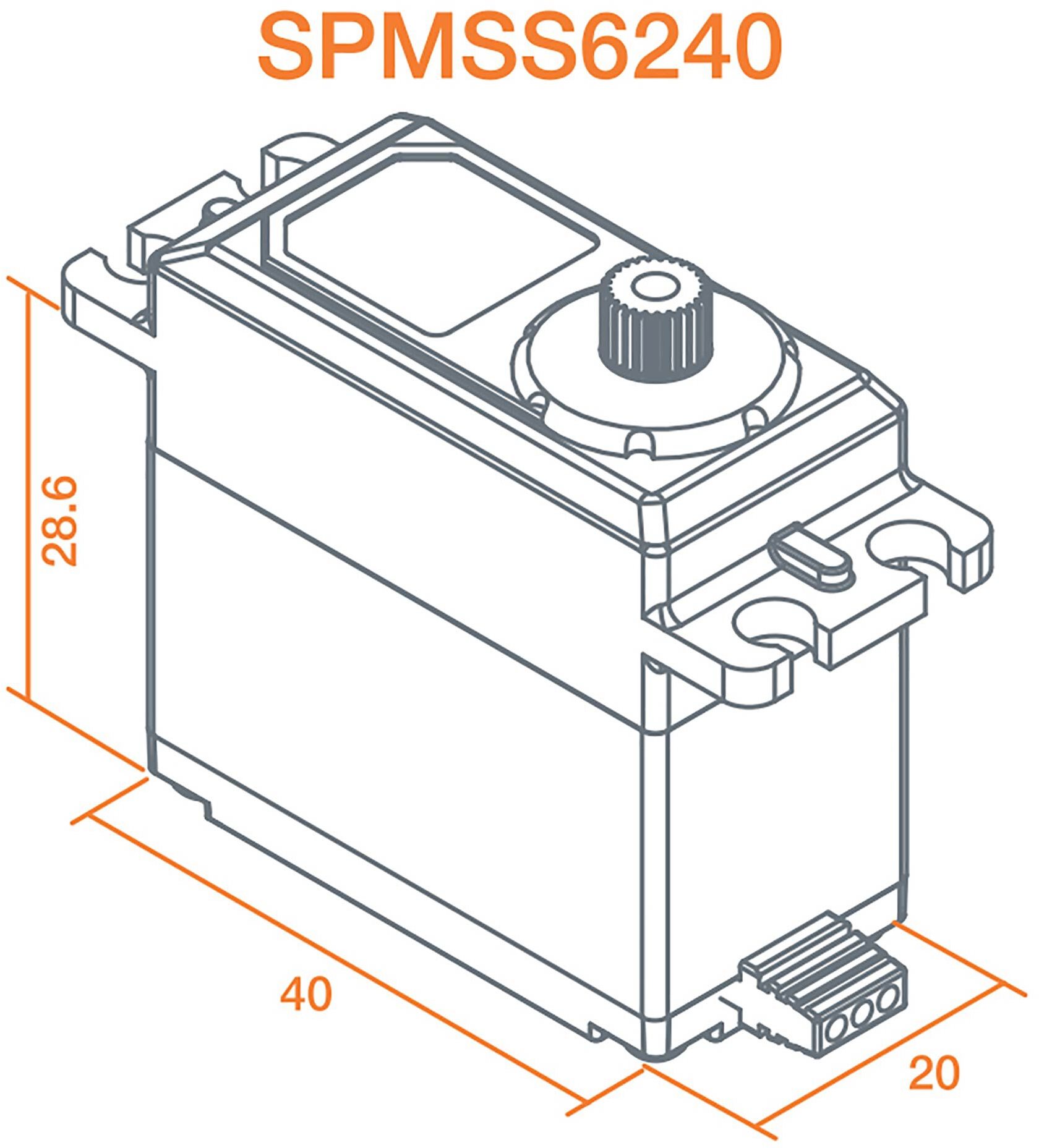

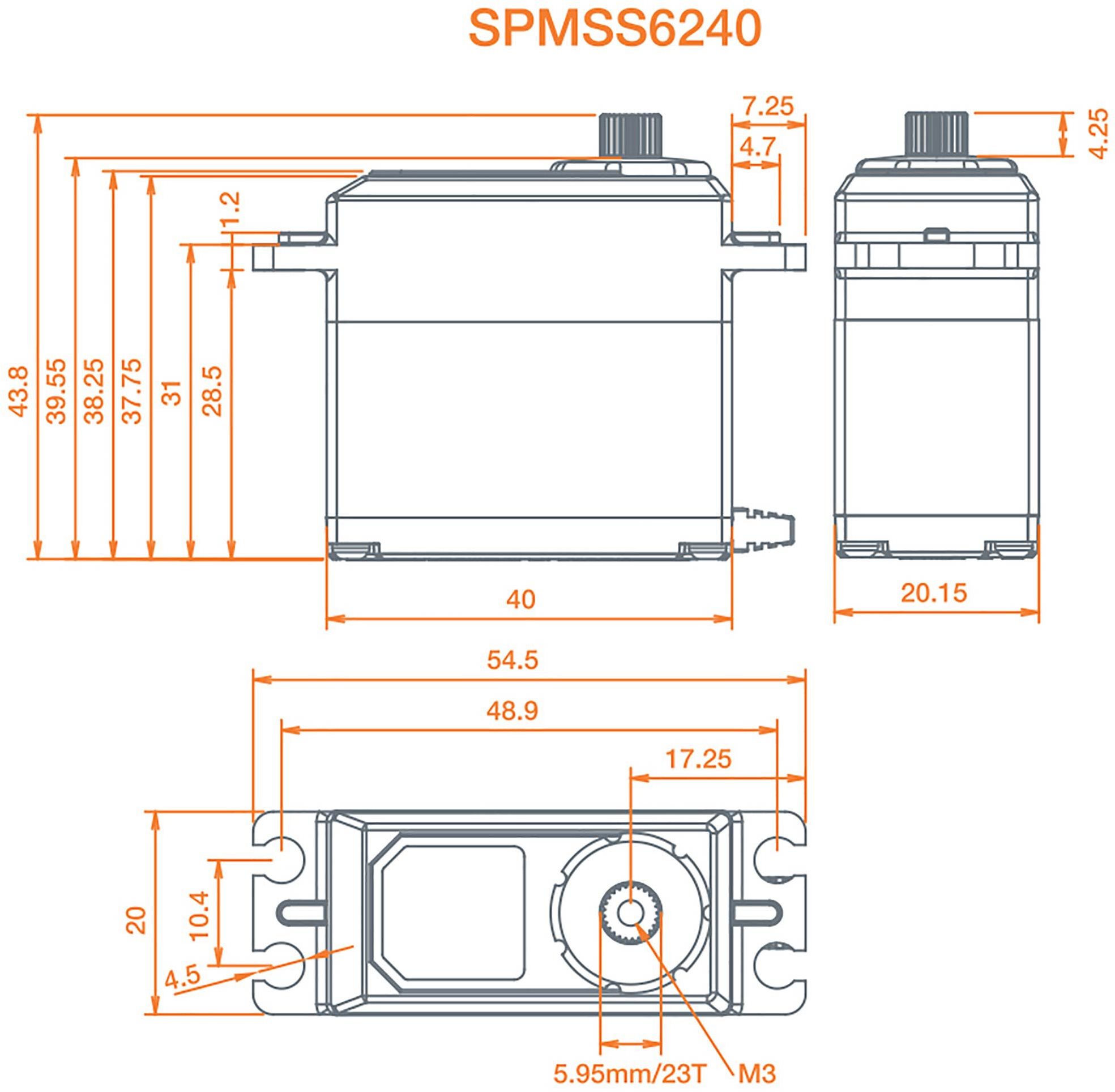

Length: 1.61 in (41mm)
Width: 0.82 in (20.9mm)
Height: 1.18 in (30mm)
Weight: 2.1 oz (59.5g)
Bushing Or Bearing: Bearing
Bearing: Dual
Motor Type: Coreless
Connector Type: Z-Connector, detachable
Equipment Type: Metal
Equipment Product: Steel, Aluminum
Current Draw Idle: 9.8 mA @ 6.0V
Current Draw Stall: 4.9A @ 6.0V
Voltage: 6.0V
