Overview
The Firma 2800Kv Sensored brushless motor is a great option for 1/10 scale crawlers, rock racers, and trailers working on TWO – THREE LiPo power. Including a low cog 4-pole 8-magnet rotor style, CNC machined aluminum real estate, insulated high pureness copper windings, premium alloy steel 3.175mm (1/8") output shaft, and accuracy bearings for high toughness and smooth rotation. Preinstalled with 4mm gold plated bullet ports for simple setup. The





Features

Outstanding upgrade for 540 brushed motors with the same diameter and mounting pattern (automobile must accept pinions with a 1/8" mm bore)

Perfect for high speed off-road applications such as rock bouncers and rock racers

Top quality 4-pole sintered rotor

Polarity protection - magnetic encoder inside the motor assurances consistency between three stages' signals and always outputs accurate signals indicated by rotor position. When setting up just match wire color to esc ports

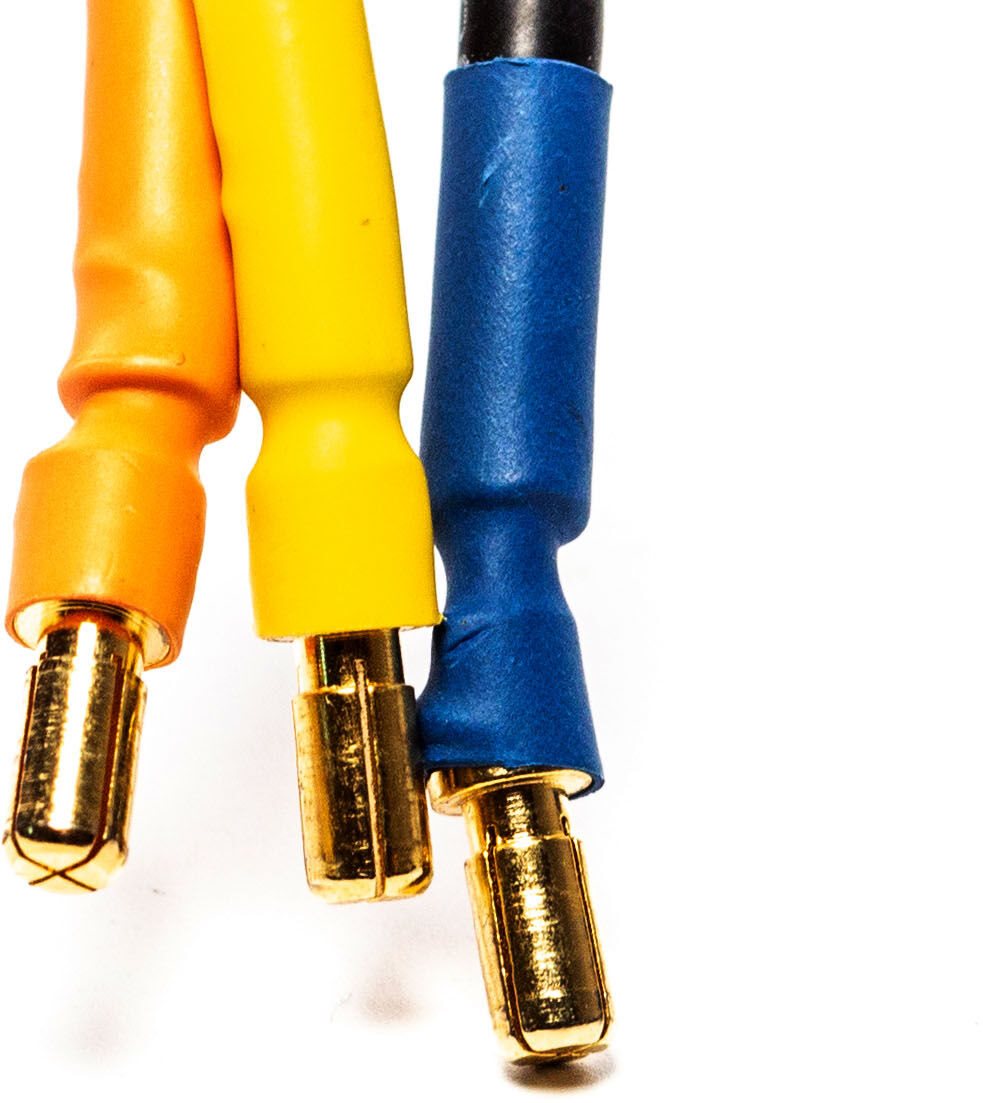

4mm gold plated bullet ports

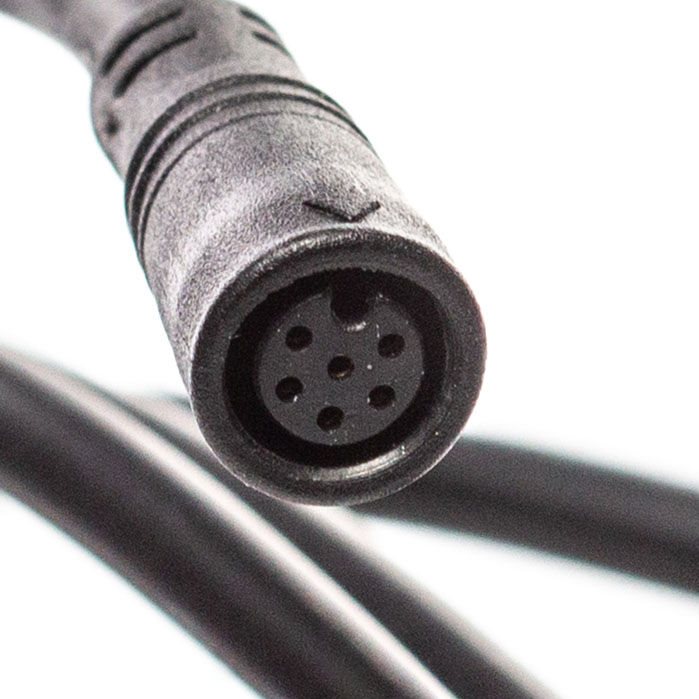

Water resistant sensor wire with locking plug and gasket

Top quality building and construction with accuracy ball bearings and solidified steel 1/8" shaft



Specifications

Application: 1/10 scale crawlers, rock racers, and trailers working on 2S-3S LiPo power

Bushing Or Bearing: Bearing

Connector Type: 4mm Bullet

Forward: Yes

Input Voltage: 7.4 - 11.1V

Maximum Constant Current: 50A

Motor Type: Brushless - Sensored

Variety of Poles: 4

External Diameter: 1.42" (36 mm)

Item Length: 2.27" (58 mm)

Advised Speed Control: Spektrum Firma 60A Sensored Brushless Smart Crawler ESC

Reverse: Yes

RPM/Volt (Kv): 2800Kv

Shaft Diameter: 0.125" (3 mm)

Water-Resistant: Yes
