ITEM INFORMATION

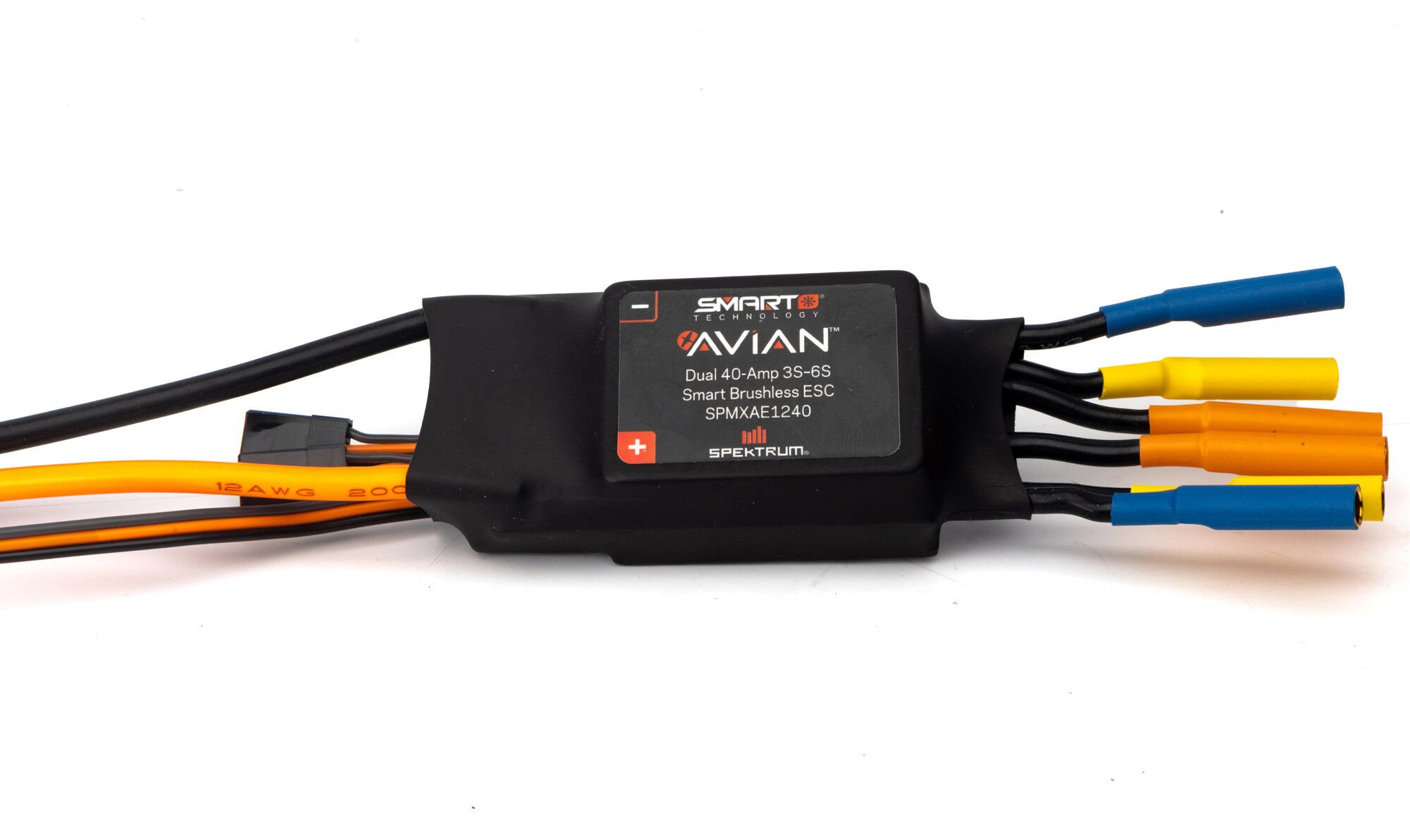

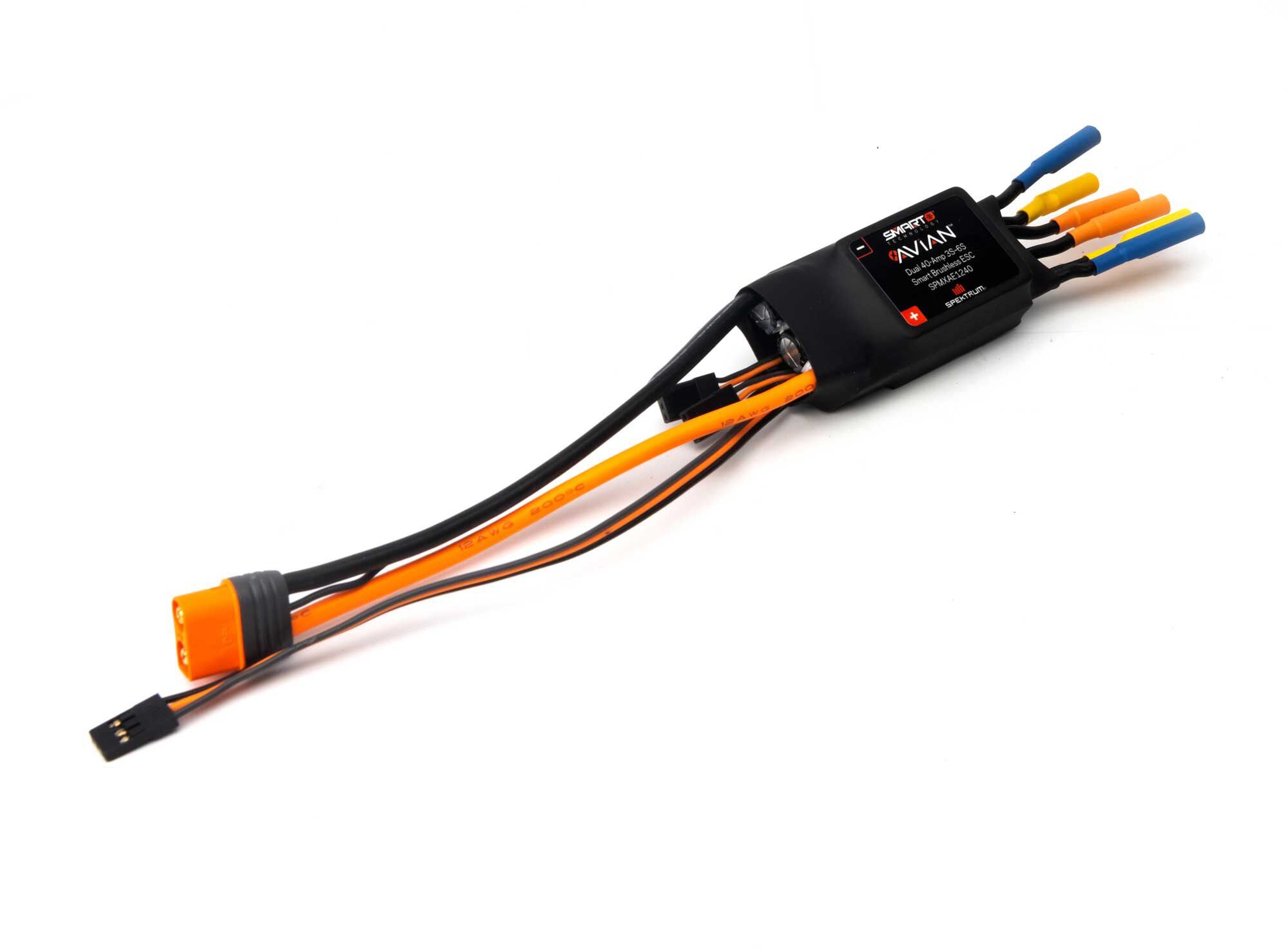

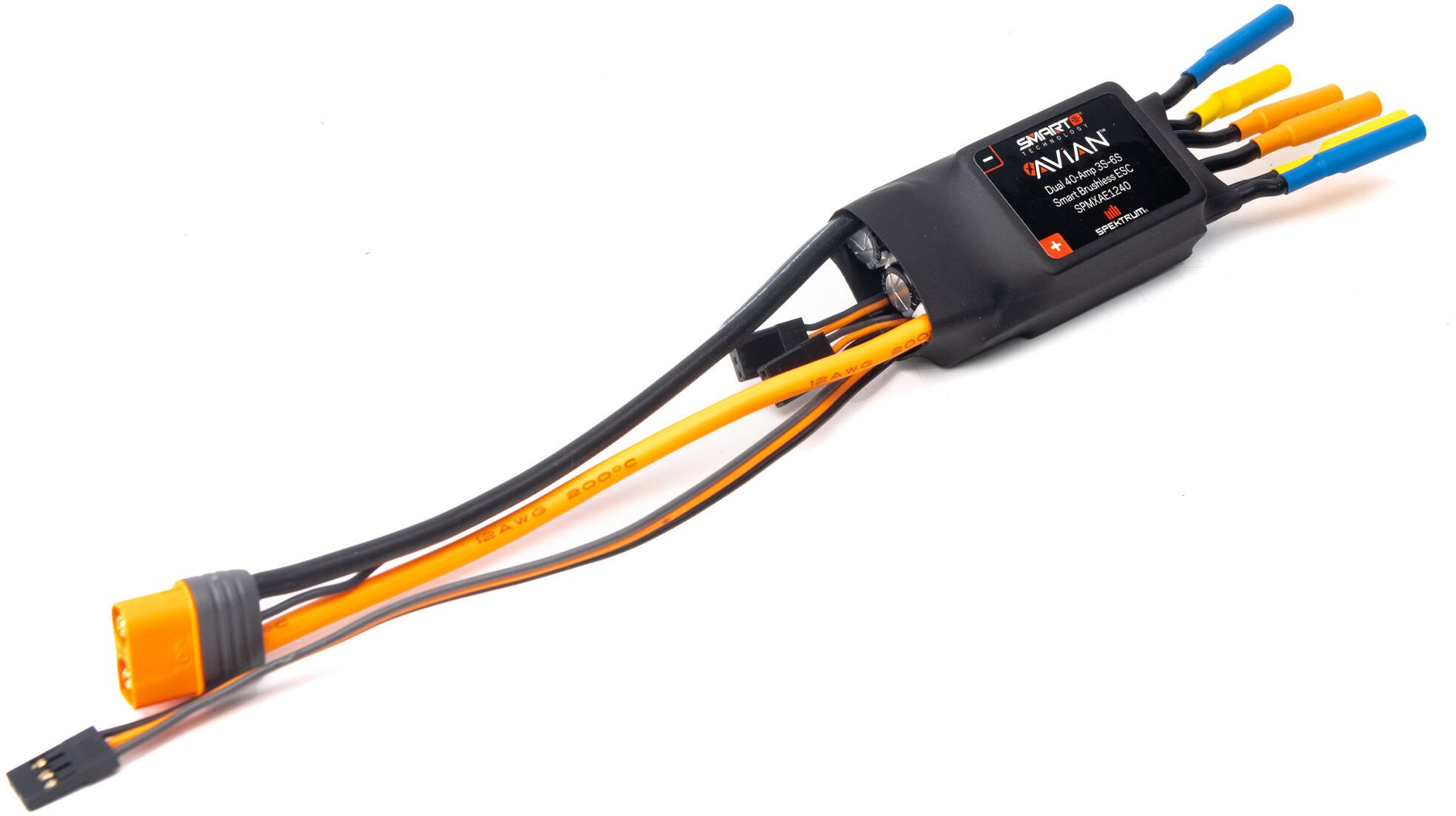

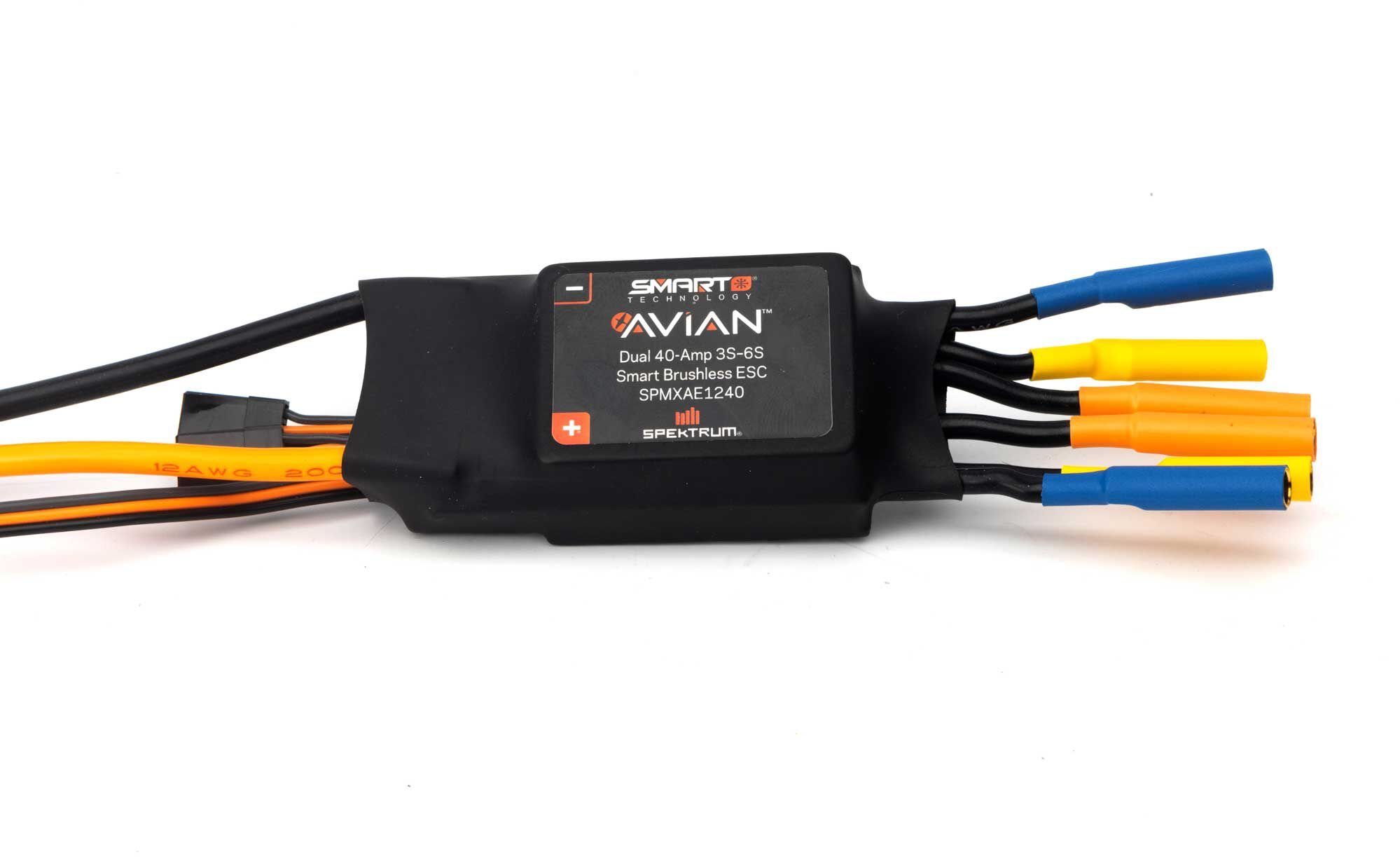

The Spektrum Bird Smart 40A Dual Brushless ESC is the ideal upgrade for 3S-6S twin EDF jets and other twin-powered designs. Like other Spektrum Bird ESCs, this ESC delivers power and intelligence all-in-one. Without additional sensing units or modules, they feed battery and ESC telemetry data straight to your radio in genuine time, all over one connection.





Product Features

Smart all-in-one telemetry

2 x 40 Amp continuous current

Quick, effective 32-bit ARM M4 processor

2 Program wires with multiple programming options:

Bird Prog (TextGen) Telemetry

Button programming

Smart ESC Programs Box

SmartLink USB Updating and Programmer application

Multi-point security:

Over-current security

Automatic LiPo low-voltage cutoff

Thermal security

Failsafe security

Compact for easy installation in a lot of applications

Heat dissipating design

All set to set up — no soldering required

High heat-resistant IC5™ port, is backwards compatible with EC5™ connectors

Restricted 1-year guarantee





WISE INNOVATION INTRODUCTION
Like every part in the Spektrum™ Smart environment, Bird™ Smart ESCs combine "plug-and-play" simplicity with the ability to interact with other Smart electronics — together, developing the best-performing RC system for your car imaginable.
Avian Smart ESCs do far more than manage power. They work like a virtual engineer inside your design, supplying a direct path to the crucial operating data you require to reach peak efficiency. Smart ESCs provide you an extra layer of self-confidence that your electronics are all running at their best.
With Bird Smart ESCs, you'll be better connected to your car than ever before — without installing additional parts that all work separately of each other. You will not require additional wires, modules, or links. An Avian electronic speed control provides a one-wire option for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.
Avian ESCs not only gather the data however likewise send it to your transmitter in genuine time, rather of only keeping it for after-run research study. You're able to change settings as required to enhance efficiency on the go. The Bird Smart single-wire telemetry option has actually been checked for quality and efficiency by the best brand names in RC. Their decision? Smart innovation is both simpler and exceptional!










Spektrum™ Smart Technology










One-Wire Telemetry
No need to connect multiple wires, sensing units, modules, and links. With Bird™ ESCs, easy one-wire telemetry transfers a large range of data straight to your transmitter in genuine time, consisting of current, voltage, cell balance, temperature and RPM.








Smart ESC Thrust Reversing
Now consisted of with Smart Bird ESCs is the ability to reverse the motor at the flip of a switch! This permits pilots to use the power system for increased mobility on the ground along with serving as a brake for designs needing more runway to land. This function requires a Smart compatible Spektrum Transmitter and Receiver and needs to be activated with in the ESC criteria.



On-Screen ESC Programming
Avian ESCs now come updated to enable pilots to set any ESC parameter, right from their Spektrum Transmitter, via the Bird Prog telemetry screen. This makes it easier to make quick setting modifications, adjustments and experimentation to maximize power output or efficiency , right on the flight line, no additional boxes or modules required! This function requires a Smart telemetry compatible Spektrum Transmitter and Receiver.








EC5™ BACKWARDS COMPATIBLE
Avian™ ESCs feature IC™ series battery connectors. The IC series of connectors are created from the ground up to supply a more solid connection, higher heat resistance, and effortless installation. When utilized with an IC5™ port geared up Spektrum™ Smart battery, the ESC can receive and send battery telemetry data.







How To Program Your Bird ESC And Setup Thrust Reverse From Your Transmitter





Specifications

Car Cutoff: Yes

Battery Connector: IC5

Battery Input Lead: 150mm / 12AWG

BEC: Yes

BEC Continous Current: 7A

BEC Maximum Burst Current: 20A

BEC Type: Switch-Mode

BEC Voltage: 5.0V / 7.4V Adjustable

Connector Type: 4mm Bullet

Forward: Yes

Input Voltage: 3S-6S LiPo

Low-Voltage Cutoff Programmable: Yes

Maximum Burst Current: 60A

Maximum Constant Current: 40A

Motor Output Lead: Dual 50mm / 14AWG

Overload Defense: Yes

Product Height: 0.78" (20 mm)

Product Length: 2.36" (60 mm)

Product Weight: 105g

Product Width: 1.37" (35 mm)

Reverse: Yes

Technology : Smart

Wire Gauge: 14 AWG
