Spektrum Avian 6362-200Kv Outrunner Brushless Motor

.mediaFeature [cushioning:2px 0;]

.aligncenter [
text-align: center;
]



Take to the Skies with Spektrum Bird Brushless Motors for Fixed-wing Designs
The mix of exceptional efficiency, high reliability and user-friendly features makes the Spektrum Bird Brushless Motors an excellent choice for your next aircraft job. Plus, the wide choice suggests there's Bird Brushless motor that's ideal for whatever the application, consisting of brushed-to-brushless upgrades along with combustion-to-electric conversions. Equip your plane with a Bird motor to compliment your Smart Innovation geared up models!





Key Advantages

Quick Acceleration and Extreme Torque: Skillfully engineered to deliver fast, smooth and accurate acceleration and power.

Reliable and Practically Maintenance Free: Geared up with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to assist airflow relocation through the motor for effective cooling during and after flight.





Features

Light-weight style

Excellent power and efficiency on 12S power when matched with a 18x10 size propeller

Powerful and resilient Rare-Earth Neodymium magnets

14-pole stator for smooth and accurate propulsion

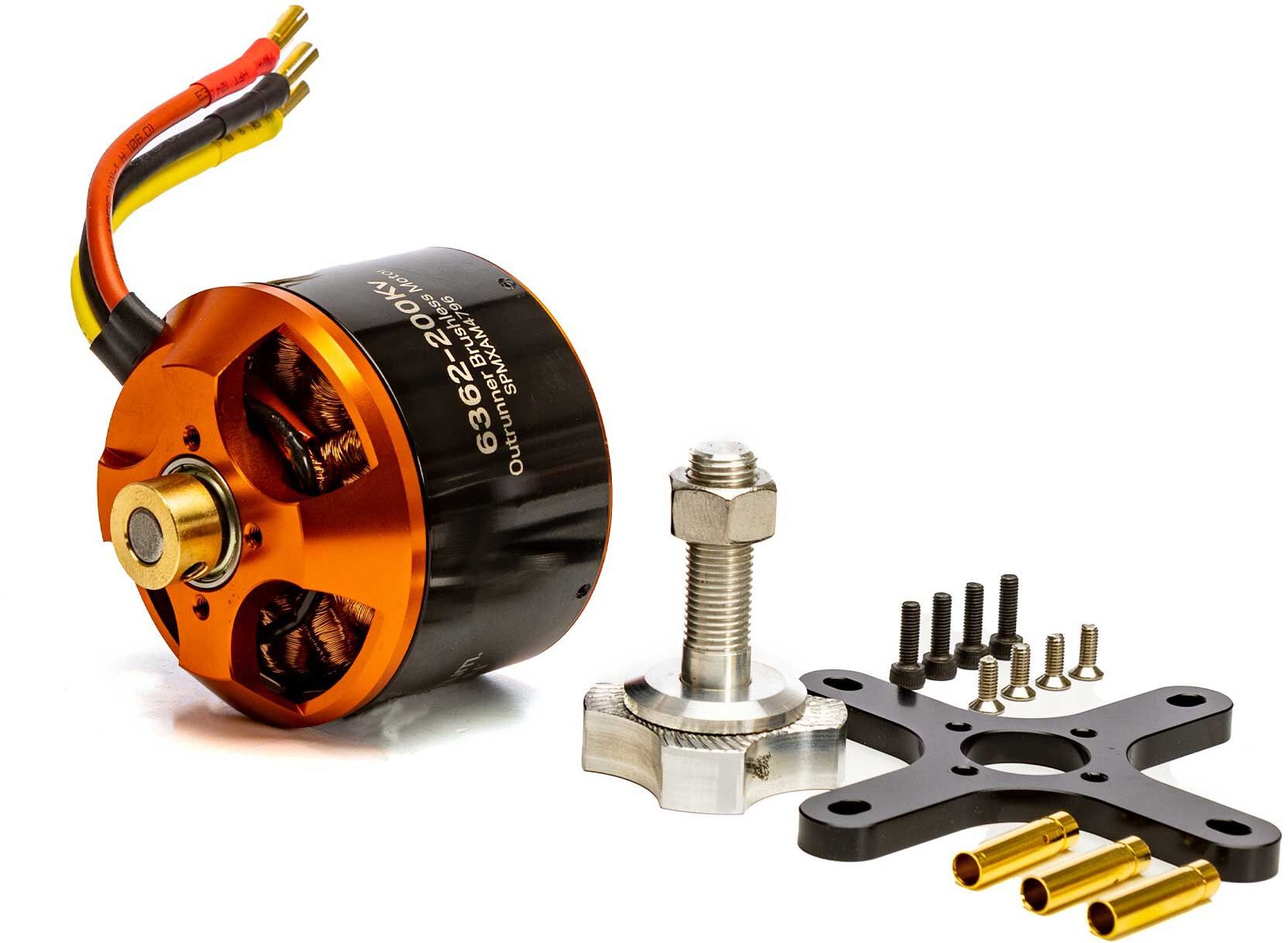

Consists of all required hardware: preinstalled gold-plated bullet connectors, aluminum motor install, prop adapter and female ESC connectors

Perfect match for the Spektrum Smart Bird 120 amp HV ESC

Perfect electric conversion upgrade for 30cc size gas combustion power systems running 12S LiPo power





Important Specifications

Advised Voltage Range – 33.3 - 44.4V / 9-12S LiPo

Advised Prop Range – 16x8 to 19x10 Electric Prop

Advised Model Flying weight – 3D 5445g (12 pounds) - Sport 9070g (20 pounds)

Max Wattage – 1900w

Max Current – Max Burst Amps (100A) Max Continuous Amps (60A)



Specifications

Application: Plane

Bearing: Yes

Connector Type: 4mm Bullet

Forward: Yes

Input Voltage: 33.3 - 44.4V / 9-12S LiPo

Maximum Burst Current: 77A

Maximum Continuous Current: 48A

Motor Size: 6362-200Kv Brushless Outrunner

Motor Type: Brushless - Outrunner

Variety of Poles: 14

External Diameter: 2.5" (64 mm)

Item Length: 2.4" (61 mm)

Item Weight: 22.4 oz (635 g)

Advised Prop Range: 16x8 to 19x10 Electric Prop

Advised Speed Control: Bird 120 Amp Brushless Smart ESC

RPM/Volt (Kv): 200Kv

Shaft Diameter: 0.375" (10 mm)

Shaft Length: 1.41733" (36 mm)

Speed Control: Sold Separately
