Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The mix of superior efficiency, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next airplane project. Plus, the broad choice suggests there's Avian Brushless motor that's ideal for whatever the application, consisting of brushed-to-brushless upgrades along with combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Innovation geared up models!





Key Advantages

Rapid Velocity and Extreme Torque: Skillfully crafted to deliver quick, smooth and exact velocity and power.

Reliable and Virtually Maintenance-free: Equipped with double-shielded sealed bearings, accuracy well balanced motor bell and gold-plated bullet connectors.

Excellent Cooling: Engineered to help airflow relocation through the motor for efficient cooling during and after flight.





Features

Lightweight design

Effective and resilient Rare-Earth Neodymium magnets

14-pole stator for smooth and exact propulsion

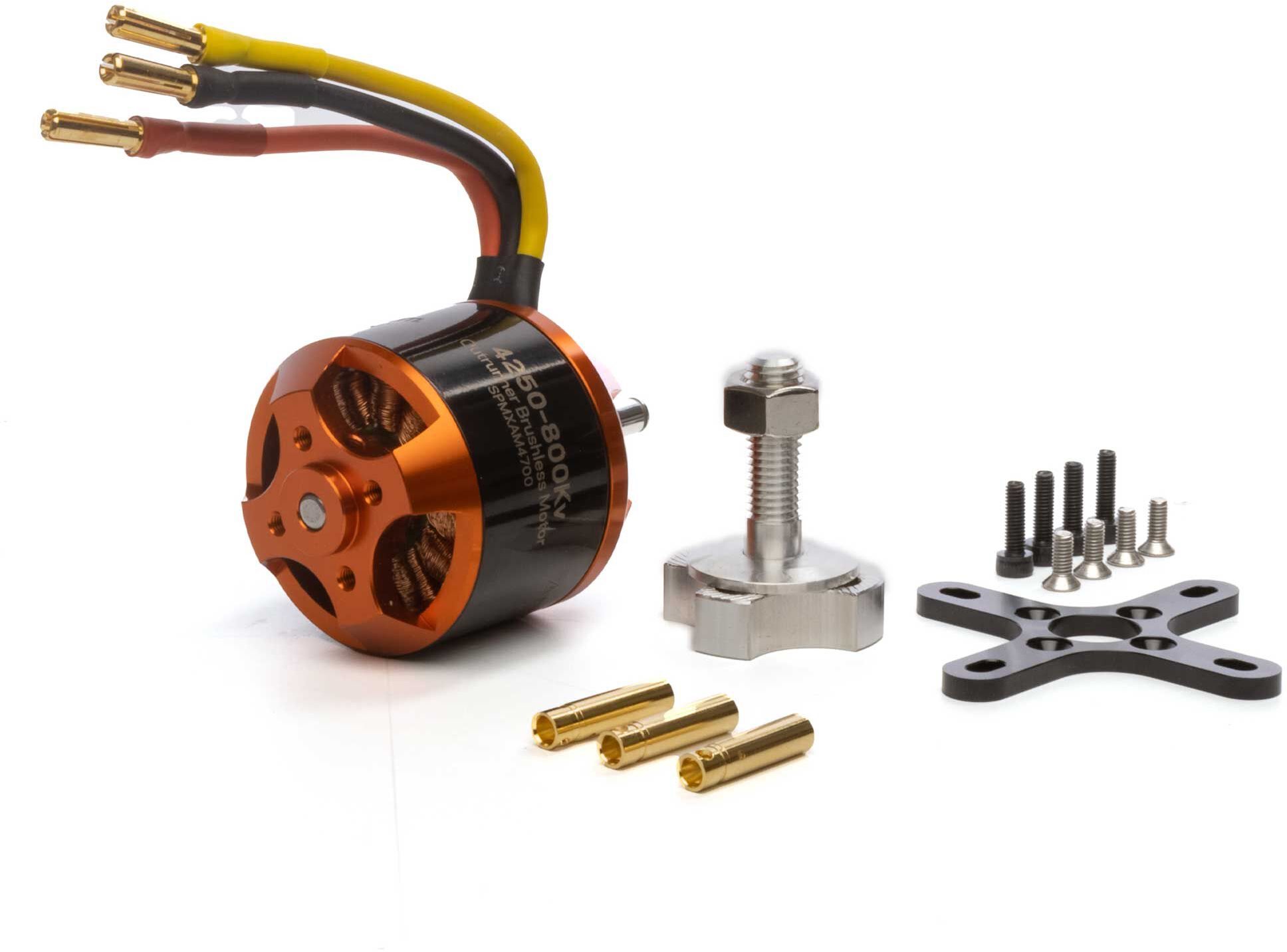

Includes all needed hardware: preinstalled gold plated bullet ports, aluminum motor install, prop adapter and female ESC ports

Perfect match for the Spektrum Smart Avian 45 amp ESC

Perfect electric conversion upgrade for .32 size radiance combustion power systems





Essential Specs

Suggested Voltage Variety – 11.1-14.8V / 3-4S LiPo

Suggested Prop Variety – 12x6 to 13x8 Electric Prop

Suggested Model Flying weight – 3D 1845g (4 lbs)
- Sport 2950g (6.5 lbs)

Max Wattage – 600w

Max Current – Max Burst Amps (50A) Max Continuous Amps (45A)



Specifications

Application: Sport airplanes up to 6.5lbs (2950g) and 3D airplanes up to 4lbs (1814g)

Adapter Type: 4mm Bullet

Input Voltage: 11.1-14.8V (3-4S LiPo)

Maximum Burst Current: 1480W

Maximum Continuous Current: 925W

Motor Type: Brushless

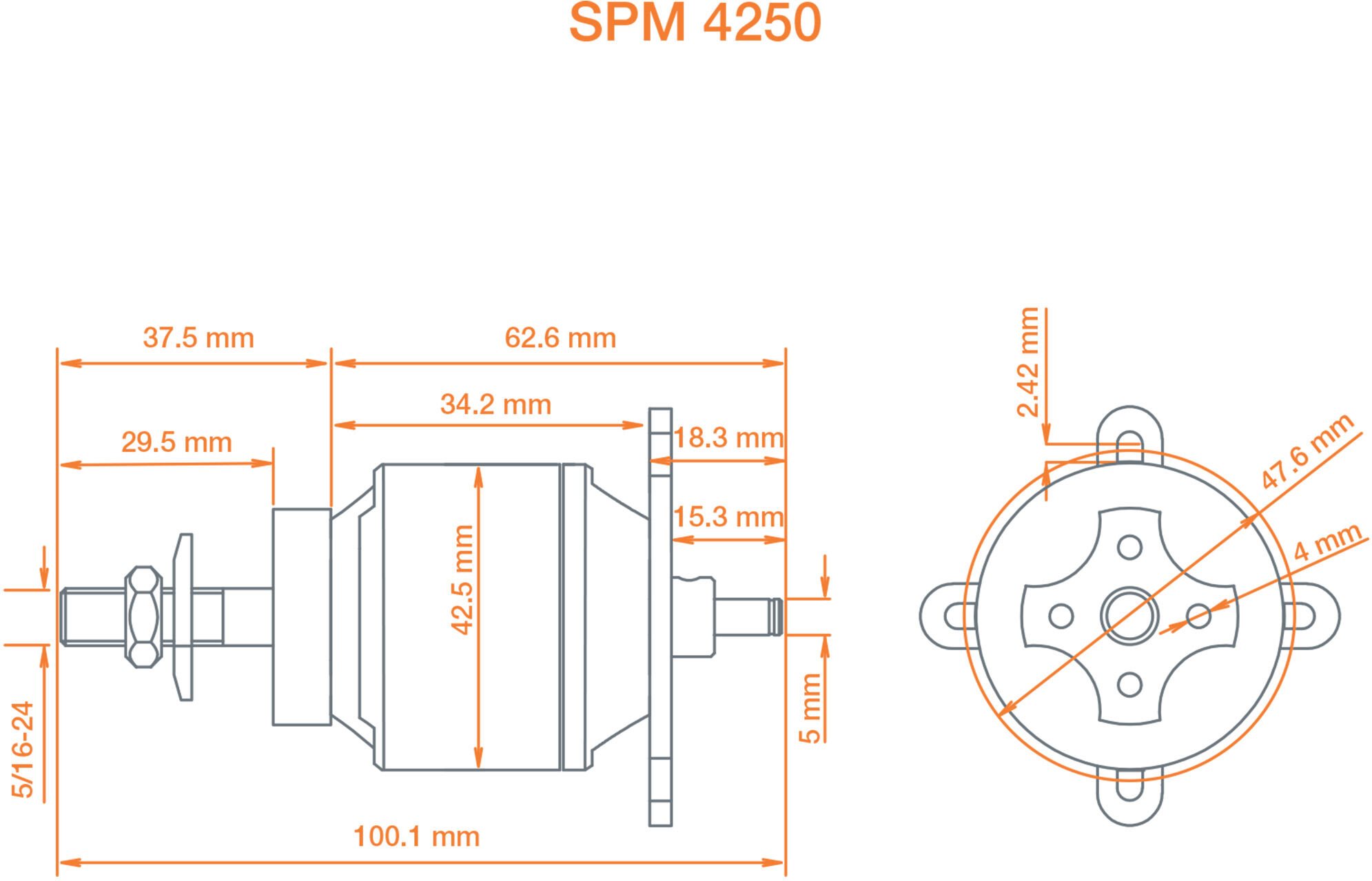

External Diameter: 1.7" (43 mm)

Product Length: 2" (51 mm)

Product Weight: 7oz (198g)

Suggested Prop Variety: 12x6 - 13x8 electric

RPM/Volt (Kv): 800

Shaft Diameter: 0.2" (5 mm)

Shaft Length: 0.67" (17 mm)
