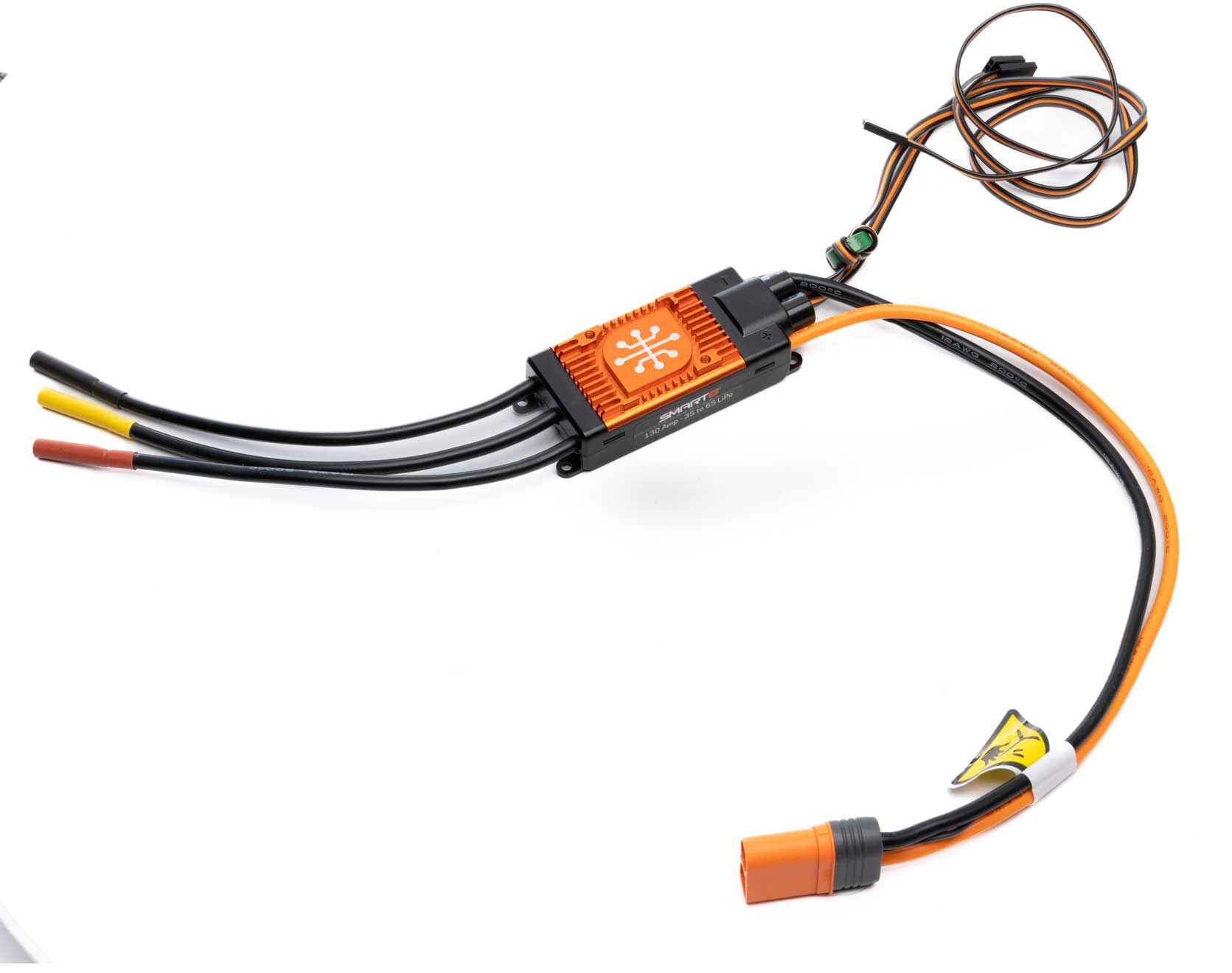

Spektrum Avian 130A Brushless Smart ESC 6S Ver:A

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



SPMXAE1130A Specs

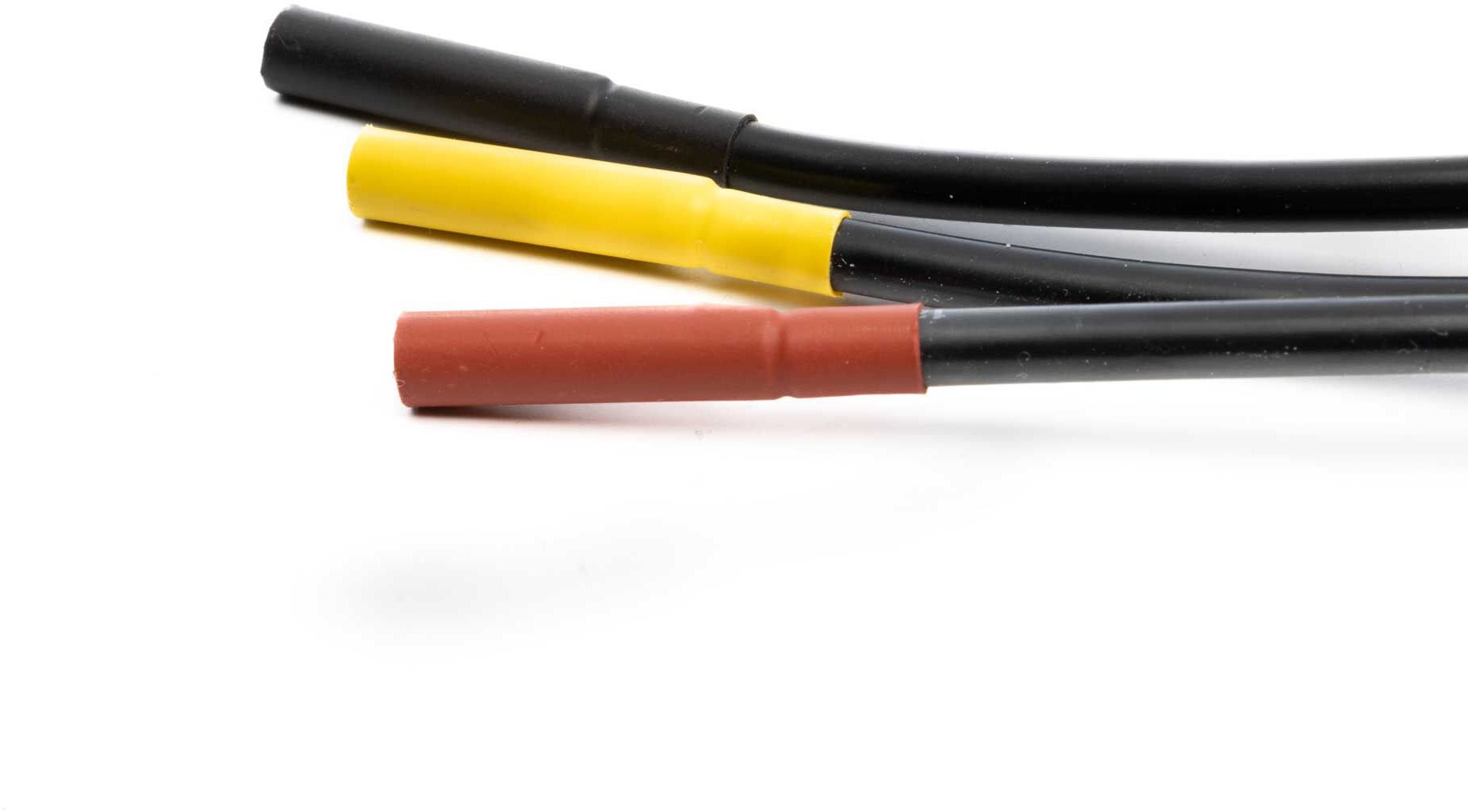

Motor Output Leads: 5.12 in (130mm) 12AWG with 4.0mm bullet port

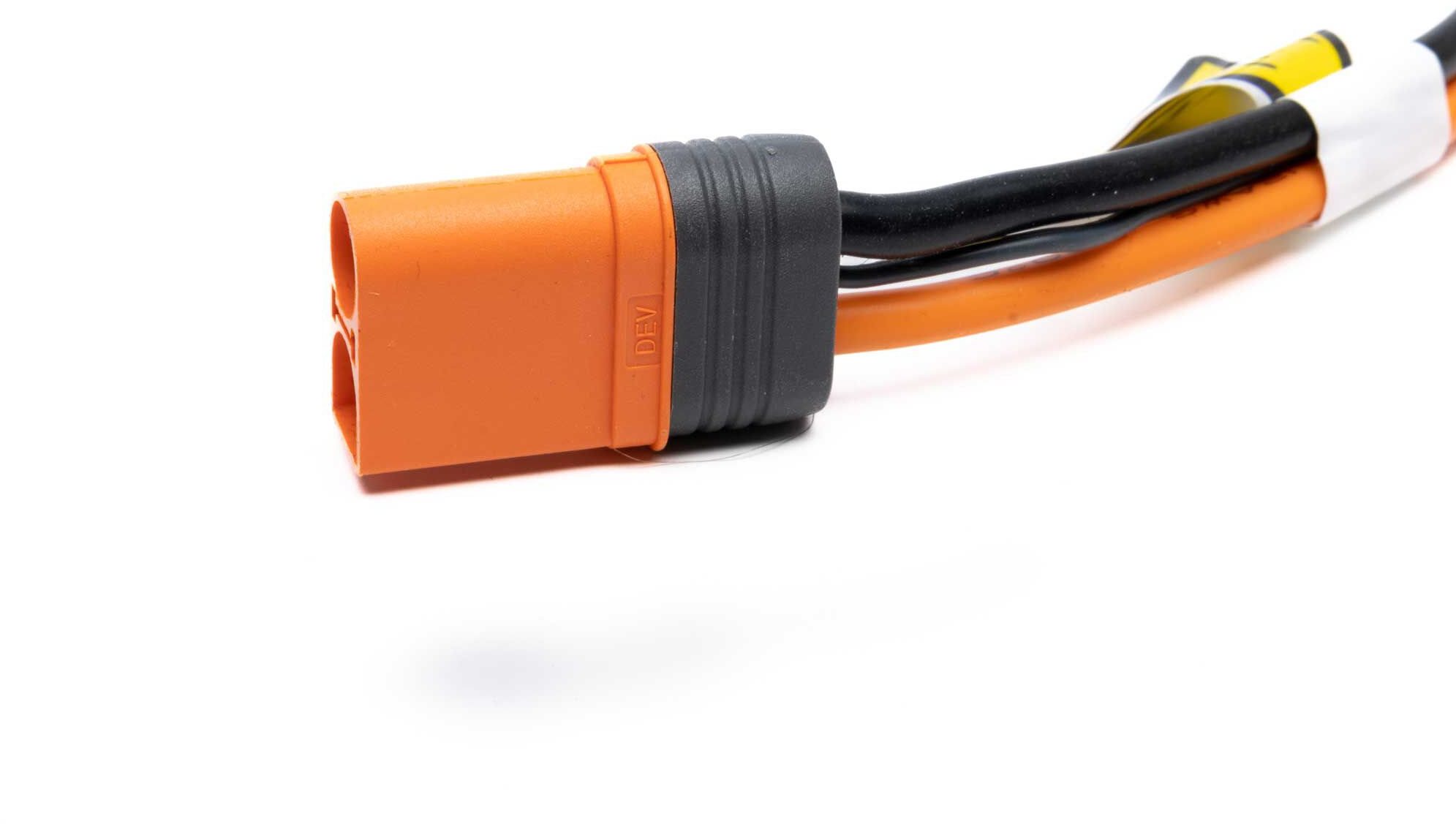

Battery Input Leads: 15.75 in (400mm) 12AWG with IC5 port

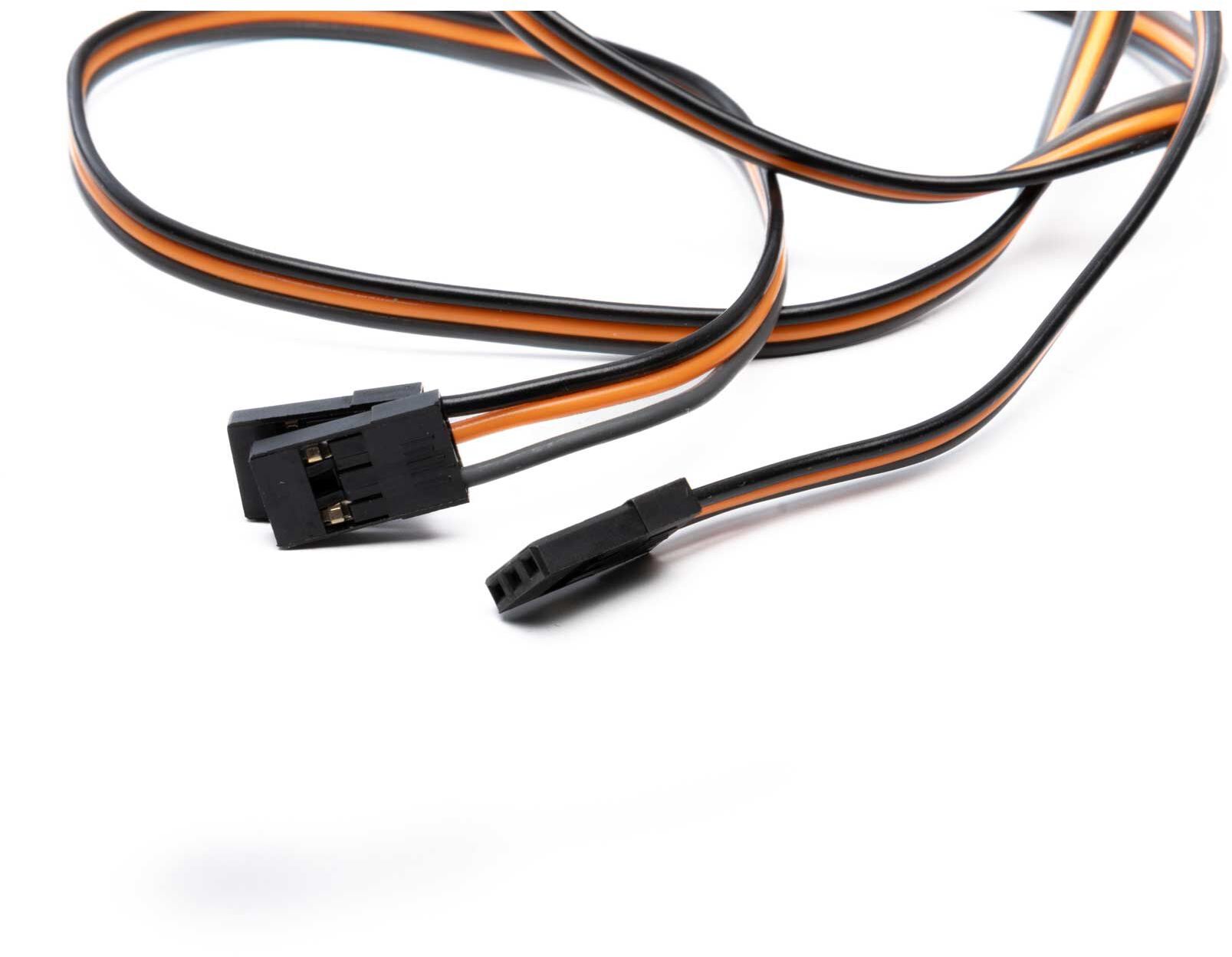

Throttle Lead: 17.71 in (450mm) standard gauge with servo port





Item Features

Smart all-in-one telemetry

Fast, powerful 32-bit ARM M4 processor

Numerous options for easy shows:

Smart ESC Programming Box

SmartLink USB Updating and Developer application

Throttle stick shows

Multi-point security:

Over-current security

Automatic LiPo low-voltage cutoff

Thermal security

Failsafe security

Developed and designed by Spektrum™ engineers, in partnership with the market's leading ESC producer

Compact for easy installation in most applications

All set to set up — no soldering needed

Rugged plastic case

Heat dissipating style

Tabs consisted of for a tough mount

Aluminum heat sink for high efficiency

Adjustable high-power BEC

Double BEC power adapters

Firmware updatable through the Smart ESC Programming Box and SmartLink PC application

High heat-resistant IC™ adapters, backwards suitable with EC™ adapters

Minimal 1-year service warranty





Item Summary
Like every element in the Spektrum™ Smart ecosystem, Avian™ Smart ESCs integrate "plug-and-play" simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your airplane imaginable.
Avian Smart Air ESCs do a lot more than manage power. They function like a virtual engineer inside your model, providing a direct course to the crucial operating information you require to reach peak performance. Avian Smart Air ESCs provide you an extra layer of self-confidence that your electronics are all running at their best.
With Avian Smart Air ESCs, you'll be better connected to your airplane than ever before — without installing additional components that all work separately of each other. You will not require additional wires, modules, or links. A Bird electronic speed control supplies a one-wire solution for obtaining telemetry information such as existing, voltage, cell balance, temperature level and RPM.
Avian ESCs not just gather the information but also send it to your transmitter in real time, rather of just saving it for after-run research study. You're able to change settings as required to improve performance on the go. The Avian Smart single-wire telemetry solution has been tested for quality and performance by the best brand names in RC. Their verdict? Smart technology is both simpler and remarkable!










Spektrum™ Smart Innovation










One-Wire Telemetry
No requirement to connect several wires, sensors, modules, and links. With Avian™ ESCs, easy one-wire telemetry transfers a large range of information directly to your transmitter in real time, including existing, voltage, cell balance, temperature level and RPM.








EC3™/EC5™ In Reverse Compatible
Avian™ ESCs include IC™ series battery adapters. The IC series of adapters are designed from the ground up to offer a more strong connection, greater heat resistance, and uncomplicated installation. When used with an IC3™ or IC5™ connector-equipped Spektrum™ Smart battery, the ESC can receive and transfer battery telemetry information. EC3™ and EC5™ adapters are also suitable with Avian ESCs for fundamental operation and ESC telemetry.




Smart Innovation Battery Data
When used with a Spektrum™ Smart LiPo battery, your Avian™ ESC supplies you with the benefit of battery telemetry that's immediately transmitted to your radio in real time. On your transmitter screen you'll exist with valuable info such as number of cycles, battery percentage, individual cell voltage and more!








Numerous Programming Options
Numerous shows options are readily available. Throttle stick shows can be used with absolutely nothing more required. Utilizing the Smart ESC Programming Box, you can quickly change settings at the field to suit flying conditions. A user friendly Smart Link USB Updating and Developer app is also readily available.




Fast, Powerful M4 Processor
The Avian ESCs' 32-bit M4 processor produces greater resolution signal input and more precise motor output.




Requirements

Auto Cutoff: Yes

Battery Input Lead: 15.75 in (400mm) 12AWG with IC5 port

BEC: Yes

BEC Continous Current: 8A

BEC Maximum Burst Current: 25A

BEC Type: Change

BEC Voltage: 6V/7.4V/8.4V adjustable

Brakes: Yes

Forward: Yes

Input Voltage: 3S - SIX LiPo

Low-Voltage Cutoff Programmable: Yes

Maximum Burst Current: 120A

Maximum Continuous Existing: 100A

Motor Output Lead: 5.12 in (130mm) 12AWG with 4.0mm bullet port

Item Height: 1.3" (33 mm)

Item Length: 3" (76 mm)

Item Weight: 4.4oz (126g)

Item Width: 1.4" (36 mm)

Programmable: Yes

Reverse: No

Innovation : Smart
