Spektrum AR14400T 14 Channel PowerSafe Telemetry Receiver

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Features

Patented PowerSafe™ redundancy system with double 13 AWG battery leads with IC3 connectors. Perfect for power starving airplane and high present servo applications drawing up to 35A (50A max burst)

Forward programming permits easy modifications to failsafe settings, servo frame rate settings and more

Micro USB port for easy item registration and firmware updates

12V capable for usage with 12 volt servo applications (must be triggered by means of Forward Configuring)

Integrated battery capability screen instantly reports the battery capability utilized during flight and can reset instantly when completely charged batteries are installed

Integrated Black Box telemetry log saves all telemetry data instantly when a Micro SD card is installed (Micro SD card not consisted of)

Integrated status LED offers handy details during launch, cautions and mode indications

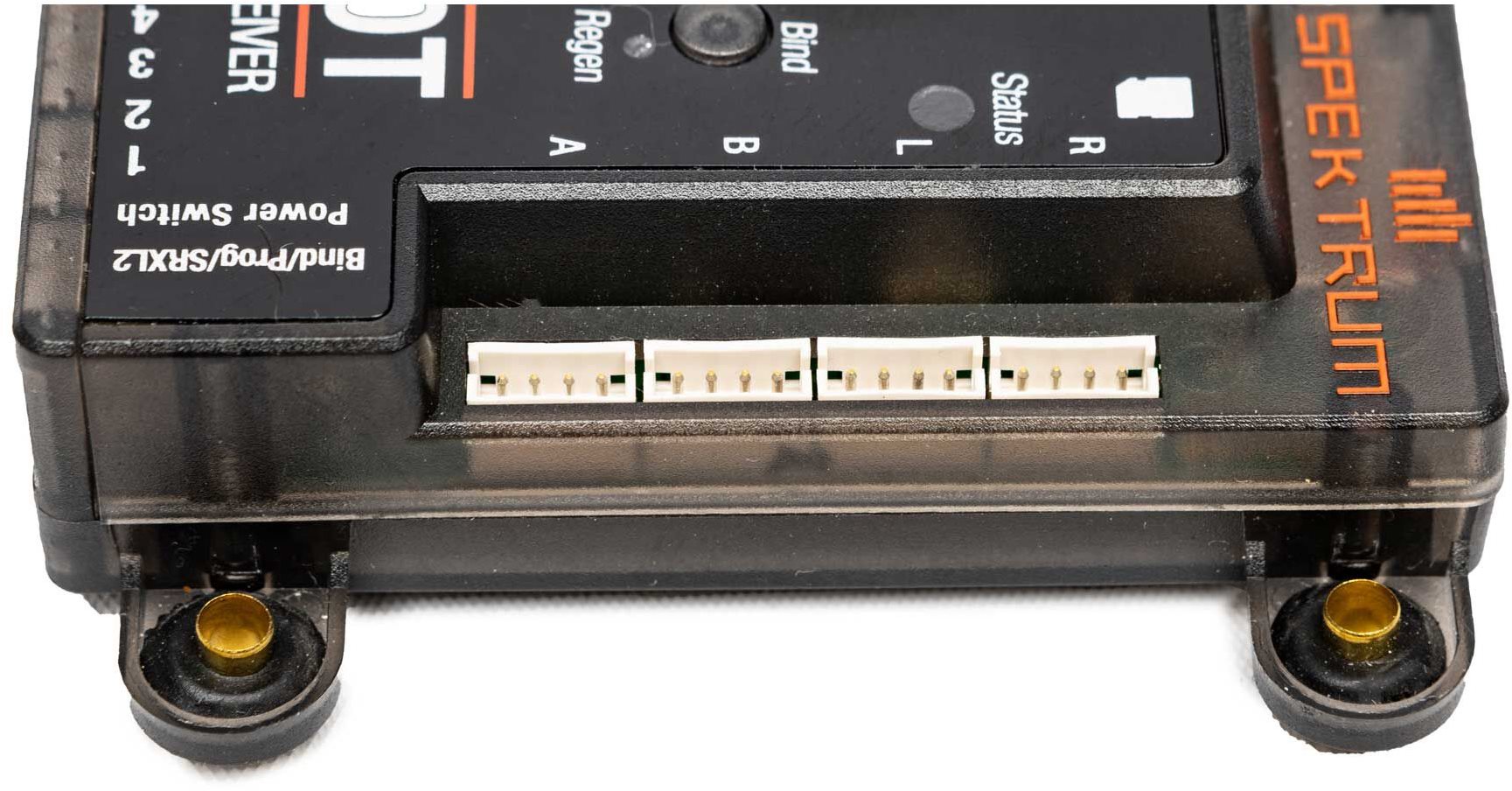

SRXL2 connection for easy, one wire connection to supported devices

Ready to utilize with Spektrum Smart ESC for one-wire telemetry data without the need of modules, links and wires

Receiver pack energy & voltage sensor and flight log telemetry data readily available without the need for extra sensing units

Complete variety telemetry with incorporated barometer to provide altitude and vario telemetry without extra modules

Included Soft Switch allows servo present to be routed around the switch, so if the switch fails for any factor, power to the system will not be interrupted.

Rubber grommet difficult mounts and minimalistic labeling assists produce the cleanest model setups

Efficient in high-speed 11ms frame rates

Binding is easier than ever with four options to initiate the bind process

Integrated telemetry with constructed-in|integrated} ports for RPM, flight pack voltage, temperature sensing units and X-bus for telemetry sensor expansion

Suitable with all Spektrum DSM2 and DSMX transmitters

Not suitable with Spektrum AS3000 Stabilization Module

Not suitable with DSM2 AIRMOD JR Module (SPMMSJR720)





Overview

The Spektrum™ AR14400T PowerSafe™ receiver is a feature-packed 14 channel receiver with incorporated full-range telemetry. Spektrum PowerSafe receivers are created for designs using various servos and devices that draw excess present such as those discovered on giant-scale airplanes and jet designs. They include a robust power bus created to manage high-current loads, along with double 13AWG battery input leads with IC3™ connectors for usage with bigger battery packs. This makes it possible to support high-current systems directly through the receiver without the need for a different power distribution system.

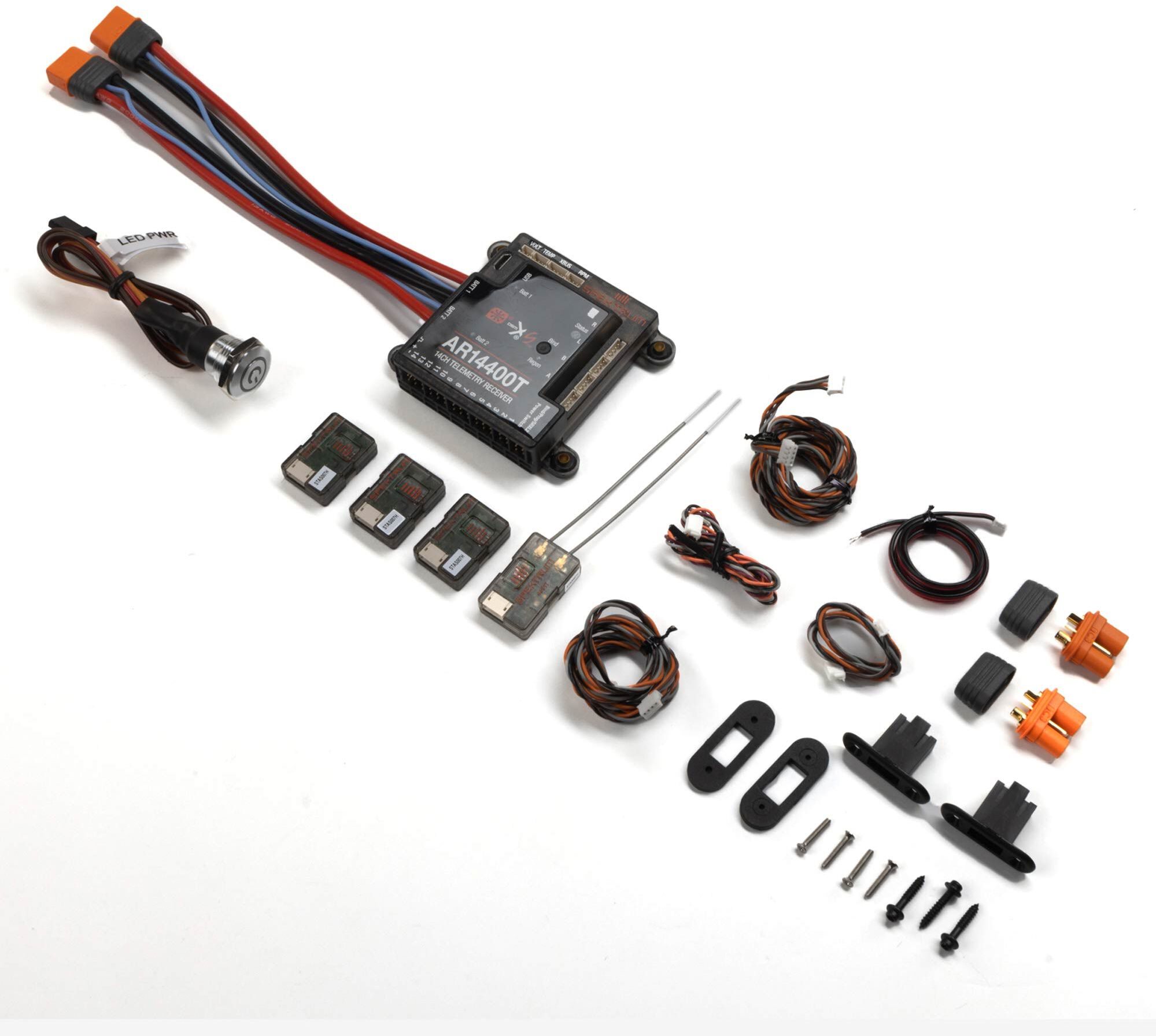

If you have a DSMX®/DSM2® transmitter efficient in 11ms frame rates, the AR14400T will provide lightning-fast input-to-output reaction that is best for high-performance applications such as aggressive 3D , IMAC, and Turbine airplanes. Each receiver includes 4 SRXL2 remote receivers that maximize Spektrum MultiLink™ technology. This patented technology removes the reflected signal fading and antenna blind spots that can affect all 2.4GHz systems, helping guarantee a strong connection between you and your aircraft.

As an added step of security, the Spektrum created the AR14400T receiver with a proprietary soft switch. Permitting servo present to be routed around the switch, so, should the switch stop working for any factor, power to the system will not be interrupted.

A ground-breaking feature on the AR14400T PowerSafe Receiver is the integrated receiver battery energy sensing units; offering pilots included awareness of the load and mAh utilized by the servos, retracts, lights, and so on. utilized by each battery.

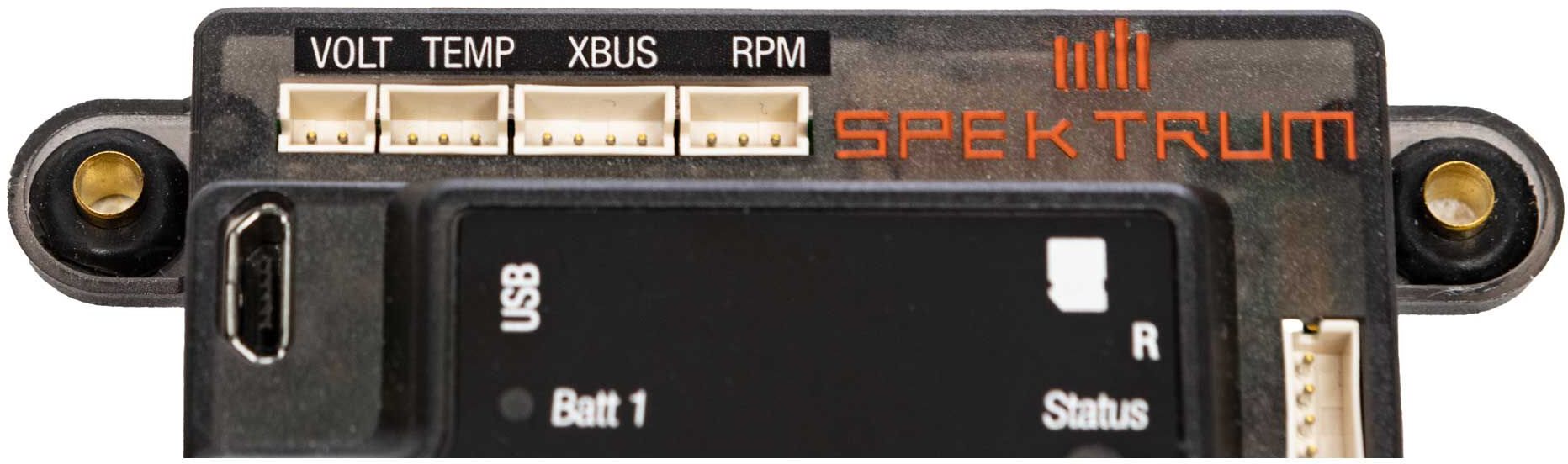

Each featured integrated connection ports for RPM, Flight Pack Voltage and Temperature sensing units along with an X-Bus port for extra telemetry options.









Patented PowerSafe™ Redundancy System

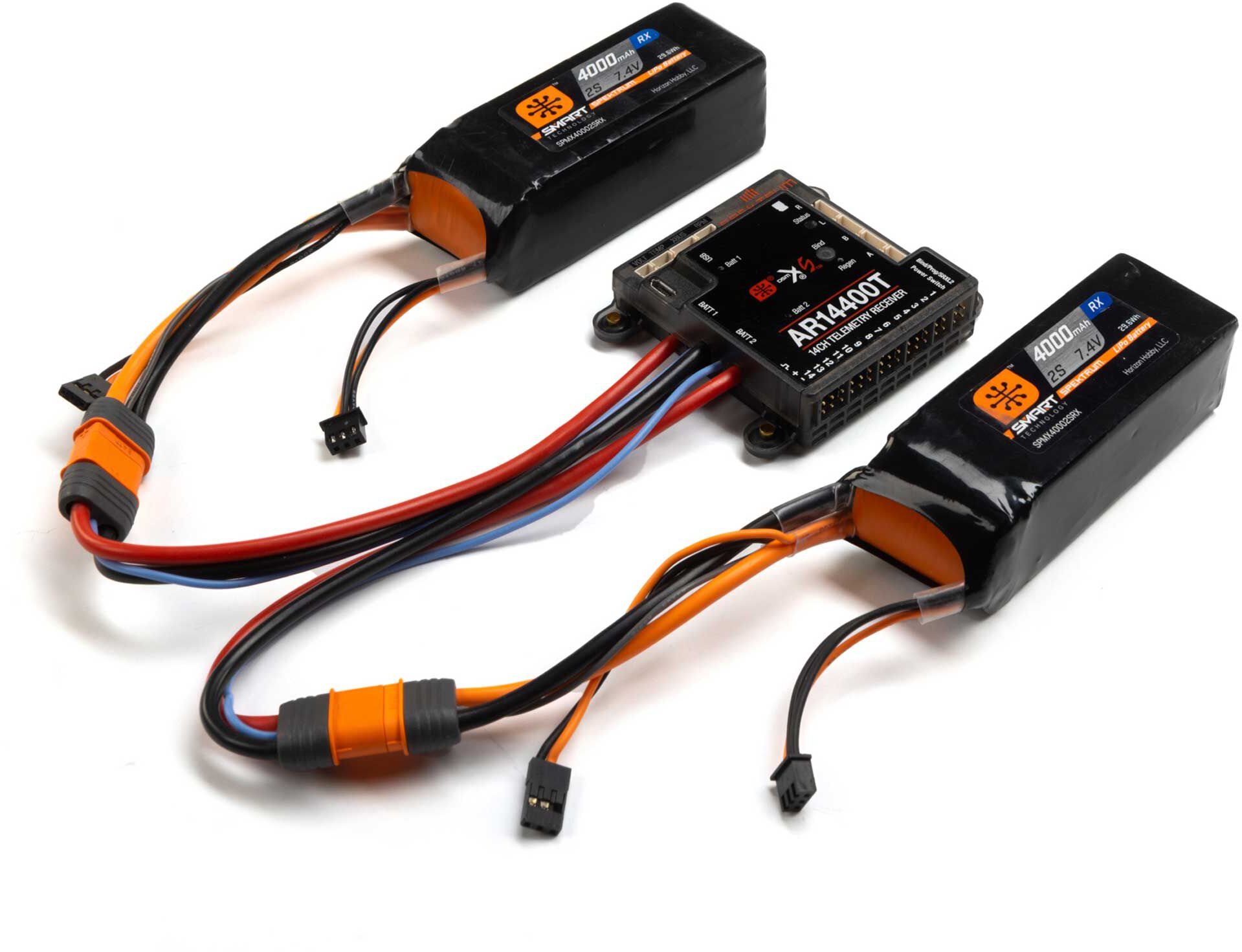

The Spektrum™ AR14400T is the supreme solution for powering high-current draw radio systems. In airplane with several high-current draw servos (e.g. giant-scale airplane, jets, and so on.), PowerSafe redundancy skillfully manages power between both connected receiver batteries with Real double battery redundancy. Each battery is separated and if one fails/shorts the other seamlessly takes control of.




Innovative Battery Capacity Monitor
The PowerSafe receivers include double battery capability monitoring through telemetry when utilized with Spektrum AirWare™ transmitters. Trigger the Automobile Config function on the telemetry page in your transmitter to display the capability taken in by the receiver. The capability utilized is saved flight to flight and includes till reset. The capability can be instantly reset when the battery is charged, permitting easy battery capability tracking.








Integrated "Black Box" Telemetry Logging
When a micro SD card is placed into the receiver, during operation, flight details will be logged onto a file on the card consisting of flight log data, battery status and other telemetry data saved in time. If not deleted, older data logs taped will be deleted, keeping the most current logs. This can be a handy tool to evaluate flight data in time which can be handy for medical diagnosis of efficiency.




Forward Programmable
You can set up the AR14400T receiver wirelessly, straight from any suitable Spektrum™ transmitter, through the Forward Shows menu. No separate computer system or mobile phone is required for setup and modifications.








Micro USB Port

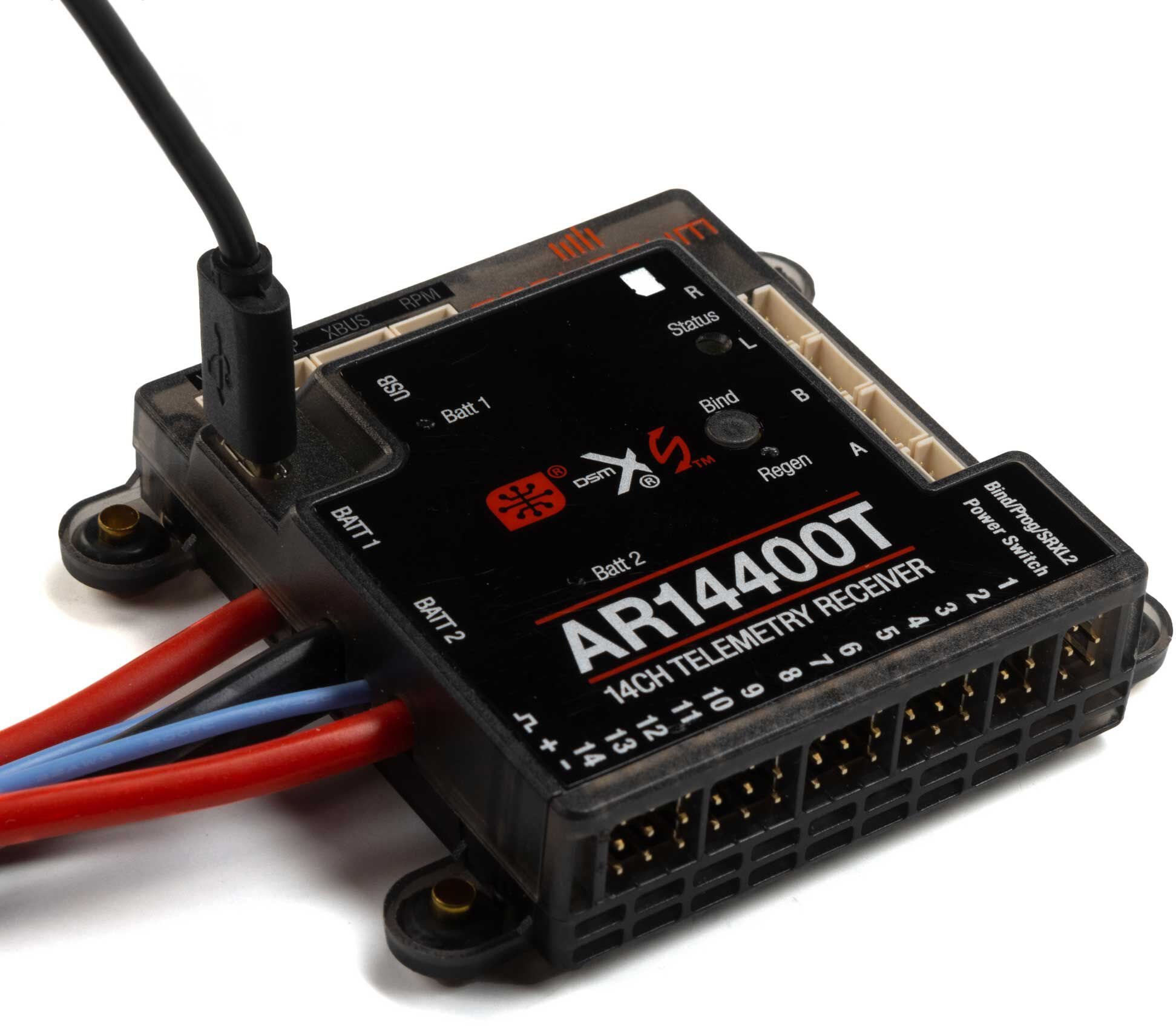

A user-friendly Micro USB port is built into the receiver for easy access to firmware updates by means of the Spektrum PC Programmer Application.




Integrated Barometer
The Spektrum™ AR14400T receiver features an integrated barometer (integrated pressure sensor) to provide altitude and vario telemetry data without the need to purchase extra sensor modules.








Status LEDs
The Status LED will offer details about the status of the receiver and offer alerting codes if there is an issue or condition found: Distinguish codes/modes by flashing count.
White Blinking/Breathing - Initializing, not ready to fly

Red - Failure, failure where you can't fly. Examine power or RF.

Two blinks - 3S Power Detected/Protection engaged

One blink - No remote found in port A or not adequate remotes found, require at least 2 remotes connected and one must be in port A.

Solid Blue - Ready (with tape-recording). Ready to fly recording with SD card

Strong Green - Ready (without recording). Ready to fly, not tape-recording to an SD card.





Expansive Telemetry Options
In addition to the incorporated telemetry sensing units, the AR14400T supports an expansive list of Spektrum telemetry sensing units and 3rd celebration telemetry devices. Quickly add effective telemetry data tools to your model such as GPS, Airspeed Sensors, Engine RPM and Turbine ECU telemetry from supported jet turbine controllers.






Requirements

Application: Air

Band: 2.4GHz

Bind Approach: Bind Button

Channels: 14

Information Port: No

Failsafe: Yes

Flight Log Compatible: No

Input Voltage: 3.5-12.6V

Modulation: DSMX/DSM2

Product Height: 0.67" (17 mm)

Product Length: 2.6" (66 mm)

Product Weight: 2.8 oz (80g)

Product Width: 2.2" (56 mm)

Range: Complete

Resolution: 2048

Telemetry: Yes
