Features

Compatible with all Spektrum DSM2 and DSMX transmitters

Compact footprint fits most parkflyer size, sport class and giant scale models

Functions complete range telemetry, integrated barometer to offer elevation and vario telemetry information without the requirement of additional sensing units

VOLT, RPM and TEMPERATURE telemetry ports can be used with conventional Spektrum Telemetry Sensors

XBUS telemetry port for expandable telemetry capabilities, like GPS, Air Speed, Flight Battery Energy and more

Micro USB port for easy registration and firmware upgrading ability

Bind button permits easy binding and eliminates making use of bind plug

Two external antennas will ensure safe and secure RF coverage from all angles of the aircraft

Additional RF path redundancy with up to 2 additional SRXL2 Remote Receivers, SPM9747 or SPM4651T, offered individually

Prepared to use with Spektrum Smart ESC for one-wire telemetry information without the requirement of modules, links and wires

End pin output pins for easy and compact setup

Forward Programming capable for setting individual failsafe parameters per channel and more





Overview

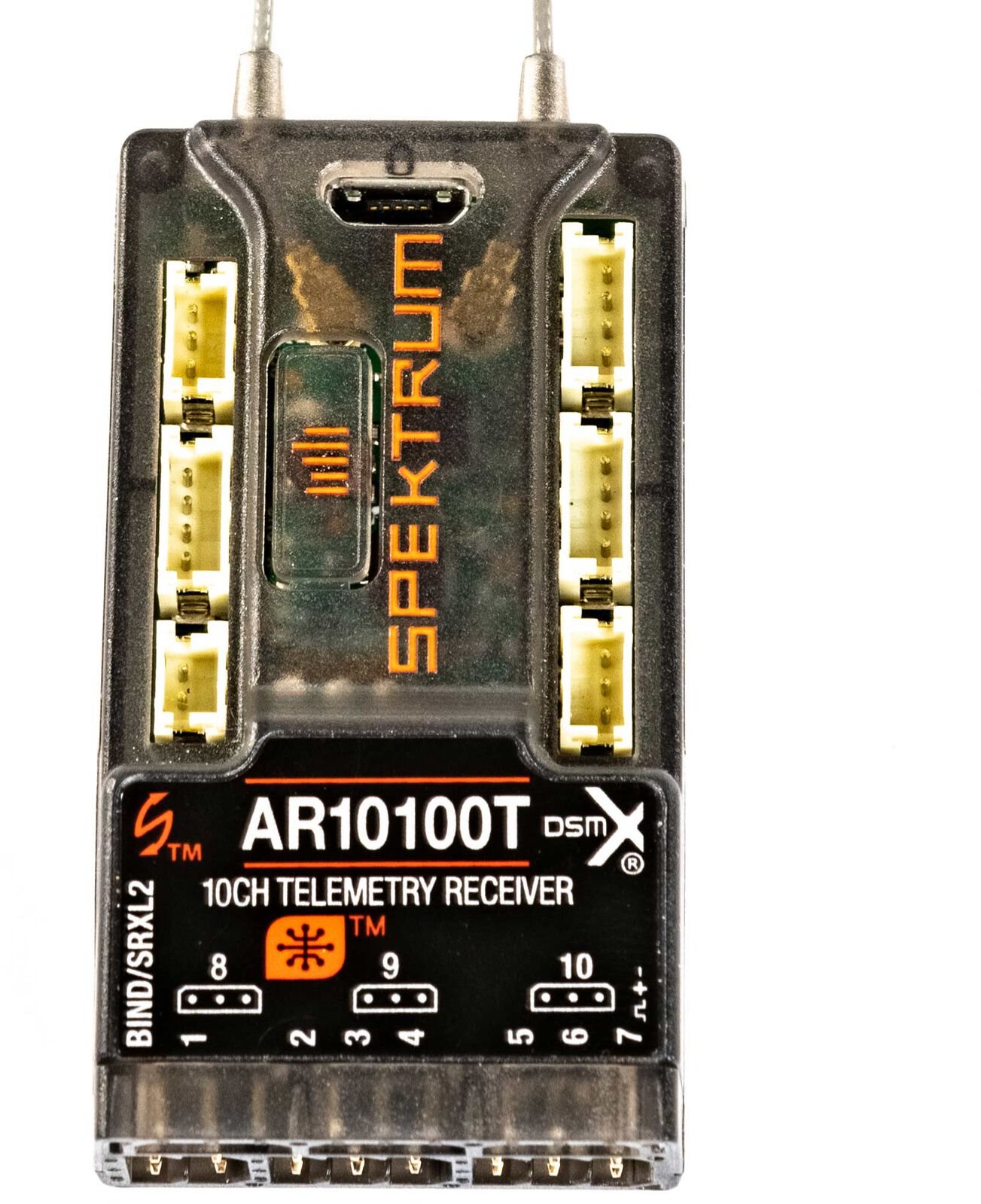

The Spektrum AR10100T 10 Channel Receiver is a DSM2® and DSMX® capable receiver with a compact footprint to suit a vast array of aircraft. It includes a full range telemetry, integrated barometer to offer elevation and vario telemetry information without additional purchase. Consisted of XBUS and temperature ports can be used to add additional telemetry sensing units available individually. A user-friendly Micro USB port is built into the receiver for easy access to firmware updates by means of the Spektrum PC Developer Application. The AR10360T It likewise includes 2 SRXL2 ports for added SRXL2 Remote Receivers (SPM9747 or SPM4651T), available individually, to add additional RF path redundancy. An SRXL2/Bind servo header is available to connect wise gadgets, bind with a traditional bind plug, or connect a battery. The AR10100T likewise includes a bind button for easy binding with no plugs essential and provides both SmartSafe'" innovation and Hold Last in addition to predetermined failsafe types set through forward programming. Also, the throttle port is Smart ESC suitable right out of package.







SMART TELEMETRY
To enjoy the complete benefits of Smart™ innovation, use the AR10100T receiver with a Smart ESC and telemetry capable Spektrum DSMX® transmitter. Important telemetry information such as existing, voltage, temperature and RPM is sent directly to your transmitter in genuine time.




INTEGRATED BAROMETER
The Spektrum™ AR10100T receiver includes an integrated barometer (integrated pressure sensing unit) to offer elevation and vario telemetry information to your telemetry capable Spektrum Transmitter, without the requirement to acquire additional sensing unit modules.




Requirements

Antenna Length: 7.32" (186 mm)

Band: 2.4GHz

Bind Approach: Bind Button

Channels: 10

Information Port: Yes

Measurements: 55 x 30 x 15mm (2.16 x 1.18 x 0.59 in)

Failsafe: Yes

Input Voltage: 3.5V–9V

Modulation: DSMX/DSM2

Product Weight: 18g

Programmable: Yes

Variety: Full

Telemetry: Yes

Waterproof: No
