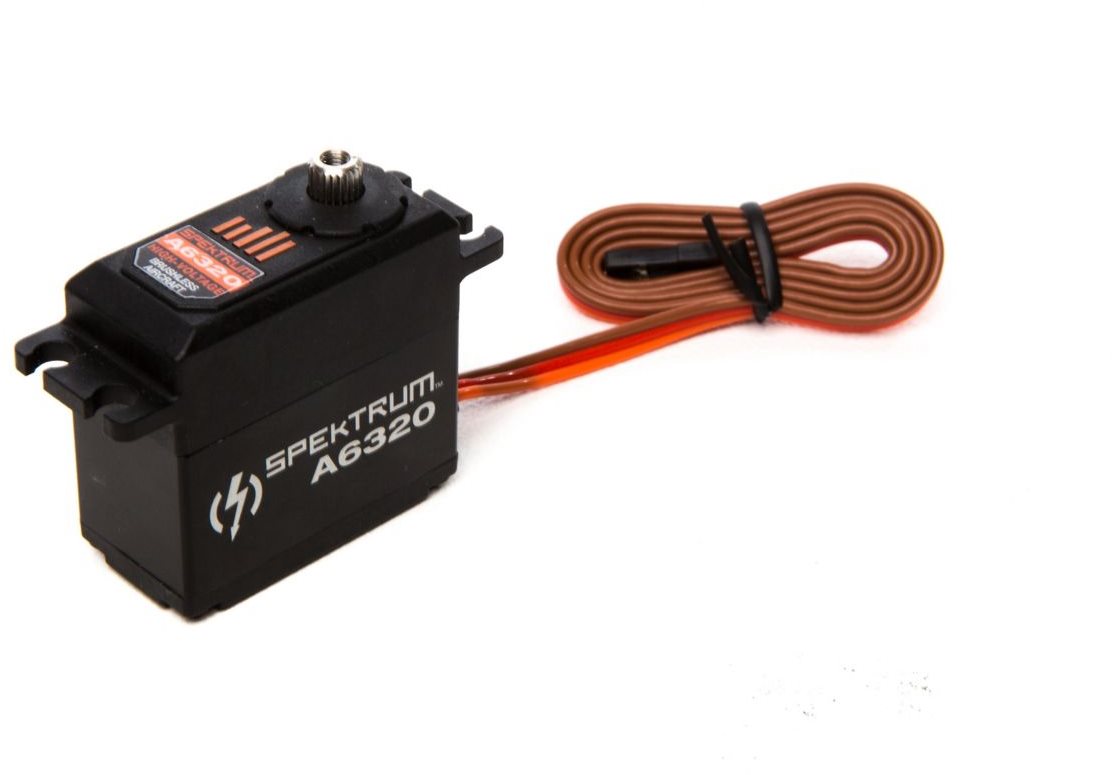

Spektrum A6320 High Torque High Speed Metal BL HV Servo

Overview

 Features
•High Voltage (HV) capable (6.0-8.4v input variety)
•Outstanding torque and speed in a basic servo size (270 oz-in and .10 sec/60° @8.4v)
•Resilient and long lasting brushless motor
•Low wear and securely fit together all metal gear train
•Double bearing supported drive train helps maximize smooth operation
•Aluminum center servo case helps keep running temperatures low
•Soft start helps avoid component and airframe damage during un-intentional initializations
•Over Present and Temperature level defense
•Useful initialization start tone lets pilot know when the servo is ready
•Integrated servo failsafe holds last known position if signal is lost and power is kept
•Frequency : 50-400hzSpektrum™ high-voltage, brushless servos deliver trustworthy power and digital precision with remarkable performance. Carefully tuned electronic devices and software integrate with powerful brushless motor innovation to provide ultra-smooth efficiency more efficiently than servos with conventional motors. The aluminum center area enables any heat within the servo to dissipate quickly while high-strength metal equipments and high-impact polymer case components deliver an accuracy instrument that’s problem-free.The Spektrum A6320 utilizes this strong foundation to achieve an outstanding balance of power, speed and value, plus the peace-of-mind over-current and over-temperature defense offers. It’s a brilliant function combination that makes this servo an outstanding option for applications such as 30-50cc size 3D aerobatics, giant-scale or high-speed jets.

Specifications

Type: Digital
Torque: 150.0 oz-in (10.8 kg-cm) @ 6.0V; 250.2 oz-in (18.0 kg-cm) @ 7.4V; 270.1 oz-in (19.5 kg-cm) @ 8.4V
Speed: 0.11 sec/60 deg @ 6.0V; 0.10 sec/60 deg @ 7.4V; 0.10 sec/60 deg @ 8.4V
Length: 37.8mm (1.49in)
Width: 20.0mm (0.79in)
Height: 40.0mm (1.57in)
Weight: 2.2 oz (62 g)
Bearing: Double
Motor Type: Brushless
Gear Type: Metal
Voltage: 6.0-8.4V
