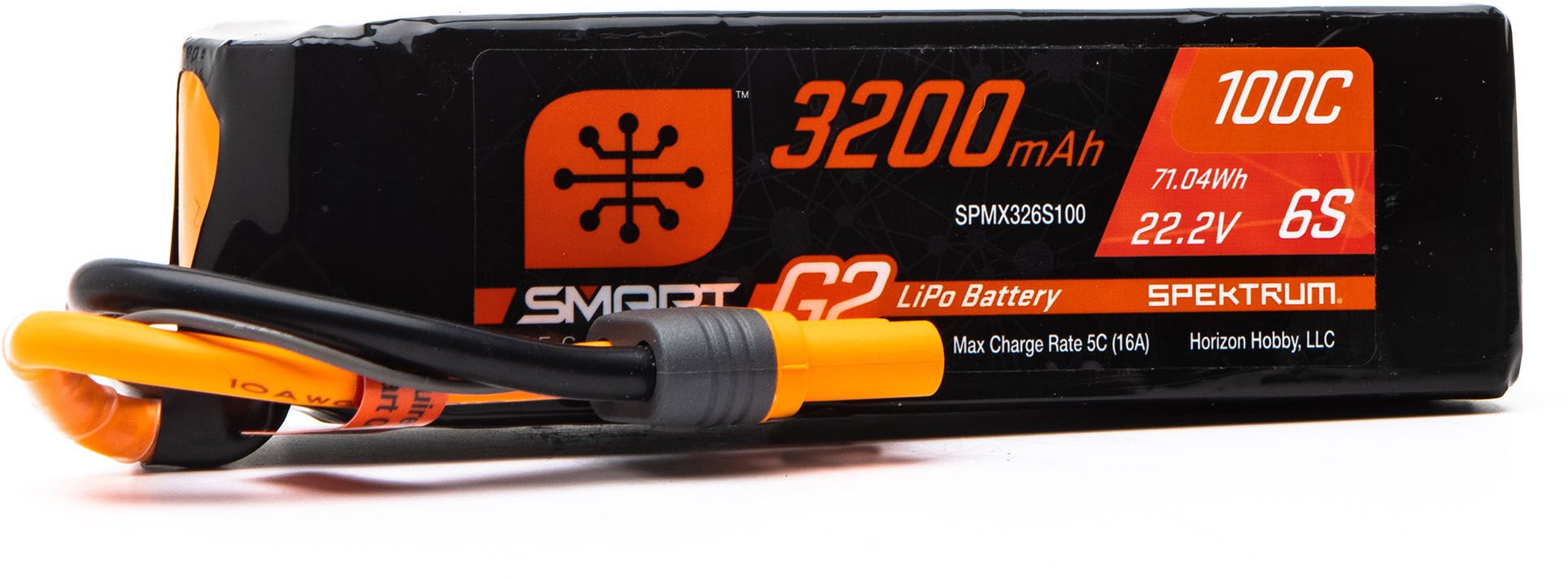

Spektrum 3200mAh 6S 22.2V Smart G2

.mediaFeature [cushioning:2px 0;]
.safeTech [background:#6f92a5;float:left;padding:20px 0;font-size: 17]
.safeTech, .safeTech h4 [color:#fff;]

.aligncenter [
text-align: center;
]



Overview
Pilots take pleasure in much more Smart advantages when utilizing Spektrum™ Smart G2 100C LiPo batteries to power their airplanes and helis. New "Generation 2" features make these LiPo loads — including a 100C continuous discharge rating for high efficiency and longevity — even easier and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 innovation makes it much easier to stabilize charge your LiPo batteries. Stabilizing info journeys through the distinct information wire of each Smart G2 battery's ingenious IC3® or IC5® connector. As an outcome, only a single connection is required — no different balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The advantages include longer battery life, better efficiency over the life of the pack, and the peace of mind that originates from understanding your Smart battery is maintenance-free. You can change the battery's Vehicle Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's 3 times faster than the previous G1 Smart batteries.
Smart G2 100C soft-case LiPo packs also include thicker internal metal side plates. These plates enhance heat dissipation and provide more protection for the cells against punctures during rough landings or in comparable impact-prone situations.
As with other Smart batteries, you'll never ever have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is linked to a Spektrum™ Smart battery charger, its distinct charging parameters and health info upload to the battery charger from the battery's incorporated memory microchip. Through the battery charger you can see and set preferences such as charge rates, so all that's needed to charge the pack is connecting it to your Smart battery charger. Smart innovation looks after the rest.
Spektrum™ Smart G2 100C LiPo batteries save a variety of essential info, including:

Battery Brand name

Battery Type

Battery Capacity

Battery C Score

Specific Cell Voltage

Battery Temperature

Charge/Discharge Cycles

Spektrum™ Smart G2 LiPo 100C batteries also keep an error log including the variety of over-heat, over-discharge and over-charge occurrences. This information can be handy in assuring that the battery you've picked is ideal for the application. Ingenious Spektrum™ Smart G2 LiPo 100C batteries are so simple to use, they almost look after themselves. It's simple to accomplish peak battery efficiency, reliability and longevity with Smart G2 technology!
Note: G2 batteries need using a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.





Features

Simpler and safer to use

Powerful 100C continuous discharge rating to provide maximum efficiency and longevity

100C battery packs are readily available in a variety of capabilities and cell counts that are ideal for practically any application

Balance charge through the IC3® or IC5® connector information wire — with only one connection, no balance lead needed

Faster Vehicle Discharge at approximately 1.5A to safe storage voltage for long battery life and enhanced efficiency

Thicker internal metal side plates secure cells and enhance heat dissipation

Integrated microchip stores distinct parameters for each battery

IC3® and IC5® adapters are also suitable with EC3™ and EC5™ designs

Spektrum™ G2 Smart Charger needed (or earlier Smart Charger with G2 upgrade)












Smart Battery Technology — One Smart Connection
When linked to a Spektrum™ Smart battery charger, a Smart G2 battery's distinct parameters, health, and balancing info upload automatically from its memory microchip through the IC3® or IC5® connector's information wire. To charge and stabilize the pack, you just connect it to your Smart battery charger. Safe charging starts automatically, and no different balance lead is required.




Data Rich
An incorporated microchip allows each Smart G2 battery to conserve essential info such as battery brand, chemistry, cell count, capability, variety of charging cycles, variety of discharges, C rating, battery temperature level, and internal resistance. In addition, each battery will conserve a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most educated decision about each battery when you are getting your equipment ready to head out and have a good time.








Smart Auto Storage Discharge
Spektrum™ Smart G2 batteries almost look after themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The outcomes are longer battery life, better efficiency over the life of the pack and peace of mind that your Smart battery comes maintenance-free. The battery's Vehicle Storage settings can be altered by the user based on preferences.




Simple and Quick
Pre-programmed charge, discharge, and storage parameters are automatically passed on from your Spektrum™ Smart G2 battery to your Smart battery charger, making charging as basic as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to maximize packs with faster charge rankings. The battery's incorporated microchip keeps in mind the last charging rate you set, so the next time you plug it in, these settings will automatically work.








IC3® and IC5® Connectors
The ingenious Smart connection is made possible by a microchip installed in every battery, which feeds the battery's distinct info through an information cable television to its IC connector. Spektrum™ Smart IC3® and IC5® adapters have been developed from the ground up to provide a more solid connection, greater heat resistance, and effortless setup. IC adapters are also in reverse suitable with EC adapters so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart battery chargers.




100C Performance
Spektrum Smart G2 100C LiPos been available in a variety of popular sizes and are ready to drop into your RC plane or heli for maximum efficiency, power, and reliability. These battery packs are an excellent upgrade for those looking to get more punch and prop hanging power on almost any setup.




Specs

Application: Airplane

Battery Balance Port: G2 Smart

Battery Capacity: 3000-3999mAh

Battery Type: LiPo (3.7V per cell)

Battery Voltage: 22.2V

Capacity: 3200mAh

Cell Configuration: Flat

Charge Security Circuitry: Yes

Port Type: IC5

Tough Case: No

Maximum Burst Discharge Rate: 100C

Maximum Charge Rate: 5C

Normal/Standard Charge Current: 3.2A

Normal/Standard Charge Rate: 1C

Variety of Cells: 6

Product Height: 1.6" (41 mm)

Product Length: 5.6" (142 mm)

Product Weight: 17.8oz (505g)

Product Width: 1.7" (43 mm)

Watt Hours: 71.04

Wire Gauge: 10 AWG
