Sanwa Super Vortex Gen2 Pro Esc - Ssl/Ssr - Program W/ Tx Or Box

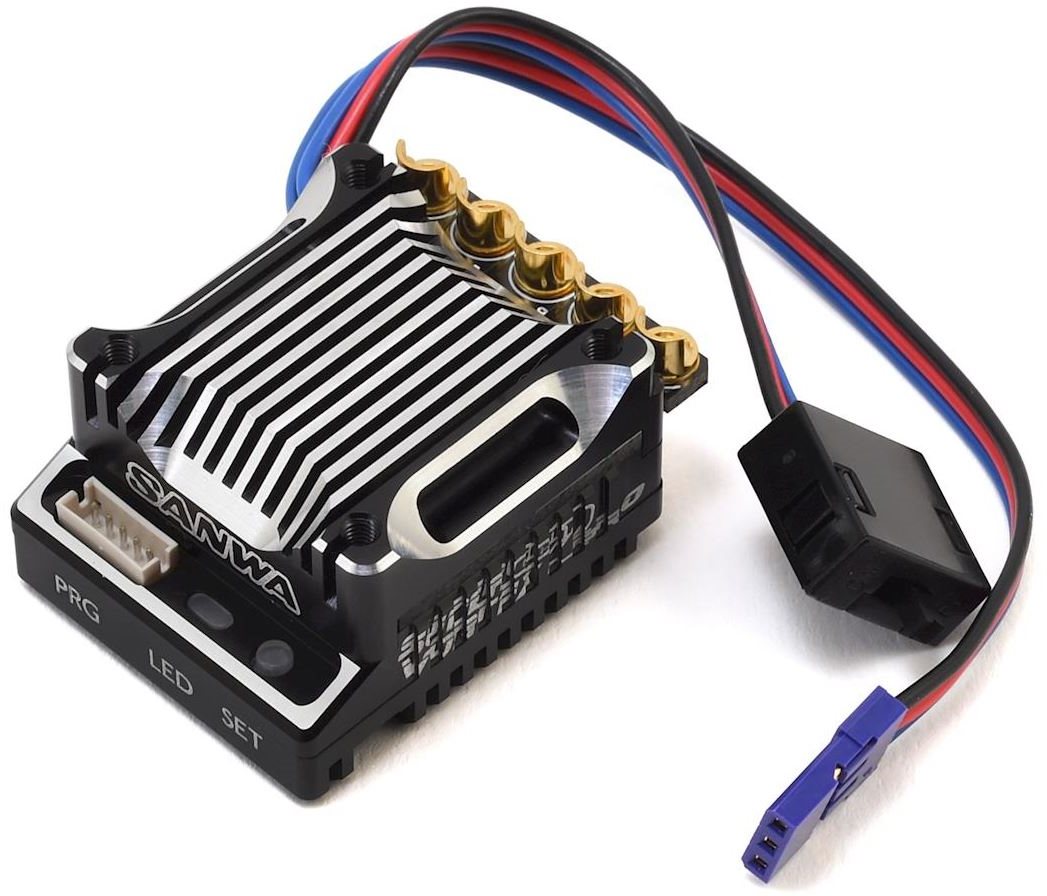

This is the Sanwa / Airtronics Super Vortex Gen2 Pro Brushless SSL ESC.  The Super Vortex Gen2 Pro includes enhanced circuitry, SSL capabilities, a complete aluminum case, upgraded telemetry functions, and plenty more.

About SSL System

When utilized with a SANWA M12S or Exzes ZZ transmitter, RX-482/RX-472/RX-47T receiver and the SANWA SUPER VORTEX STOCK ESC, the SANWA Synchronized Link (SSL) system enables you to change numerous ESC shows values straight from the transmitter utilizing the transmitter's CODE AUX function. In addition, telemetry information such as motor RPM, ESC temperature, motor temperature (if supported), and battery voltage can be read straight from the SUPER VORTEX STOCK ESC and showed on the transmitter.

Functions:

Compatible with SSR
Compatible with SSL
Compatible with PROGRAM BOX Gen2 (offered separately)
Achievement for 130% Output compare to Gen2 (previous design) due to Reviewing Design for Circuit Diagram
Developed New Function for CODE 10 (SSL: Remote Transmitter Setting) for M12S, M12S-RS, EXZES ZZ, and MT-44.
Increase Heat-Dissipation by Cooling Duct
Update Firmware version by Program Box Gen2etc.
Compatible with CODE AYX1 on EXZES Z, M12, MT-4S, MT-S. (Using AUX1, it is available to set MODE 5~MODE 9)
Compatible with CODE10 on M12S, M12S-RS, EXZES ZZ, MT-44. (Using AUX1, it is available to set MODE5~MODE14)

*The SUPER VORTEX Gen2 PRO does not have reverse motor rotation function. Please ensure you do not need this function.

Specifications:

Nominal Input Voltage: 3.7V - 7.4V

Ranked Existing: 1000A/Phase at (Transistor Rating at 25)

Dimensions: 32.0x36.8x20.5mm

Total Weight: 41.7g (w/o power capacitor)

NOTE: The Super Vortex Gen2 Pro firmware should be upgraded before usage, as well as the progammer box firmware, if you select to use it. For more information, click on this link.
