10th Scale Comp Crawler
The Redcat Vertex-10 Kit combines durable engineering and advanced suspension design to take comp crawling to the next level. Its reinforced chassis and drivetrain provide the strength needed to tackle extreme terrain, while finely tuned suspension geometry and precise steering inspire confidence on challenging lines. Designed as a customizable platform, the Vertex-10 Kit delivers an excellent balance of durability, capability, and performance for serious rock crawling enthusiasts.
About the Vertex-10
Advanced Suspension and Steering Geometry
The Vertex-10 features an advanced suspension and steering system designed for smooth articulation and precise control. Air emulsion, oil-filled shocks with X-ring seals deliver consistent damping and durability across rugged terrain. Double CV joints provide ultra-smooth articulation, even at extreme steering angles, ensuring maximum maneuverability in tight spots. Together, these features create a suspension system that balances durability, flexibility, and precision for serious crawling performance.
Durability
The Vertex-10 is built on a low center of gravity carbon chassis with a forward-mounted motor, delivering stability and strength on demanding terrain. Reinforced solid axles with steel internal tube inserts provide exceptional durability, while hypoid-style ring and pinion gears increase ground clearance and allow the axle housing to slide smoothly over obstacles. Splined metal driveshafts ensure a constant, reliable connection, with angled ends designed to clear rocks and uneven terrain. High-clearance rear links, adjustable suspension geometry, and a tilt body mounting system further enhance toughness and performance. Combined, these features create a crawler that's engineered to withstand extreme conditions while maintaining precision and control.
Features:
3mm Carbon Fiber Frame rails
10 degree skid plate angle
High clearance links
Multiple battery mounting locations
Clipless body mounting
Heavy duty axles with steel tube inserts
Weighted front portal box
58 Degrees of steering angle
Includes:
(1) Vertex-10 Slider 1/10 4WD Rock Crawler Kit
Needed To Complete:
(1) 2-Channel+ Transmitter & Receiver System
(1) 540 Size Motor
(1) ESC
(1) High Torque Steering Servo
(1) LiPo Battery & Compatible Charger
(1) Paint for Body
Specifications:
Scale
1:10
Drive
4WD
Power Source
-
Length
17.5in (445mm)
Wheelbase
12.4in (316mm)
Width
10in (254mm)
Height
-
Weight
-
Assembly Level
Kit
*Tech Note: RC Kits are an unassembled Remote Control Model that require assembly, racer selected electronics, and other racer provided items. Photos of assembled kit are for illustrative purposes only. For a complete list of needed items to drive this kit please see the list above.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Details...

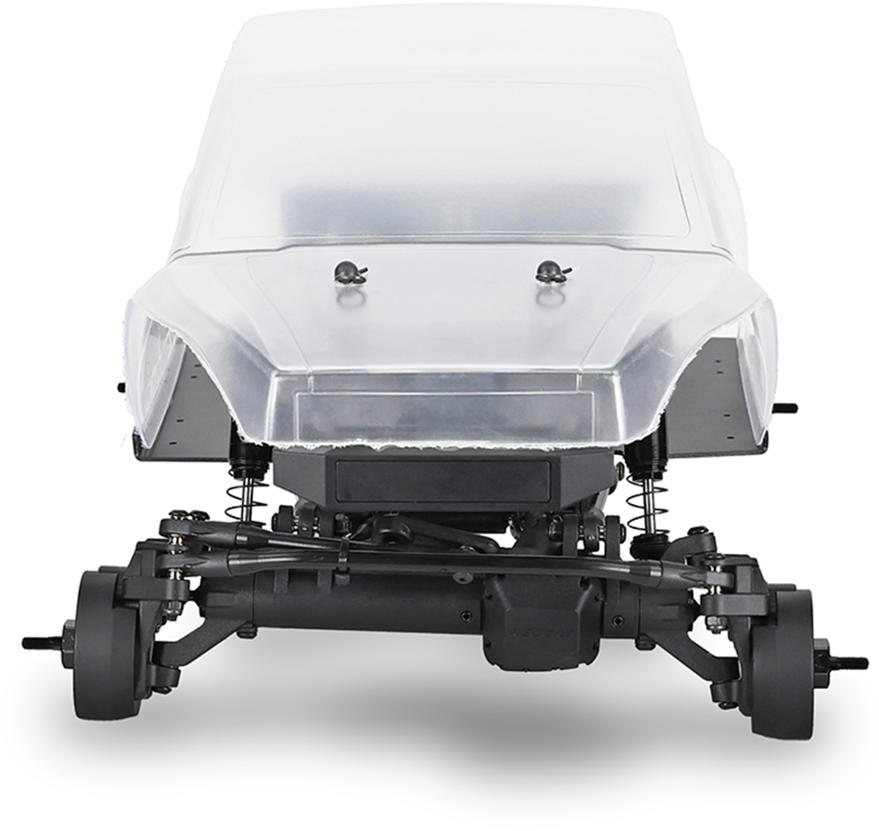

- Redcat Redcat Vertex-10 Slider 1/10 4WD Rock Crawler Kit
