10th Scale Comp Crawler
The Redcat Vertex-10 combines brushless power, durable engineering, and advanced suspension design to take comp crawling to the next level. Its electronics deliver smooth, responsive control, while the reinforced chassis and drivetrain provide the strength needed for extreme terrain. With finely tuned suspension geometry and precise steering, the Vertex-10 offers a perfect balance of power, durability, and performance for serious rock crawling enthusiasts.
About the Vertex-10
Brushless Power and Precision Electronics
The Vertex-10 is powered by the Hobbywing system, combining a 2812 1700KV brushless motor with a programmable 60A ESC for smooth, efficient, and reliable performance. With 4S capability and an 8.4V BEC, this system delivers exceptional torque and control across challenging terrain. Steering precision comes from the HX-50BL digital servo, featuring durable metal gears and a massive 694oz/in of torque for confident handling. The brushless power system and precision electronics package provide the strength, accuracy, and responsiveness demanded by comp crawling.
Advanced Suspension and Steering Geometry
The Vertex-10 features an advanced suspension and steering system designed for smooth articulation and precise control. Air emulsion, oil-filled shocks with X-ring seals deliver consistent damping and durability across rugged terrain. Double CV joints provide ultra-smooth articulation, even at extreme steering angles, ensuring maximum maneuverability in tight spots. Together, these features create a suspension system that balances durability, flexibility, and precision for serious crawling performance.
Durability
The Vertex-10 is built on a low center of gravity carbon chassis with a forward-mounted motor, delivering stability and strength on demanding terrain. Reinforced solid axles with steel internal tube inserts provide exceptional durability, while hypoid-style ring and pinion gears increase ground clearance and allow the axle housing to slide smoothly over obstacles. Splined metal driveshafts ensure a constant, reliable connection, with angled ends designed to clear rocks and uneven terrain. High-clearance rear links, adjustable suspension geometry, and a tilt body mounting system further enhance toughness and performance. Combined, these features create a crawler that's engineered to withstand extreme conditions while maintaining precision and control.
Features:
3mm Carbon Fiber Frame rails
10 degree skid plate angle
High clearance links
Multiple battery mounting locations
Clipless body mounting
Heavy duty axles with steel tube inserts
Weighted front portal box
58 Degrees of steering angle
+24mm wider axles
2.2" Sized wheels
Includes:
(1) Vertex-10 1/10 RTR 4WD Electric Brushless Rock Crawler
(1) 2.4GHz 4-Channel Radio System
Needed To Complete:
(4) AA Batteries for Transmitter
(1) 2-4s Lipo Battery w/XT60 Connector
(1) Compatible Battery Charger
Specifications:
Scale
1:10
Drive
4WD
Power Source
3-4S LiPo
Length
17.5in (445mm)
Wheelbase
12.4in (316mm)
Width
10.9in (278mm)
Height
-
Weight
-
Electronics
Motor:
Brushless
ESC
Brushless
Connector
XT60
Servo
HX-50BL 50kg
Wheels
Front
2.2"
Rear
2.2"
Hex
12mm
Tires
Front
-
Rear
-
Assembly Level
RTR
*Tech Note: Ready-to-Run models come equipped with all electronics and include the transmitter needed for use. Please check the "Needed To Complete" above to make sure you have everything you need to get out and enjoy your RC model.
CA Residents Prop 65 Warning
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Details...

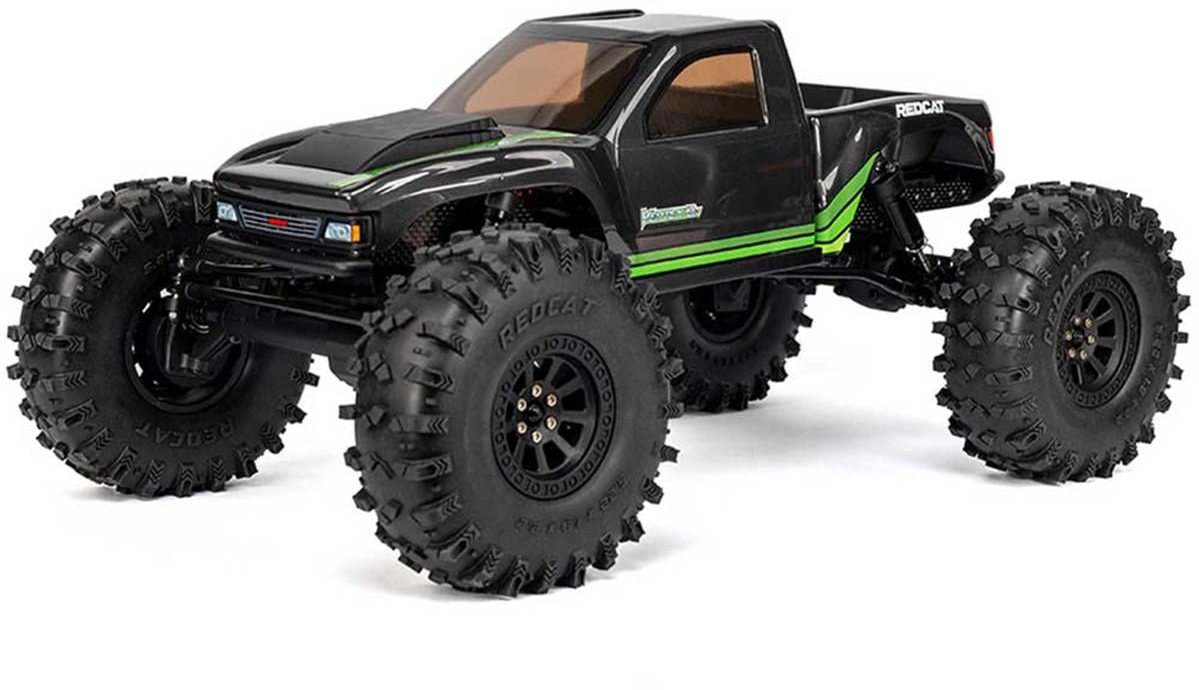

- Redcat Redcat Vertex-10W 1/10 RTR 4WD Electric Brushless Rock Crawler (Dark Grey)
