Overview
PROTOform is now proud to bring among the most expected cars Chevrolet® has ever developed to the 1:7 scale ARRMA® Street Celebration line of automobiles with the release of the Corvette™ C8 body for Felony™ & Violation™.

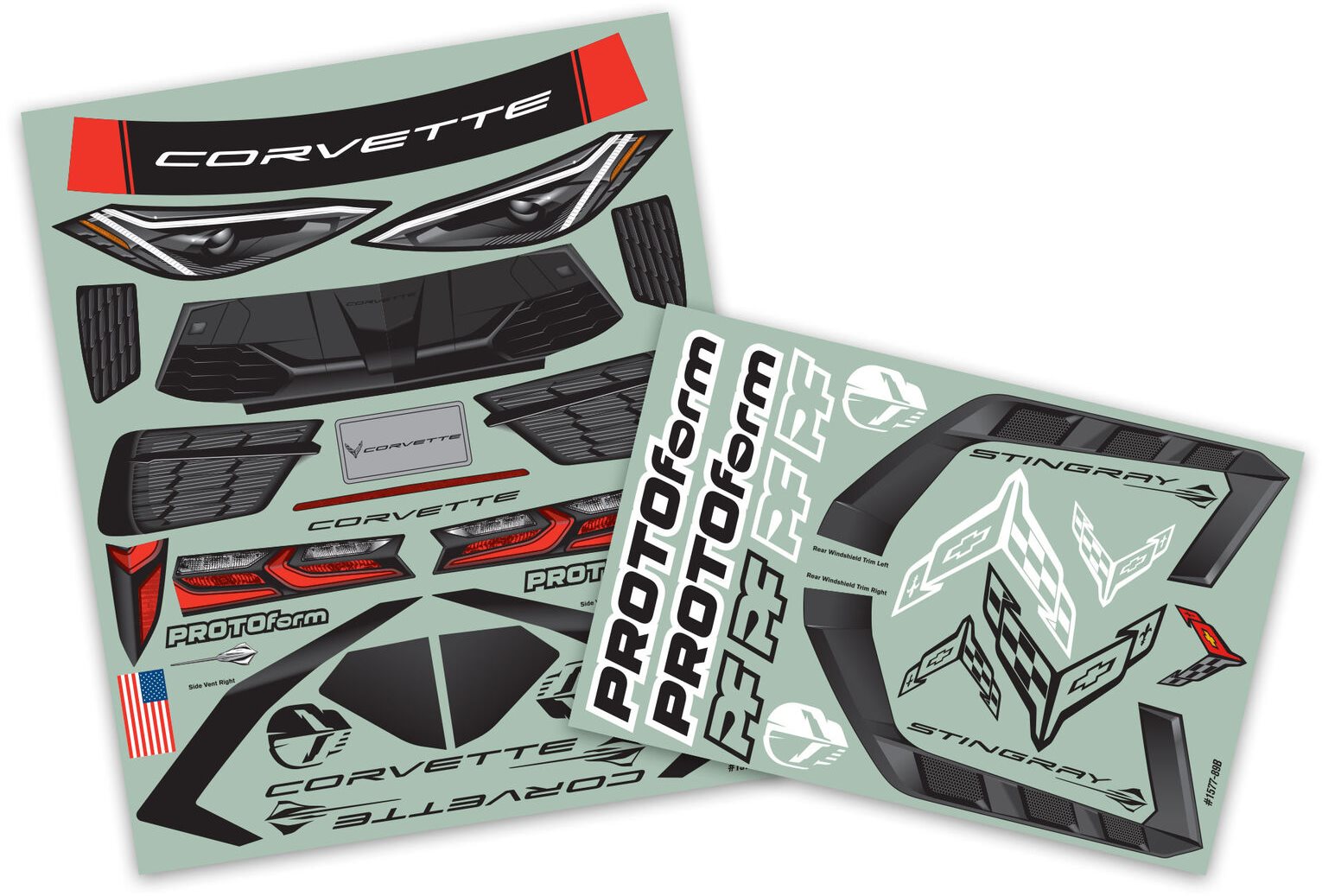

The officially certified body is the supreme aerodynamic upgrade to the popular Felony™ platform, whether you are making speed runs in the back roads or drifting in the parking lot. All the exceptional information of its 1:1 equivalent consisting of aggressive cab-forward design, sculpted side doors, and vents are captured utilizing the most recent in 3D CAD and 5-axis milling technology. The extensive decal sheet lets you deck out your C8 with Corvette™ badges, windscreen headers, "Jake" skulls, and U.S.A. flags. Likewise included are a custom add-on front splitter and rear wing to complete the super-scale look.
The C8 is formed from durable 1.5mm thick premium polycarbonate with paint-then-peel overspray film. This body was created with broader rear fenders as a direct suitable for the Felony™ to clear the 53/107 tires. It will deal with Violation™ rear tires, but to get the optimum appearance and fit, you can additionally select to either widen the rear of your Violation™ chassis with stock rear tires or utilize Felony™ rear tires with adjustments to the rear gear ratio. See the fits tab for the list of parts needed for these modifications.

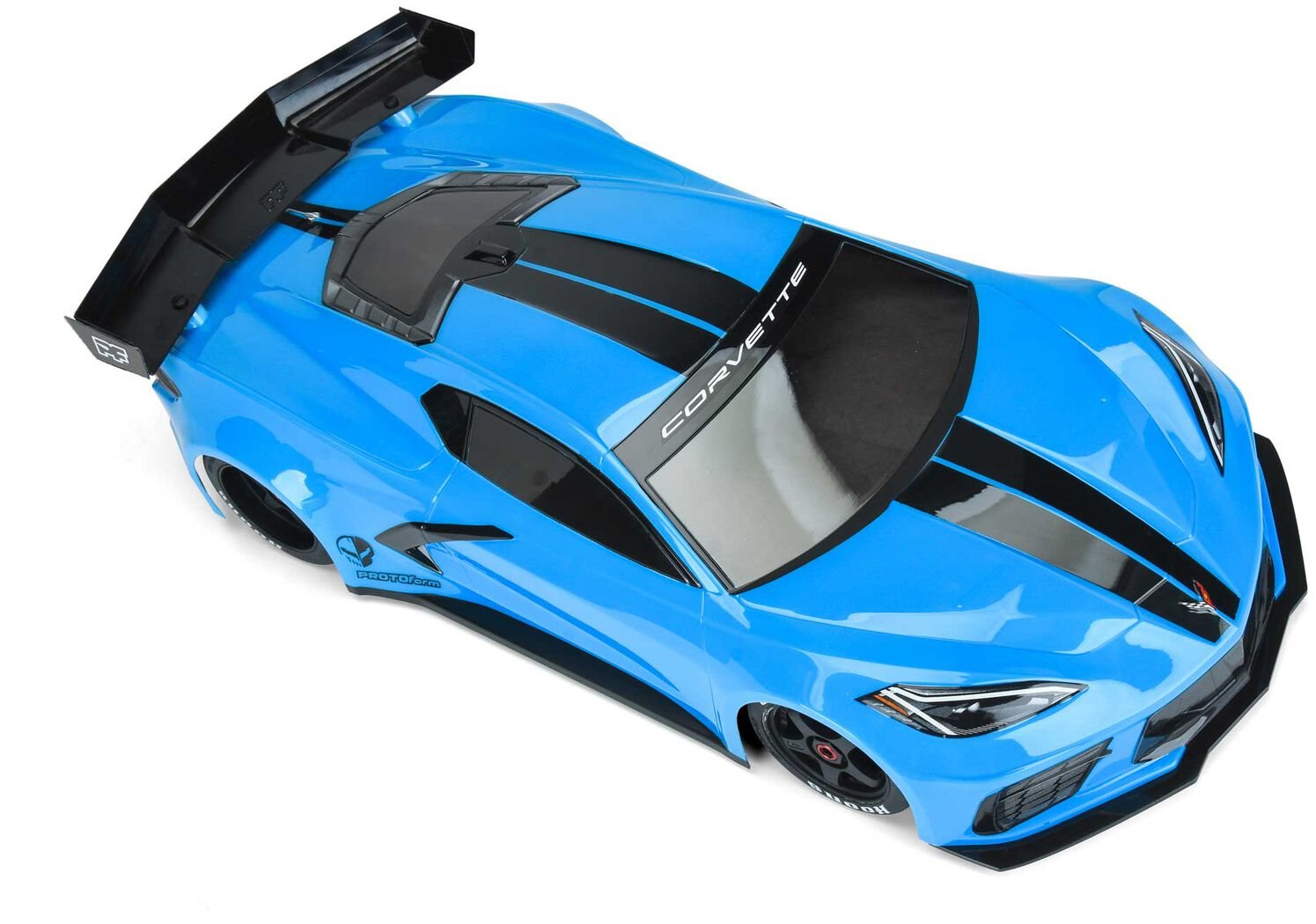

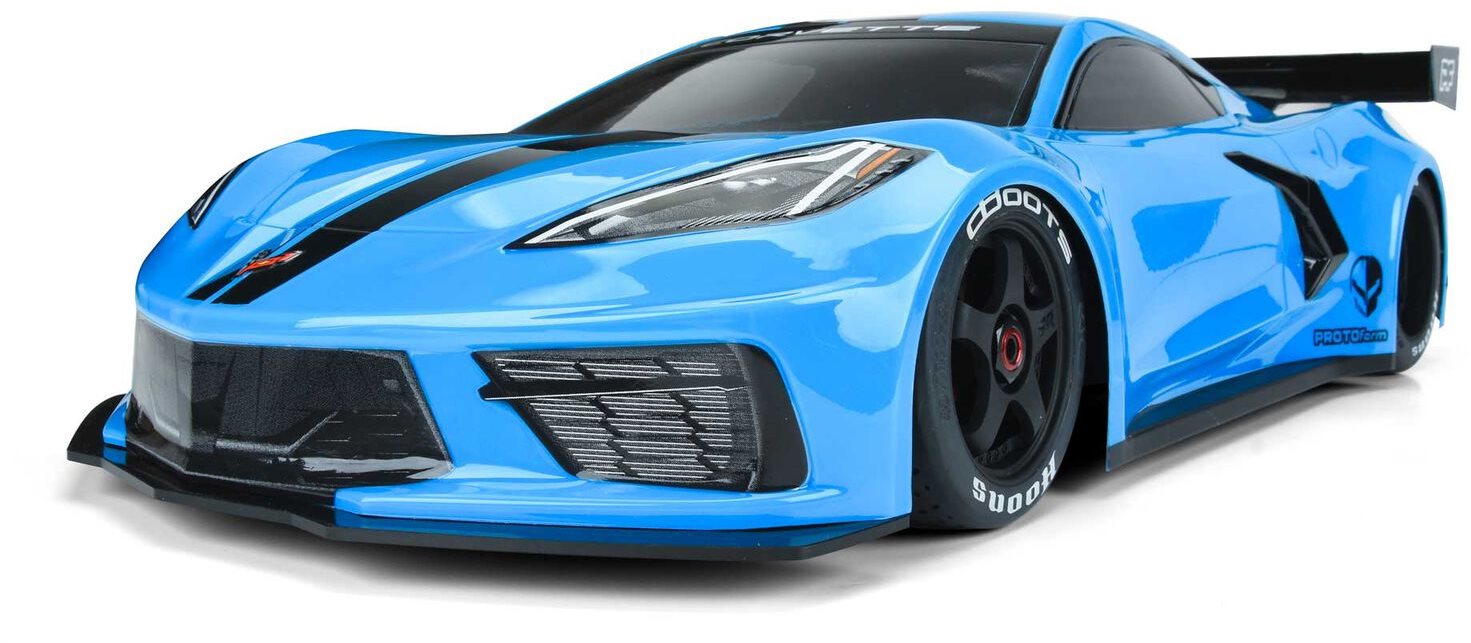

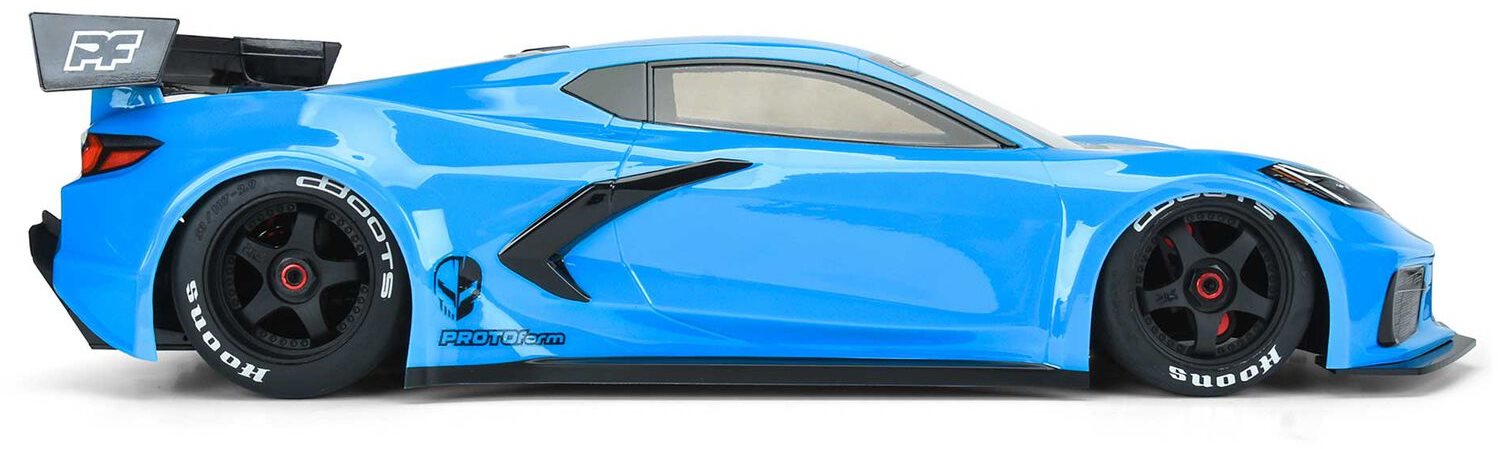

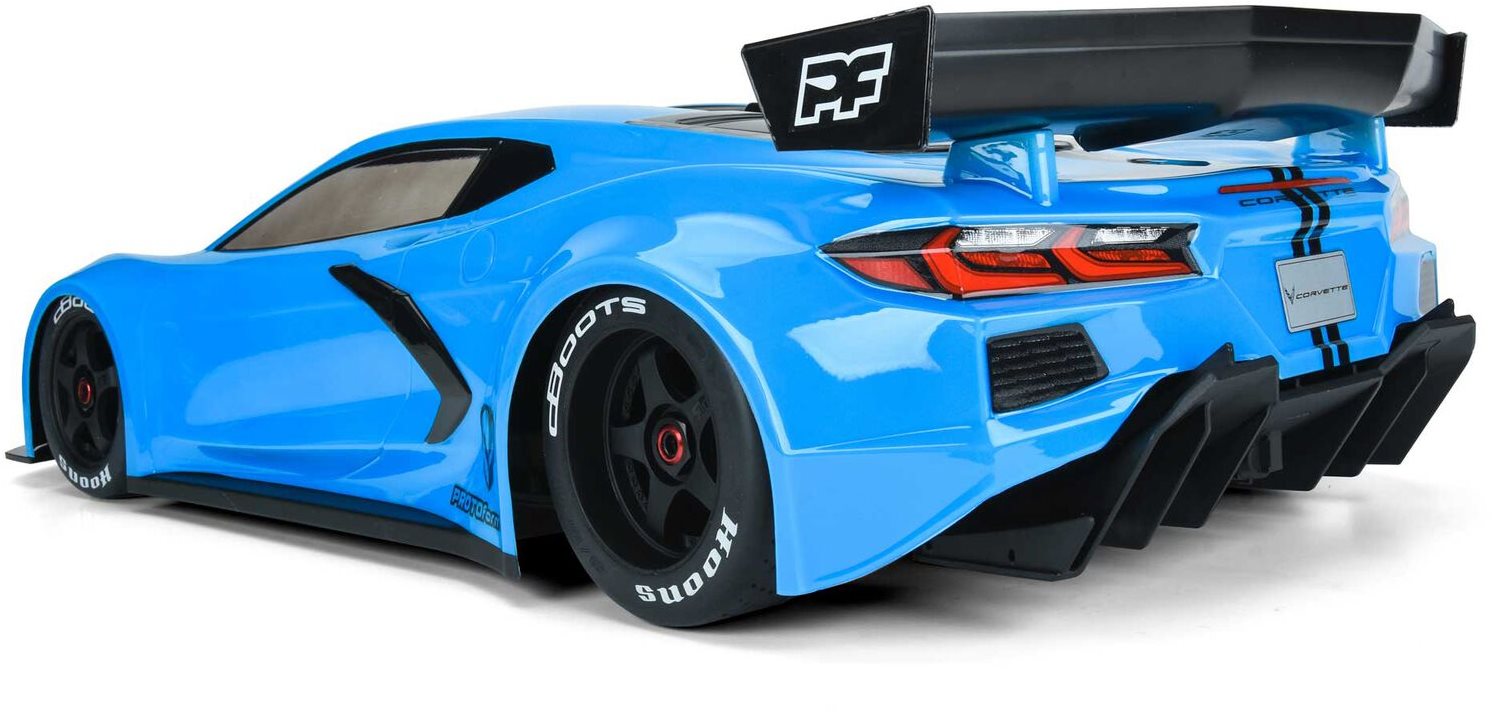

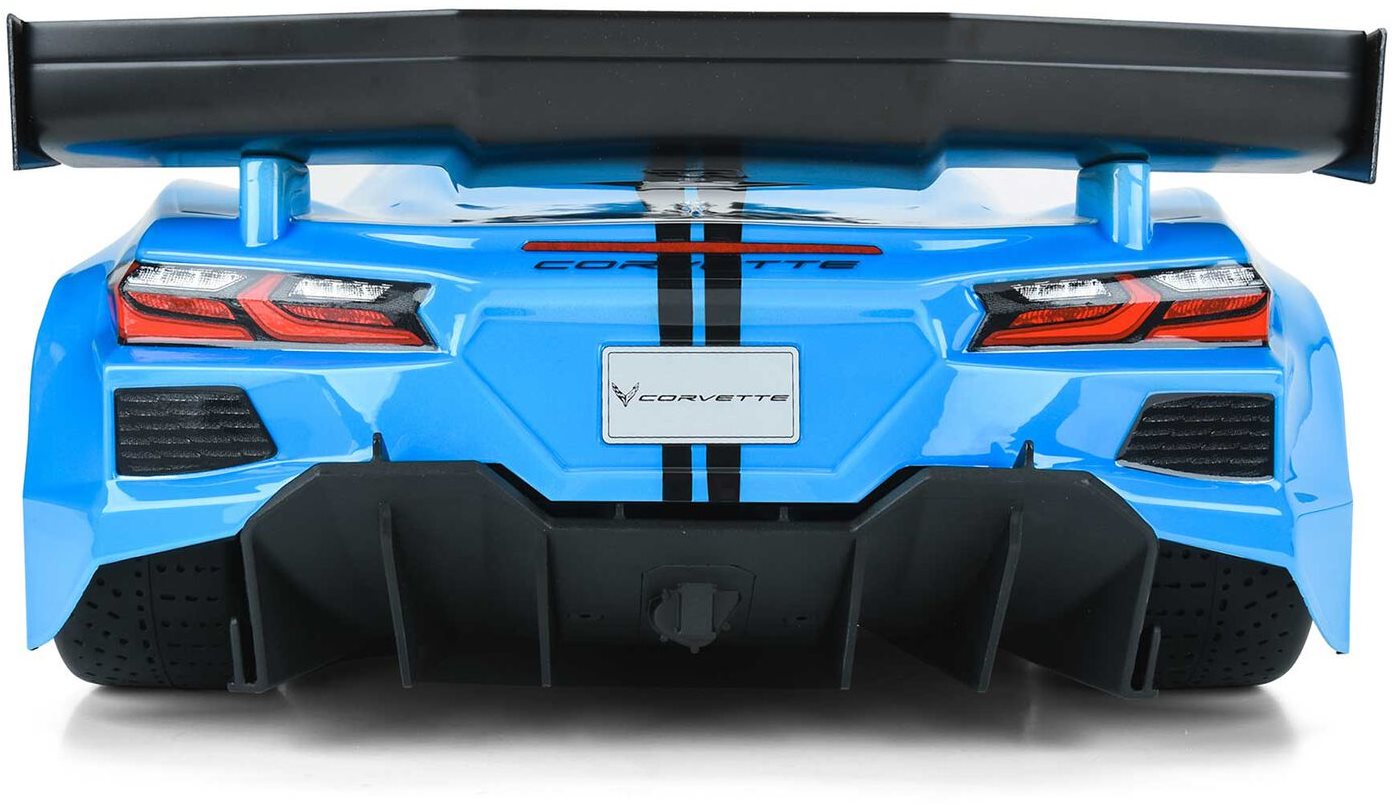

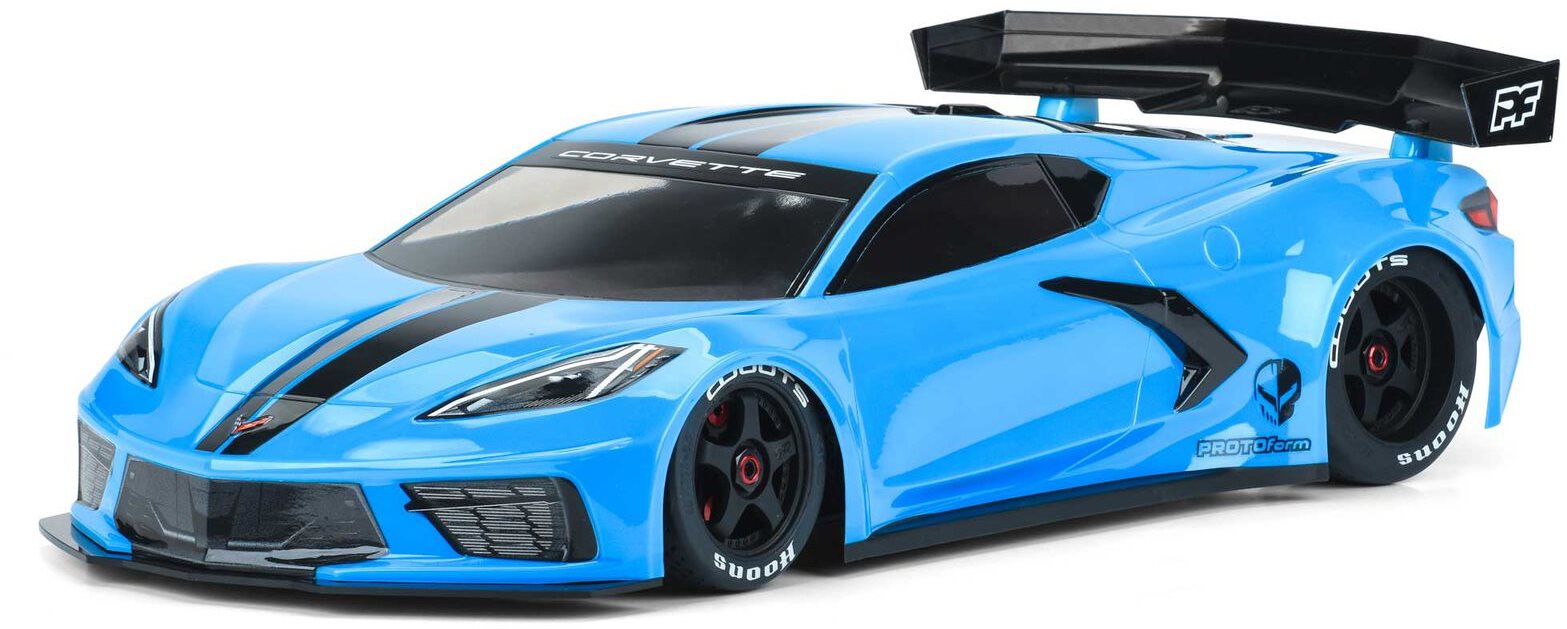

This is offered as a clear and unpainted body. Picture of the painted body is only to display information. No car chassis is included with this product.

PRM157700 | Chevrolet® Corvette™ C8 Clear Body for ARRMA® Felony™ & Violation™












Features

Extraordinary Scale Details

Officially-licensed by General Motors®

Custom Front Splitter & Wing Styles

Paint-then-peel Overspray Film Built-in

Made with Crystal Clear Polycarbonate

Made in the U.S.A.





Four Actions to On-Road Ready

Tidy Body and use included window mask

Paint then peel the over-spray film off

Sticker your body (decal sheet included)

Mount your brand-new body onto your Vehicle




Fits

ARRMA® Felony™

ARRMA® Violation™ with:

STOCK REAR TIRES - COMPONENTS LIST

Rear Hubs (2pcs): AR330404

Axles (8x45mm) (2pcs): AR310591

Hexes (16.5mm) (2pcs): AR310484

FELONY™ REAR TIRES - COMPONENTS LIST (V1 VIOLATION™)

53/107 2.9 Tires (Pair): ARA550073

Front Input Shaft Cup (Safe-D): ARA310977

Front Input Shaft Cup Sleeve (4pcs): ARA310976

Front Main Input Gear 15T GP5: ARA311016

Front Main Diff Gear 42T GP5: ARA311017

Rear Input Shaft Cup (SAFE-D): ARA310977

Rear Input Shaft Cup Sleeve (4pcs): ARA310976

Rear Main Input Gear 14T GP6: ARA311018

Rear Main Diff Gear 45T GP6: ARA311019

FELONY™ REAR TIRES - COMPONENTS LIST (V2 VIOLATION™)

53/107 2.9 Tires (Pair): ARA550073

Rear Main Input Gear 14T GP6: ARA311018

Rear Main Diff Gear 45T GP6: ARA311019




Specs

Length:
27.25" (892mm)

Width at Front:
12.3" (312mm)

Width at Rear:
13.2" (335mm)

Height:
10.1" (257mm)

Wheelbase:
7.75" (196mm)








General Motors hallmarks utilized under license to Pro-Line.



Requirements

Body Design: 2 door coupe

Color: Clear

Product: Polycarbonate

Item Height: 7.75" (197 mm)

Item Length: 27.25" (692 mm)

Scale: 1/7

Car Type: On-Road

Wheelbase: 10.1" (257 mm)
