ProTek RC 160T Low Profile Digital Torque Servo Use: Savsv1254mg

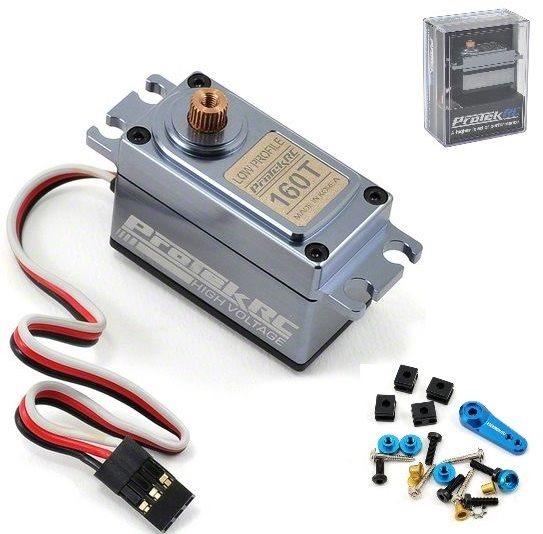

This is the ProTek R/C 160T Low Profile Digital "High Torque" Metal Equipment High Voltage Servo. ProTek R/C Servos have been developed to offer enthusiasts with high quality servo's that will go beyond expectations at every level. With functions that fulfill or surpass exactly what our competitors can offer, ProTek R/C servos deliver efficiency and unrivaled worth, with industry leading consumer support.

The ProTek R/C 160T High Voltage Low Profile servo provides an amazing 216 oz-in of torque and 0.08 transit speed at 6.0V, when you bump the voltage to 7.4 the spec's boost to 274 oz-in and 0.06! Spec's like these make this servo an exceptional option for any 1/12 to 1/10 scale vehicle application. Other functions consist of a complete aluminum case that offers bomb evidence sturdiness and enhanced heat dissipation, a metal equipment train that is supported by double ball bearings, a 160mm long 22awg adapter wire with gold plated adapters, and a coreless motor.

Plus, rather of a cheap plastic servo horn, ProTek R/C goes above and beyond with a consisted of aluminum single arm servo horn that will stand up to a bulk of the punishment you can throw at it. And for additional rigidness, 4 blue aluminum servo ear guides are included as options to the rubber grommets. Stop losing your cash on spending plan servos that look excellent in the spec list, however fail when its time to carry out. Get ProTek and do not look back.


Features:

Low-Profile case conserves area and weight

Suitable for any 1/12 to 1/10 scale vehicle application
Full aluminum case
High voltage circuitry
0.08 transit speed, and 216 oz-in of torque @ 6.0V
0.06 transit speed, and 274 oz-in of torque @ 7.4V
Aluminum single arm servo horn
Full metal equipments and double ball bearings
160mm long 22awg adapter wire w/gold plated adapters
Coreless motor

.specstable[border-collapse:collapse;].specstable tr.odd[background-color:#ccc;].specstable td[cushioning:5px;]Servo Model


160T

Suggested Application
1/12 to 1/10 scale Surface area

Running Voltage
4.8V - 7.4V

Running Temperature level
14? to 140? F (-10 to +60? C)Running Speed @ 6.0V
0.08/60? sec

Operating Speed @ 7.4V


0.06/60? sec

Dynamic Torque @ 6.0V


216 oz-in (15.5 kg-cm)

Dynamic Torque @ 7.4V


274 oz-in (19.7 kg-cm)

Motor Type


High Efficiency Coreless Motor

Output Shaft
25 Tooth

Gears
MetalWeight
54.5gPulse/Frequency


1520μs / 333hz


ProTek R/C is an AMain.com brand name.
