Power Hobby 1512Mg 1/5 Alumminum Waterproof High Speed / Torque Brushless Se (Power Hobby PHB1512MG | PHB1512MG)

Model: Power Hobby PHB1512MG
Dist. #: PHB1512MG   SKU: PHB1512MG

Be the first to review this product. (Write Review)

Out of stock

Price:  $262.00

This item will earn you 262 reward point(s).
262 points = $5.24 off your next order. Learn More

Updated on Aug 11, 2025 02:42:02 AM

1512Mg 1/5 Alumminum Waterproof High Speed / Torque Brushless Se...

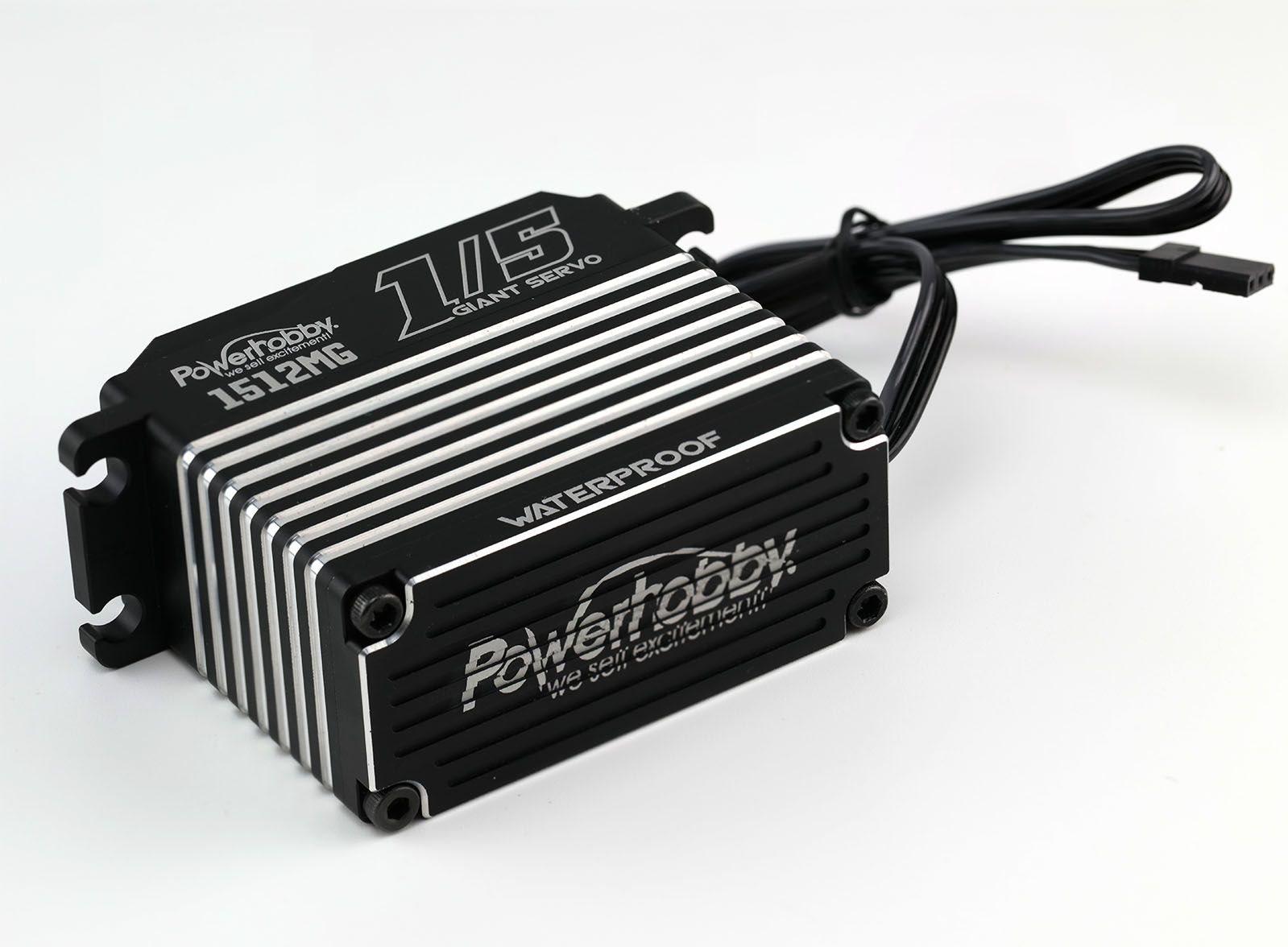

1512MG 1/5 Alumminum Waterproof High Speed / Torque Brushless Servo

TWO Version 1/5 scale servo. This servo combines a long-life brushless motor with a beast torque style to take the driving experience of large model lovers to a new level. 1512MG servo is perfect for 1/5 Beast Truck or Buggy. Whether you are passing through the jungle or climbing up over sand dunes, 5 ball bearings and strengthened gear structure improve the life of the servo. IP67 waterproof so you can have fun with your model in a humid environment or rainy day. This 1512MG servo appropriates for a lot of 1/5 scale designs, which require a TWO LiPo battery. Ultralight style with heat sink machining.

Specs :

Stall Torque

48.0 kg-cm (667 oz-in) @ 4.8V

58.0 kg-cm (806 oz-in) @ 6.0V

66.0 kg-cm (917 oz-in) @ 7.4V

78.0 kg-cm (1084 oz-in) @ 8.4V

Running Speed

0.126 sec/60' @ 4.8V

0.110 sec/60' @ 6.0V

0.095 sec/60' @ 7.4V

0.082 sec/60' @ 8.4V

Dimensions L x W x H (mm): 65.78 x 29.97 x 58.92

Features:

  • Heat Sink Aluminum Case

  • Exceptionally Strong Steel Gears

  • Super Reliable 5 Ball Bearing

  • TWO Lipo High Voltage Compatible

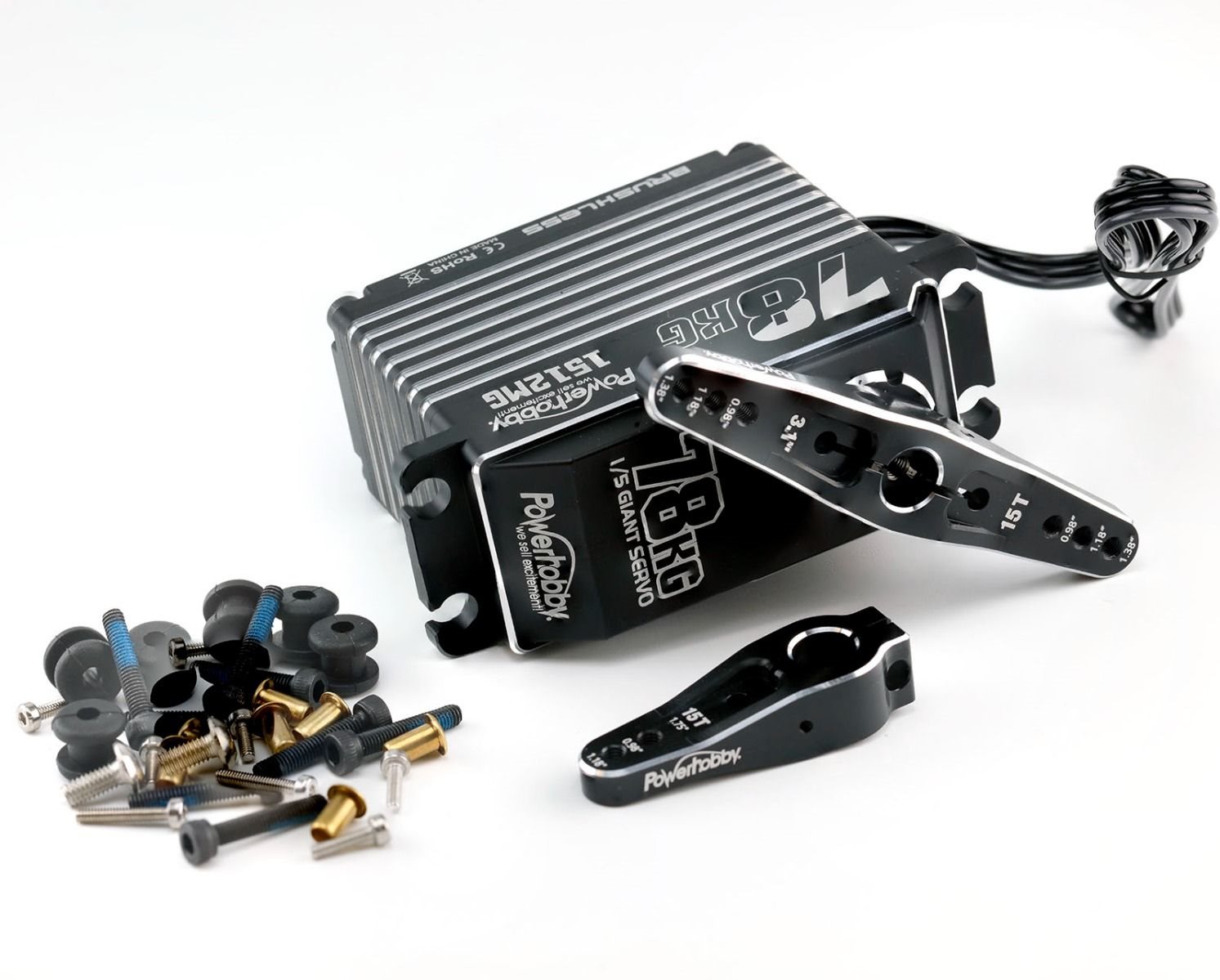

  • 15T Aluminum Servo Horns

  • Magnetic Sensing Unit Water Resistant IP67


  • Product Produced: 07/08/2021
