Uf-7R Controller...

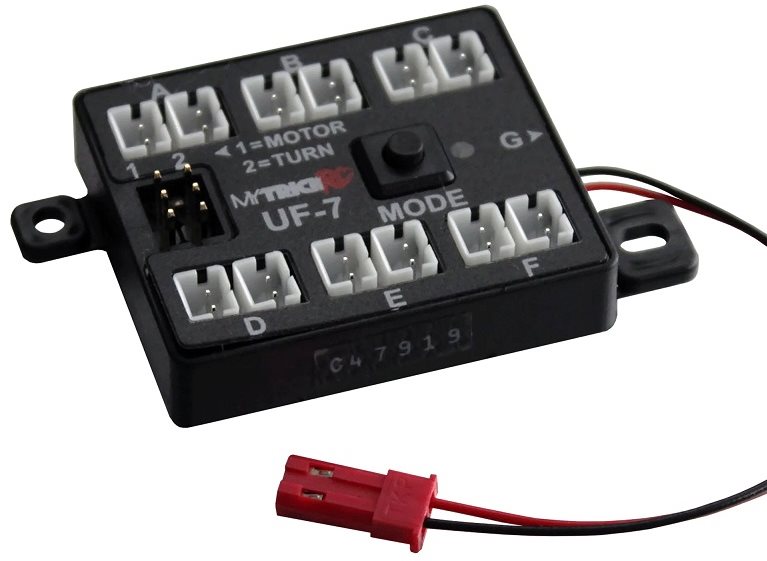

UF-7R Controller

The UF-7R LED Light Controller is the development of the UF-7 LED Light Controller - the Lighting Controller that assisted produce MyTrickRC!

The original UF-7's rock solid electronics and software application, together with its Plug & Play design, and easy operation made it the obvious option for RC enthusiasts across the RC hobby. They used it exclusively in their original Light Packages. The electronics in the original UF-7 was difficult and trusted both by design and MyTrickRC doesn'tt cut corners on products or components.

After many years of success with the UF-7, they found that with a couple of easy tweaks, thtey could make it even better, by considerably boosting it's overall performance and value!

The UF-7R Controller utilizes the precise very same rock solid electronics as the original UF-7, however with 4 little, however effective, upgrades:

First, MyTrickRC changed the MODE Button to be Waterproof, making the UF-7R Fully Controller Waterproof!

Then, they also updated all the connectors on the UF-7R Controller to be gold plated, further boosting their long term contact performance, especially around water!

But MyTickRC didn't stop there, they also updated the Pigtail output to support as much as 2 Amps of present! This suggests the UF-7R can power Light Bars, Rock Lights, Halos, or MyTrickRC High Power Lights, and even certain Light Bars from Other Brands**! Yes, that's right, if you currently have a Proline, or Any Light Bar that powers off the Receiver, you can power it from the UF-7R! Not just does this decrease the amount of wires to fuss with, the UF-7R Controller has a Plug & Play choice that adds Remote On/Off Control of all your LEDs, including the Light Bar!

On the Software side of the UF-7R Controller, they made equally huge enhancements. They figured out an entirely different way to re-write the UF-7R Controller programming code, letting loose the complete potential of the UF-7R Controller's Micro-Processor and onboard memory to considerably expand the LED blink functions in EVERY MODE. So, all the MODEs on the UF-7R got more blink features added to them. Some examples of features they added are*: Off Road MODEs with Optional Remote On/Off Control, Center Brake Light, Backfire, Automatic Risk Lights, extra Emergency situation Strobes, Scale Warbird with Switchable Wig-Wag Landing Lights therefore much more!

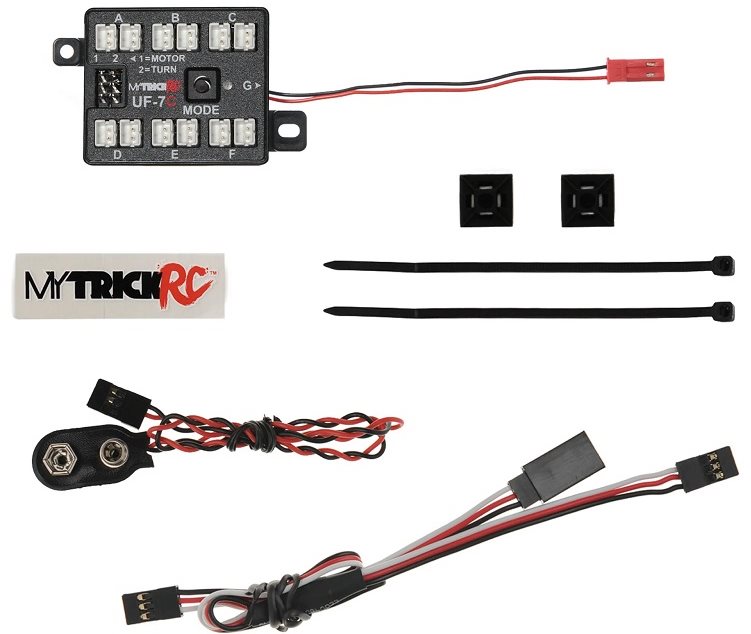

THE UF-7R CONTROLLER INCLUDES:

1pc UF-7R Controller

1pc Servo Y-Cable

1pc 9V Battery Adapter

Mounting Hardware

NOTES:

1. The Power Rankings for the UF-7R Controller are: 4.5-12VDC, 2 Amps MAX.

2. UF-7C Controller's Pigtail Output passes Receiver Power directly through it. For that reason the voltage on the Pigtail Output will be the same as your Receiver. CARE - Do Not draw more power off your receiver than it's rated for.

3. UF-7R Controller's Port E (Headlights Port) can be used to power Headlights and/or Running Lights. Port E stays ON STEADY in all Land Automobile MODEs.

4. Each port on the UF-7R Controller can power LOTs of LEDs, however the more LEDs you add to one port, the dimmer all of them will become. They suggest attempting not to exceed 4 LEDs per UF-7R Controller LED Output.

5. A Higher Input Voltage on the UF-7R will make all of your LEDs slightly More vibrant, However it's better for the Controller if you do not exceed 9VDC.

6. MyTrickRC offers LED Splitter Cables which permit you to add more LEDs to a Port. However, you can't blend all LED colors together on one LED Splitter.

* The brand-new Blink features we discussed are just in certain MODEs

** The UF-7R Controller Can Power:

1pc Attack 5" or 6" Light Bar, or Light Bar from Other Producer

OR 1 set of

Attack 17mm Round Wafer Headlights

Attack 19mm Rectangle-shaped Wafer Headlights

Attack Halo Headlights

NEW Attack 7-LED Wafer Strip Light

OR

4 sets of Attack Spot Lights, original Attack Headlights, Attack Rock Lights, or Attack 9mm Wafer Lights

Product Produced: 08/04/2023
