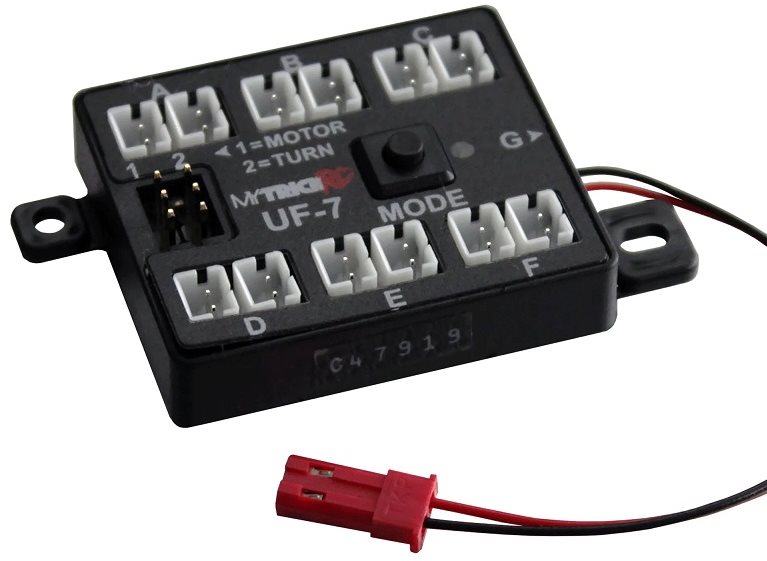

MyTrickRC Uf-7C Controller (Has Aircraft Modes)

MyTrickRC's UF-7C Controller was substantiated of its earlier cousin, the initial UF-7 Controller. The success of the UF-7 Controller actually created MyTrickRC! The initial UF-7's Rock Solid Electronics and Software application, together with it's Plug & Play Style, and basic operation made it the apparent choice for RC lovers throughout the RC Pastime. They used it solely in their Original Light Packages. The Electronics in the initial UF-7 was difficult and Trustworthy both by style and they don't cut corners on products or components.

After several years of excellent success with the UF-7, MyTrickRC discovered that with a few basic tweaks, they might make it even much better and considerably improve its general performance and value. The UF-7C Controller utilizes the precise very same Rock Solid Electronics as the initial UF-7, but with 4 little, but effective, upgrades. First, they changed the MODE Button to be waterproof, making the UF-7C Completely Controller Waterproof! Then they likewise upgraded all the connectors on the UF-7C Controller to be Gold Plated, more boosting their long term contact performance, especially around water! However MyTrickRC didn't stop there. They likewise upgraded the PigTail Output to support up to 2 Amps of Present! This indicates the UF-7C can Power Light Bars, Rock Lights, Halos, or MyTrickRC High Power Lights, and even specific Light Bars from Other Brands**! Yes, that's right, if you already have a Proline, or Any Light Bar that powers off the Receiver, you can power it from the UF-7C! Not only does this lower the quantity of wires to fuss with, the UF-7C Controller has a Plug & Play choice that adds Remote On/Off Control of all your LEDs, consisting of the Light Bar!

On the Software application side of the UF-7C Controller, they made similarly substantial enhancements! MyTrickRC determined an entirely different method to re-write the UF-7C Controller programming code, releasing the full capacity of the UF-7C Controller's Micro-Processor and onboard Memory to considerably expand the LED Blink Functions in EVERY MODE. So all the MODEs on the UF-7C got more blink features contributed to them. Some examples of features they included are*: Off Roadway MODEs with Optional Remote On/Off Control, Center Brake Light, Backfire, Automatic Risk Lights, extra Emergency situation Strobes, Scale Warbird with Switchable Wig-Wag Landing Lights and so much more!

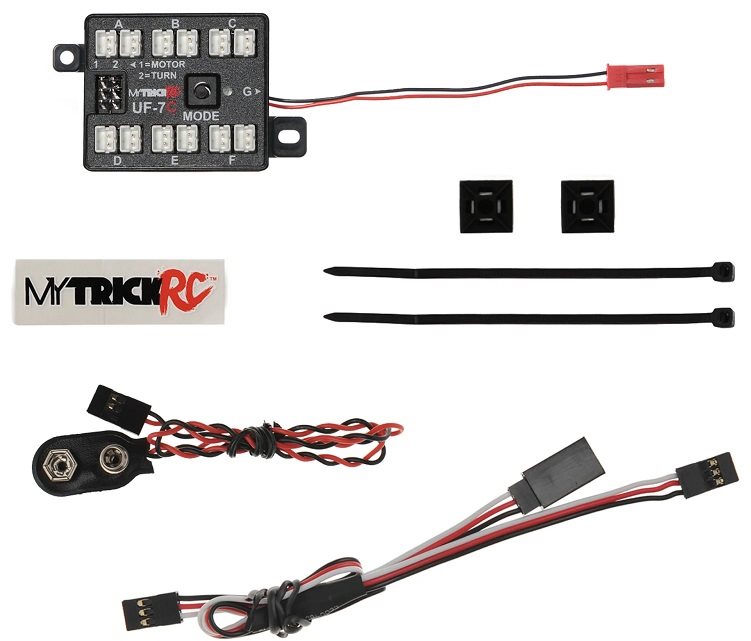

THE UF-7C CONTROLLER INCLUDES:

1pc UF-7C Controller

1pc Servo Y-Cable

1pc 9V Battery Adapter

Mounting Hardware

NOTES:

1. The Power Ratings for the UF-7C Controller are: 4.5-12VDC, 2 Amps MAX.

2. UF-7C Controller's Pigtail Output passes Receiver Power straight through it. For that reason the voltage on the Pigtail Output will be the exact same as your Receiver. CARE - Do Not draw more power off your receiver than it's ranked for.

3. UF-7C Controller's Port E (Headlights Port) can be used to power Headlights and/or Running Lights. Port E remains on STEADY in all Land Automobile MODEs.

4. Each port on the UF-7C Controller can power Great deals of LEDs, but the more LEDs you contribute to one port, the dimmer all of them will end up being. We suggest attempting not to surpass 4 LEDs per UF-7C Controller LED Output.

5. A Higher Input Voltage on the UF-7C will make all of your LEDs a little More vibrant, Nevertheless it's much better for the Controller if you don't surpass 9VDC.

6. MyTrickRC offers LED Splitter Cables which allow you to include more LEDs to a port. Nevertheless, you can't mix all LED colors together on one LED Splitter.

* The brand-new Blink features we discussed are only in specific MODEs

** The UF-7C Controller Can Power:

1pc Attack 5" or 6" Light Bar, or Light Bar from Other Maker

OR 1 pair of

Attack 17mm Round Wafer Headlights

Attack 19mm Rectangle-shaped Wafer Headlights

Attack Halo Headlights

NEW Attack 7-LED Wafer Strip Light

OR

4 sets of Attack Area Lights, initial Attack Headlights, Attack Rock Lights, or Attack 9mm Wafer Lights

Item Developed: 08/04/2023
