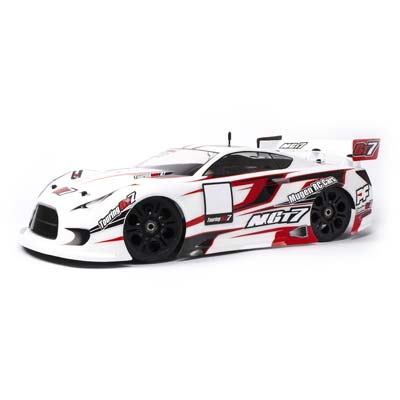

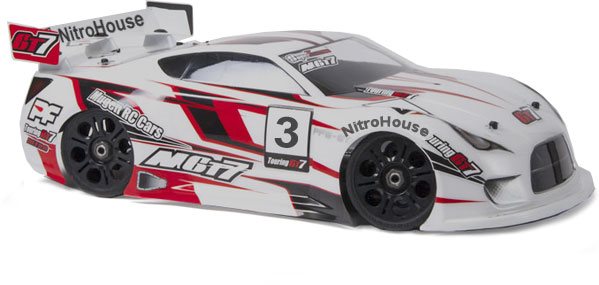

Mugen Seiki Racing MGT7 1/8 GT On-Road Nitro Kit

    This is the Radio Controlled, Glow Powered, 1/8 scale
MGT7 On-Road GT Car Package from Mugen.

**Additional Technical Info Will Be Included When It Appears.**

FUNCTIONS:
Chassis: A7075 aluminum, 0.12" (3mm) thick
Drive: Four wheel with CVA driveshafts
Differentials: Oil-filled straight cut 12T bevel equipments, 42T cone-shaped
    equipments
Shocks: 16mm oil-filled, difficult anodized bodies, specifically created
    springs, 3.5mm size shafts
Shock Towers: A7075 aluminum, 0.16" (4mm) thick
Suspension:
    with 0.20" (5mm) thick A7075 aluminum lower installs for enhanced
    geometry
Transmission: 2-speed, completely adjustable
Clutch: 3-shoe aluminum type with 2-speed clutch bell
Fuel Tank: 5.07oz (150cc)
Front Bumper: Plastic with foam protector
Camber Tie Rods: Adjustable, Camber explains the angle at which the
    tires sit vertically
Steering Tie Rods: Adjustable, Caster/Toe-in is the angle at which
    the tires point inward as viewed from above
Body Mounts: Adjustable to permit fitting of a lot of 1/8 scale on-road
    bodies

CONSISTS OF:
MGT7 On-Road GT Car Package with Instruction Manual

REQUIRES:
Radio: 2-channel with high-speed steering servo
Engine: .21 cu in non-pull start on-road type
Tires: 1/8 scale on-road with foam inserts
Wheels: 1/8 scale on-road type
Receiver Battery: 4.8-7.4V flat or hump NiMH or 1600-2100 LiPo pack
Fuel, starter box, maintenance and track devices

SPECIFICATIONS:
Length: 19.4" (494mm)
Width: 12" (305mm)
Weight: 7.9 lbs (3600 g) approximate
Gear Ratio: 1st 11.43, Second 8.47

REMARKS:
For Replacement Ball Bearings usage:
    Qty. Size Place Qty. Bearing Set
