OS Motors Muffler Extension 761/871

This is the 7/16" Muffler Extension for the
#761 & the #871 OSMG2814 mufflers

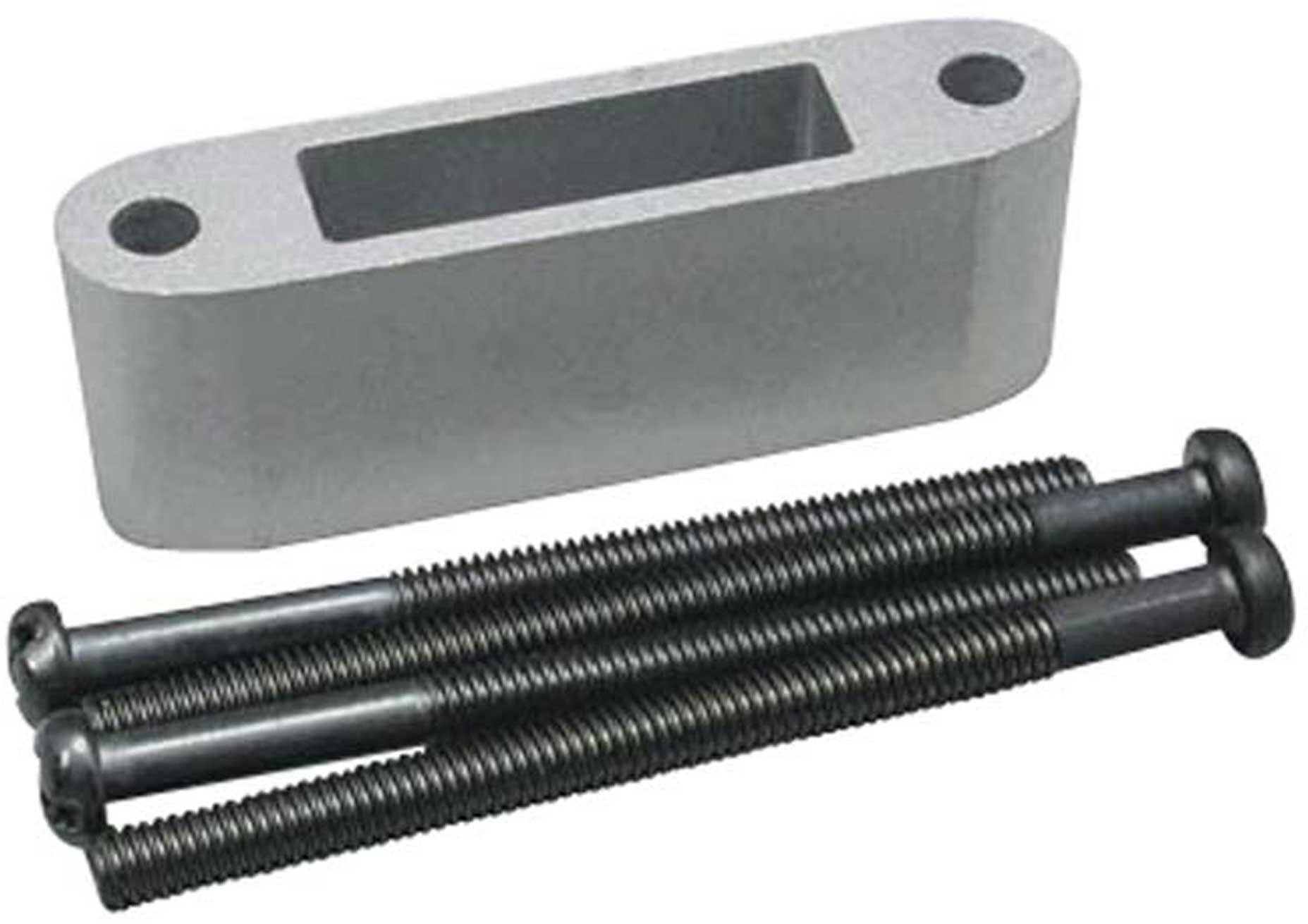

This Muffler Extension is a 7/16" spacer that installs between the muffler
and the exhaust port on the side of the cylinder head. This results in the
muffler being further out from the cowl of the plane. One may choose to use
among the muffler extensions to keep the fuel residue further out from a
treasured paint task or if the aircraft has a big cowl and the muffler isn't really far
enough away from the outside of the cowl.

This fits the: .10FP, .10FP-B, .10FP-BX, .10FP-S,
.12CZ-1, .12CZ-2, .12CZ-R, .12CZ-Z,
.15FP, .15FP-S,

FEATURES:
Natural aluminum building and construction

INCLUDES:
One 7/16" (11.5mm) Muffler Extension
Two 2.5x36mm round phillips head steel screws w/.45 pitch threads
Two 2.5x34mm round phillips head steel screws w/.45 pitch threads

SPECS:
Length: 11.5mm
Width: 33.7mm
Height: 7.6mm
Range between mounting hole centers: 27.5mm
Port Width: 16.6mm
Height: 4.6mm

REMARKS:
For 90° adapter use OSMG2596
