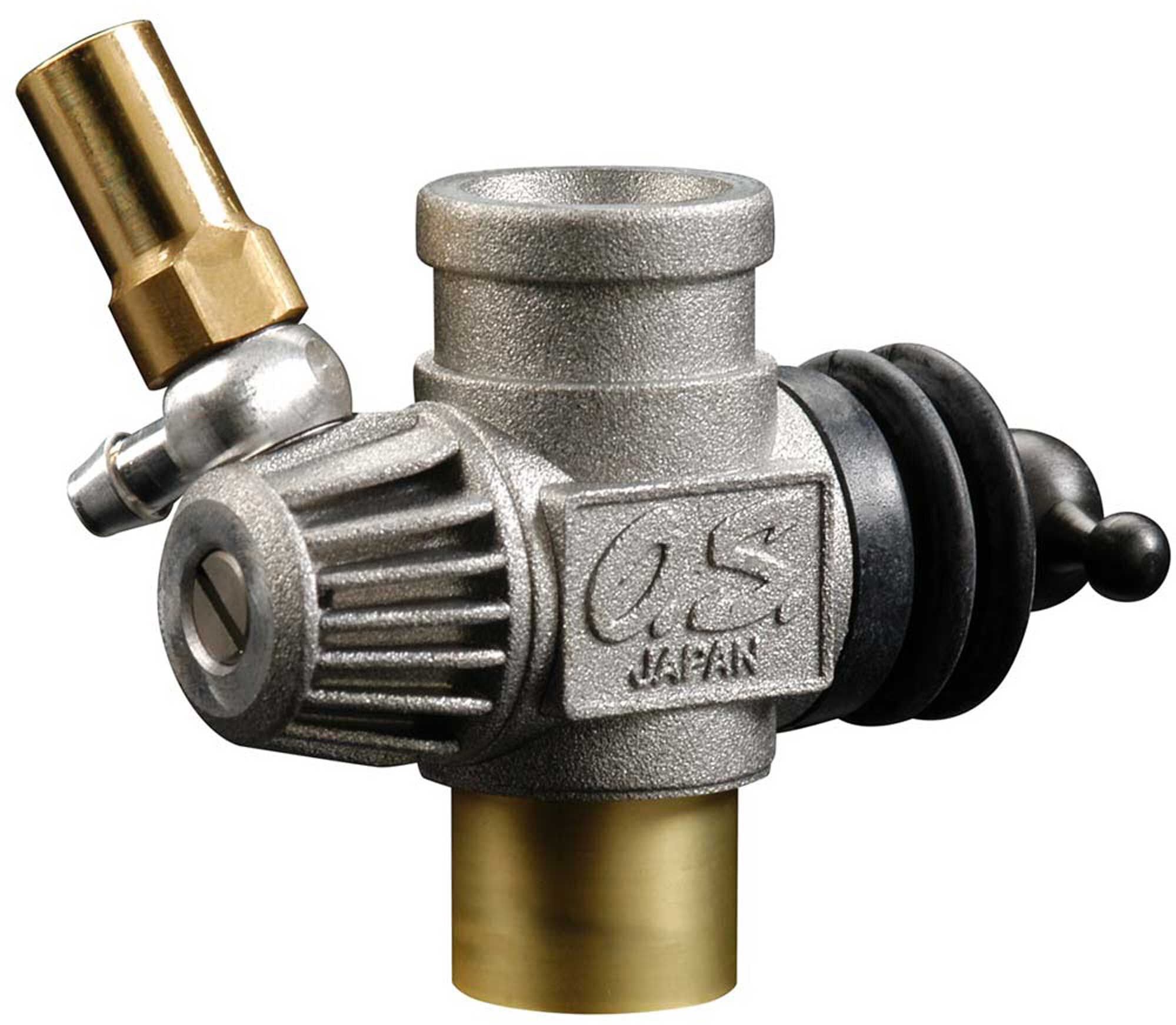

OS Motors Carburetor #11K Slide 18TZ/21TM

This is the Total Carburetor for the O.S. Max .18TM engine.

FEATURES:
3 needle slide valve carburetor with fins to help cool the fuel
    as it goes into the engine

CONSISTS OF:
One Carburetor for the O.S. Max .18TM engine with carburetor to
    crankcase rubber O-ring

NEEDS:
Setting up on engine

SPECIFICATIONS:
Air Intake Diameter: 0.59" (15mm)
Inner throat size: 8.7mm (0.35")

REMARKS:
Needle Settings:
- High Speed Needle (Needle Valve) 2-1/2 turns out from closed
- Mid Range Needle (Mix Control Valve) Screw head is exactly
1/2 turn in from flush with the carb body (pg 22 of manual)
- Low Speed Needle (Metering Needle) Screw head flush with
ball link body (pg 22 of manual)
**This carb includes both the throttle lever for the T-Maxx
and the ball link #5 for the Revo.**

needle settings updated tjt 020205
lever/ball link updated EEW 9/20/05
