OS Motors Carburetor #10ER Rotary 12/15

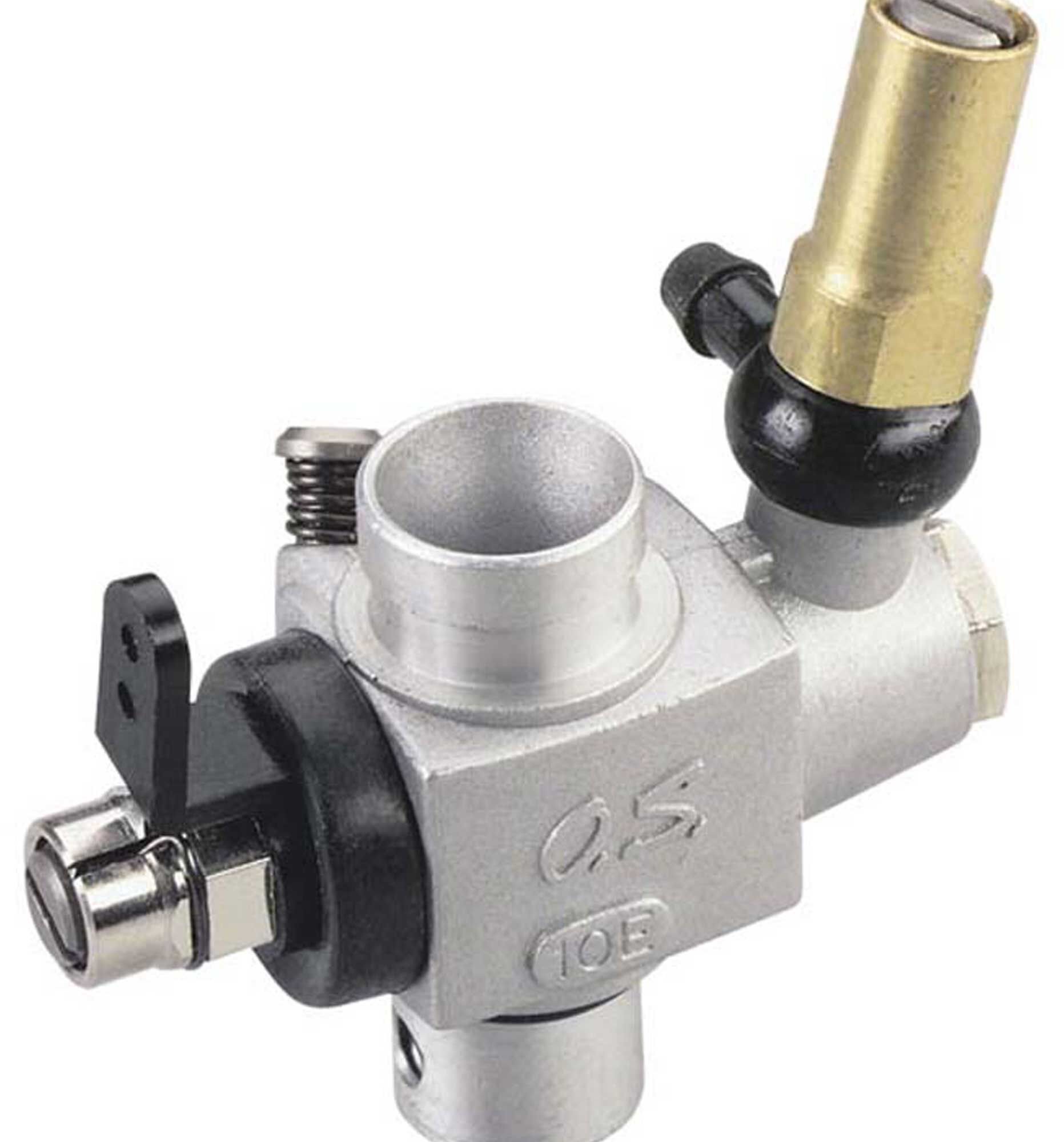

This is the O.S. Max 10E-R Carburetor for the .12CV-R.
This carburetor connects to the engine and mixes the air and fuel
to the appropriate ratio and sends out the mixture to the combustion chamber.

FEATURES:
Changes the 10E carburetor
Aluminum and brass construction with plastic throttle lever and fuel
    nipple.
Completely put together
Rotary throttle operation

INCLUDES:
One O.S. Max 10E-R Carburetor for the .12CV-R Series
One rubber O-ring

NEEDS:
Attaching to engine using Carbohydrate Retainer #21481700 (OSMG3642) and
    connecting fuel line.
Flat head screwdriver for adjusting the needle valves.

SPECS:
Outer Mounting Size: 0.39" (10mm)
Inner Throat Size: .031" (8mm)
Height: 1.78" (45.2mm) including needle valve

REMARKS:
This carburetor just deals with the O.S. Max .12CV-R it uses the pinch
    bolt system to protect to engine and does not have mounting holes
    drilled into the throat.
