Features

Reduced Version of the 1/10th 22T

Mid Motor Configuration

Aluminum Chassis

Threaded Oil Filled Shocks

Completely assembled and ready-to-run

Dynamite 7.4V 2S 650mAh 20C Li-Po Battery

BK Bar Tires with Dish Wheels

Full Ball Bearings (less steering)

Servo Saver

Waterproof electronics*

22 Suspension Geometry

Choice Parts Availability





Overview
Reinvented with modern technology and Group Losi Racing® engineering, the Losi® Mini-T® 2.0 1/18th-scale 2WD Truck honors the heritage of the initial Mini-T with functions and alternatives never imagined in the past. With suspension geometry updated and drawn from the TLR® 22 platform and the inclusion of water resistant* electronics with a 2.4Ghz radio system, everything here takes a step above the Mini's on the marketplace. RC enthusiasts trying to find something little, however with the efficiency of a 1/10 scale lorry will find plenty to like in the Mini-T 2.0. It features a mid-motor setup for better balance, oil filled shocks, aluminum chassis, and a complete variety of alternative parts all in an overall ready-to-run package. You get TLR engineering and efficiency in a 1/18th size package.

*For information on water resistant standards, please refer to the product instruction manual.





Needed to Complete

Nothing! Everything is included.

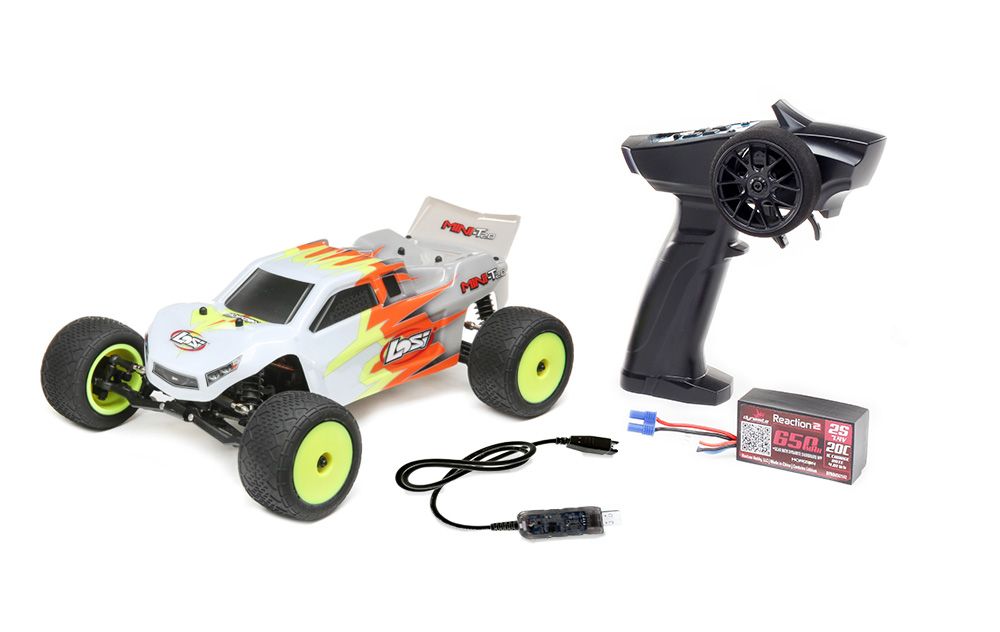

What's in the Box?

(1) Losi® 1/18 Mini-T 2.0 RTR Truck with:

3-CH 2.4GHz Transmitter

ESC/Receiver 2.4GHz

Dynamite® 47T 280 Brushed Motor

Spektrum™ SX107 Micro Metal Gear Servo

Dynamite 7.4V 650mAh 2S 20C EC2 LiPo Hardcase

Dynamite USB 2S LiPo charger

4 AAA batteries (for transmitter)

(1) Item Handbook












Scaled-Down Version of the 1/10th TLR 22T
Back in 2003, Group Losi released the extremely successful Mini-T, which was based on the XXXT platform. Today's Mini-T 2.0 is now based on our TLR 22T platform, making the most of what we have actually discovered throughout the years to make this generation of Mini 2wd trucks unbeatable.




Mid Motor Configuration
The Mini-T 2.0 comes requirement with a mid-motor setup. This not just replicates the 1/10th variation however likewise supplies a better-balanced chassis permitting better efficiency on numerous surfaces and likewise cancels steering and traction.








Aluminum Chassis
The Mini-T 2.0 has been created with a 1.5mm thick 6061-T6 Aluminum chassis plate. The aluminum chassis supplies more strength and durability while vastly improving efficiency.




Threaded Oil Filled Shocks
The injection-molded shocks include threaded shock collars permitting simple preload/ride height changes. In addition, the shock bodies include a bottom loading, re-buildable shock cartridge with dual o-rings to assist keep the oil in the shocks.








Ready To Run
The Mini-T 2.0 comes totally assembled and prepared to rock. Simply install the consisted of AAA batteries in the transmitter, charge the consisted of LiPo battery with the consisted of charger.




Dynamite® Response® 2.0 7.4V 2S 650mAh 20C Li-Po Battery
The Mini-T 2.0 comes geared up with a 2S 650mAh Li-Po Battery for exceptional efficiency and run time.








USB Charger
When we state totally prepared to run, we imply it. The Mini-T 2.0 features a USB charger making charging your battery simple and hassle-free.




2.4Ghz Transmitter and Receiver
With functions like throttle/steering reversing, throttle/steering travel change, the consisted of 2.4Ghz transmitter packs a lot of functions in a small package with the interference-free connection.








BK Bar Tires with Dish Wheels
Front and back “Mini” BK Bar tires replicate among the most popular tires from Group Losi. Injection-molded Dish wheels replicate the factory look of the 22T.




Full Ball Bearings*
The Mini-T 2.0 comes geared up with ball bearings that improve lorry efficiency by lowering drivetrain friction and increased smoother, longer running.
*Less guiding bell crank









Servo Saver
The Mini-T 2.0 features a large three-wire Spektrum metal equipment servo geared up with a servo saver that supplies extra security.




Waterproof* Electronics
All the Mini-T 2.0 components are water resistant, so you can drive in any conditions with no issues.

*For information on water resistant standards, please refer to the product instruction manual.









TLR 22T Suspension Geometry
The Mini-T 2.0's suspension geometry has been derived from the TLR 22T platform offering balanced steering and traction from the optimized race style.




Option Parts
The Mini-T 2.0 has a complete line of alternative parts available from aluminum upgrades, brushless motor, and much more.











Requirements

Approximate Assembly Time: No assembly needed

Ball Bearings: Complete set other than for guiding

Batteries: One 7.4V 650mAh 2S 20C LiPo with hard case

Body: Formed polycarbonate with screen printed graphics

Brakes: Essential with ESC

Charger: 0.5A USB

Chassis: 6061-T6 aluminum 0.06" (1.5mm) thick

Conclusion Level: Ready-To-Run

Differential: Bevel equipment

Drivetrain: 2WD

Gear Pitch: 0.5 Module

Ground Clearance: 0.97" (24mm)

Height: 3.59" (91mm)

Length: 9.16" (232mm)

Motor Size: 280 size, 47 turn

Motor Type: Brushed, Brushed

Pinion: 15T

Radio: Horizon 2.4GHz 3-channel

Servos: Spektrum SX107 micro metal equipment guiding servo

Shock Type: Oil-filled 7mm bore, molded shock bodies

Size/Scale: 1/18

Speed Control: Essential with receiver

Stimulate Gear: 60T

Suspension: Independent

Tire Diameter: 2.18" (55mm)

Tire Tread: BK Bar

Track: 5.91" (150mm) front and rear

Automobile Type: 1/18 scale 2wd truck

Water-Resistant: Yes

Wheel Diameter: 1.46" (37mm)

Wheel Type: Dish

Wheel Width: 1.10" (28mm)

Wheelbase: 6.30" (160mm)

Width: 7.07" (179mm)
