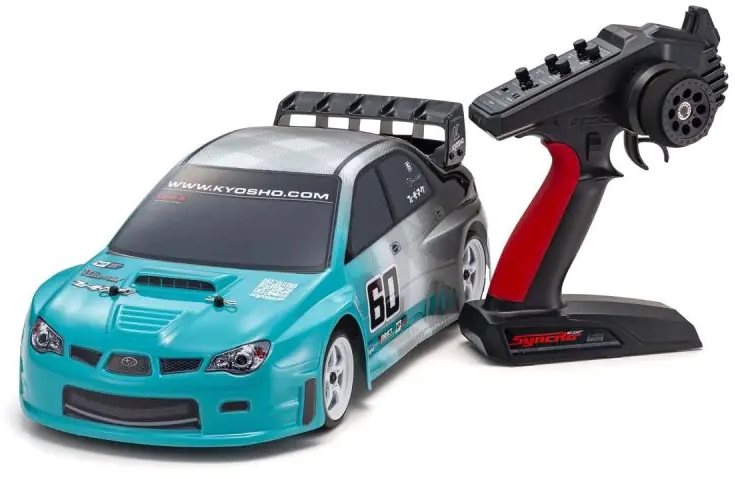

Kyosho Mk2 Fz02-D Subaru Impreza 2006 4Wd Readyset Ep Color Type 1

For the pure enjoyment of R/C car driving, the combination of a beautifully reproduced car body with the FAZER series chassis can't be beaten. Kyosho has taken its standard touring car chassis and given it a full model makeover that has evolved performance levels. A simplified design with fewer parts has improved maintenance efficiency and reduced weight while core strength and rigidity has been increased through new materials and ribbing and stiffeners on front and rear. In addition, the symmetrical chassis design synergizes excellent front-rear balance through the suspension with responsive control, irrespective of power source. Featuring slipper clutch, front & rear gear differentials, oil shocks and full ball bearing specs, the high durability and impact resistance allows drivers to unleash the full potential of the chassis. Brake disc wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body styles and allows the wheelbase to be adjusted to 274mm by replacing some parts (sold separately) for compatibility with other 1/10 scale body styles, in addition the body included. The Readyset package comes fully assembled and includes everything except charger and battery for the chassis, and batteries for the transmitter.

Pre-painted finished body with Kyosho's original coloring with beautiful gradation and flashy colors that are conscious of the drift scene.

On the side of the body, the number 60 is placed to commemorate the 60th anniversary of Kyosho.

The resin drift tires that have both control performance and slide performance are equipped with 5-spoke racing wheels with deep rims that are conscious of the drift scene.

In the initial setting, the vehicle height is raised so that troubles due to gaps can be avoided.

Factory-assembled Readyset package only requires 4 x AA alkaline batteries for the transmitter, and battery with charger for the chassis.

Full ball bearings that reduce drive loss equipped throughout the drive system.

Features KS202W waterproof steering servo.

Sealed differential and transmission deliver reliable performance, even on dusty parking lot surfaces.

Shaft drive full-time 4WD touring chassis.

Equipped with a plated dummy brake disc and a painted brake caliper to improve the sense of scale.

Uses button screws with hexagonal holes in each part. Reliable tightening torque can be applied, and maintenance is possible with even fewer tools.

Since the motor mount has mounting holes according to the pinion gear, troublesome backlash adjustment is unnecessary. Supports from 29T to 37T.

Performance can be further enhanced by installing various optional parts.

Length 456mm

Width(Body width) 205mm

Height 140mm

Wheelbase 260mm

Tread (F/R):174mm

Tires (F/R):63.2x24.2mm

Gear Ratio 6.54:1

Weight 1650g (approx.)

Syncro KT-231P+ transmitter

Motor G14L

Kit Contents:

Completed chassis with R/C radio installed

Factory assembled body complete with color scheme

Syncro KT-231P+ transmitter

Hexagonal wrench

Spanner

Setting change parts

Required for Operation:

4 x AA batteries for transmitter

Battery for chassis (recommended: 7.2V Ni-MH battery)

Recommendation: SPEED HOUSE 7.2V 22HV Ni-MH Battery 71322, SPEED HOUSE 7.2V 36HV Ni-MH Battery 71324

Charger for battery for chassis

Recommendation: SPEED HOUSE C-02B AC PEAK CHARGER 72002B, 7.2V USB Charger for NiMH 72203

Tools
