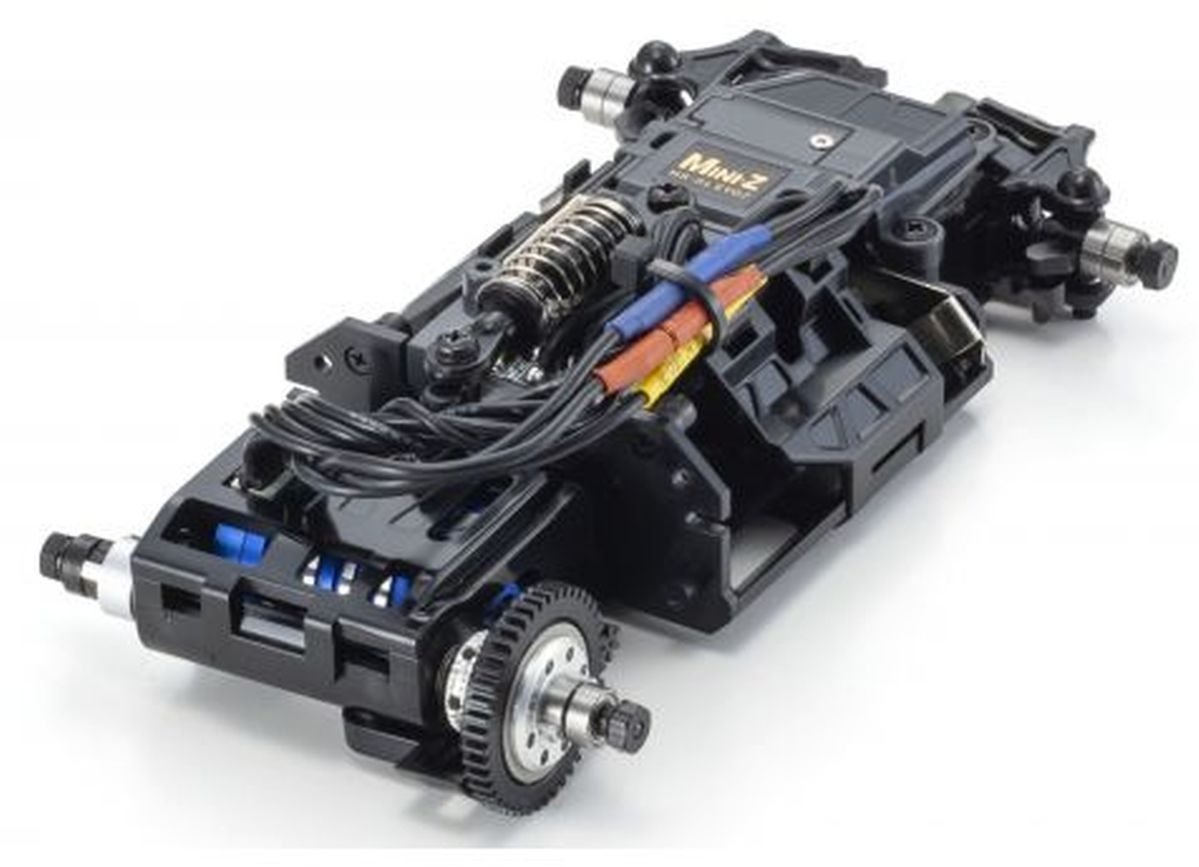

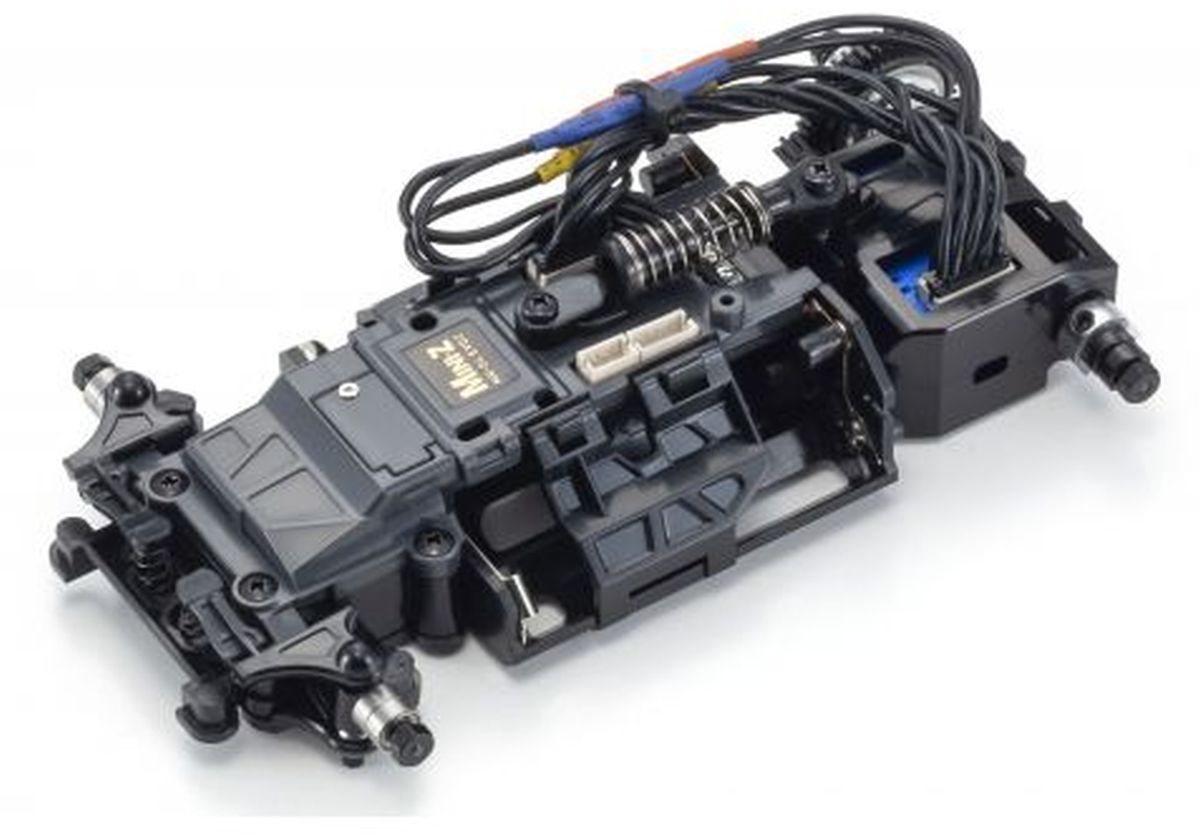

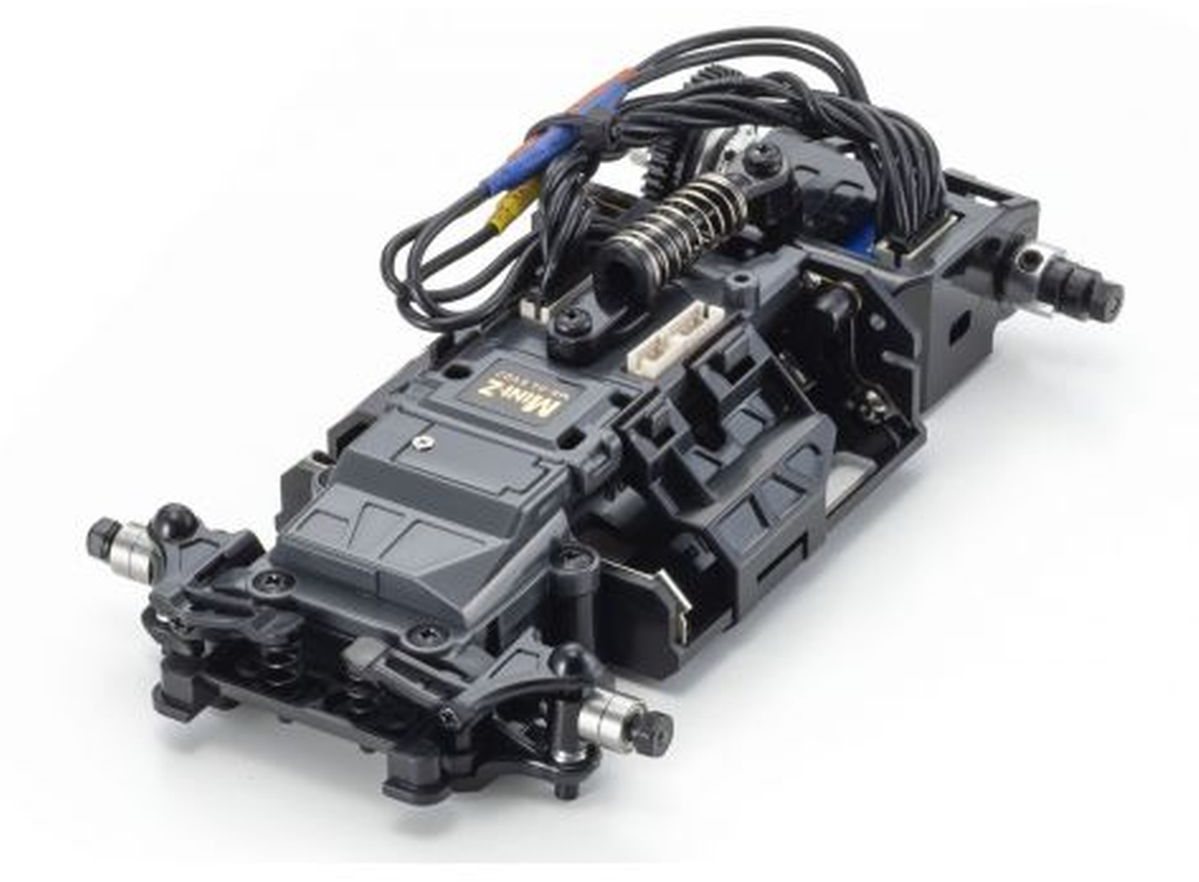

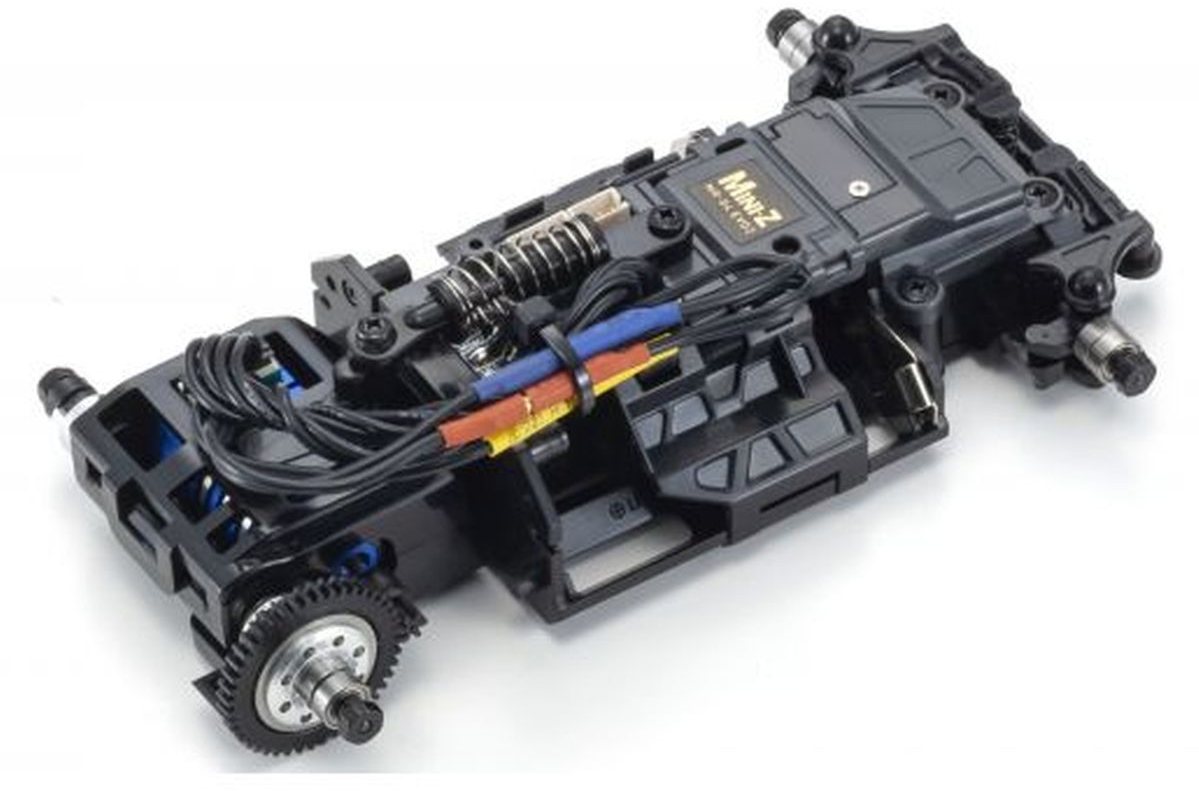

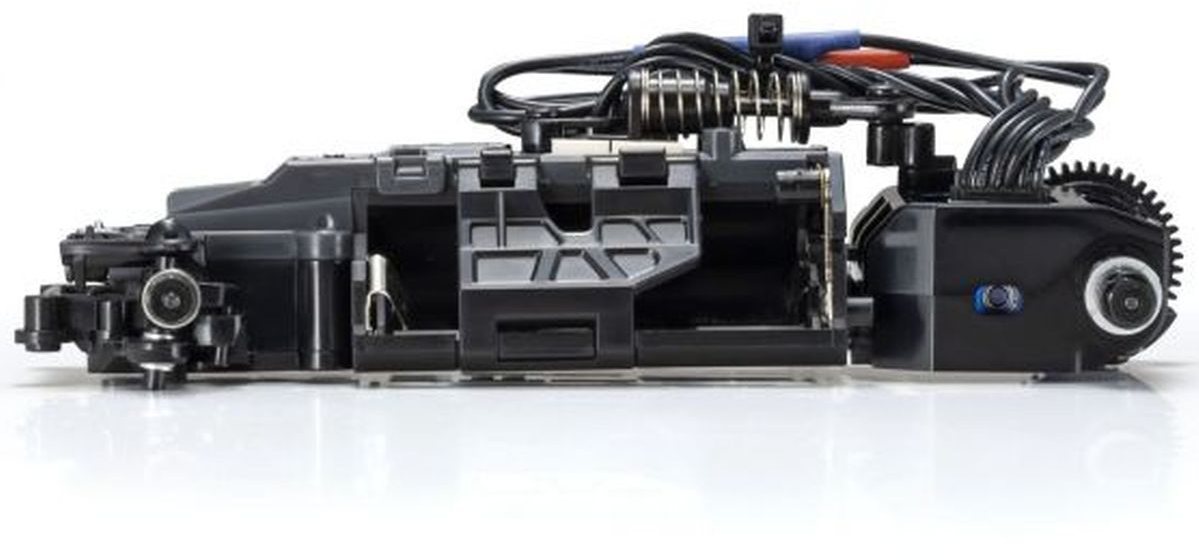

Mini-Z MR-04EVO2 Chassis Set (W-MM / 5600KV)
At the end of 2023, the Mini-Z MR-04EVO2 underwent a full model change for the first time in 14 years. Retaining the proven MR-03 layout, major performance gains were realized with a sensor-equipped brushless motor, redesigned front suspension, and lower battery center of gravity. This chassis set includes the high-rigidity "Front Suspension Arm 2.0" as standard, maximizing the MR-04EVO2's precise handling and stability. The gyro unit is sold separately, allowing greater freedom in setup and tuning. The latest RC unit supports motor RPM control via the I.C.S. Setting Manager, ensuring compliance with 2025 Mini-Z Cup regulations. Power settings can be easily optimized to suit each class. For drivers seeking advanced tuning in a competitive environment, the MR-04EVO2 takes circuit performance to the next level.
Includes:
- MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOUSE KV5600 brushless motor
- Parts set for changing front tread
- 6T, 7T, 8T, 9T Pinion gears
- Wheel wrench
- Tools for pinion gears
- Spare wheel nuts
Required to Complete:
- Transmitter
- Receiver unit (Compatible with EVO/EVO2)
- ASC
- AAA x 4 batteries for chassis
- Batteries for transmitter
- Tires and Wheels
Specifications:
- Length: 124.5mm
- Width: 72~76mm
- Height: 31mm
- Wheelbase: 98.0mm (LL)
- Tread: (F/R) 63.5~65.0mm/61.5~65.0mm
- Tires: (F/R) 25x8.5mm (sold separately)/25x8.5~11mm (sold separately)
- Gear Ratio; 7.3, 6.3, 5.5, 4.9:1
- Weight: 135.5g (Body / tires / wheels not included.)
- Motor: KYOSHO SPEED HOUSE XSPEED 56 (KV5600)
