Injora Purple Viper 1721 Brushless Motor for 1/24 SCX24

Updated on Dec 4, 2024 03:24:52 PM

INJORA Micro Brushless MBL32 ESC & 1721 Purple Viper Motor for 1/24 SCX24

Note:

The motor is only compatible with: 1/24 SCX24
You need to cut the ESC tray to make room for installing the brushless kit.
The ESC is compatible with most of the receiver and remote combinations that with CH2
Never plug the battery upside down, otherwise the ESC will immediately burn out!
Please program the ESC according to the motor specifications! Programming Tutorial
Instruction Manuals


If your transmitter does not control the car well, please try these:

If you are using a 2S battery, please set the BEC output to 6.0V using the DIP switches. Different settings are required for 2S and 3S batteries!
Before powering on, set the transmitter's throttle trim to 0% at neutral.
Increase the distance between the transmitter and the car to avoid signal interference.
Please use a 2S battery of 750mAh or more, or a 3S battery of 450mAh or more. For optimal performance, we recommend using a 3S Lipo battery.
Features:

INJORA MBL32 ESC based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
The MBL32 ESC features a built-in BEC with adjustable output: 6V/7.4V
Smooth and linear at low speeds, powerful and aggressive at high speeds.
Runs more quietly than brushed systems, producing virtually no noise.

1721 Purple Viper outrunner motor, equipped with a mounting plate to mount the motor on the SCX24.
Plug-and-Play Convenience: Includes multiple adapter cables for different battery connectors.


ESC Specifications:

Part Number: MBL32 (MBL: Micro Brushless)
Max.Current: 30A
LiPo Cells: 2-3s
Compatible Motors: INJORA 1721/2204
Applications: 1/18 1/24 RC Crawlers
BEC: Max 3A
BEC Output: 6.0v/7.4V (adjustable by DIP switch)
Motor Connectors: PH2.0 3Pin
Dimensions(L*W*H): 30*22*11mm
Weight: 16g
Waterproof: No


1721 Motor Specifications:

Model Number: 1721
Motor Type: Sensorless Brushless Outrunner
RPM/Volt: 2800KV
Motor Poles: 14
Sine Mode Power: 7
No-Load Current (11.1V): 0.7A
Max Peak Current: 30A
Motor Connectors: PH2.0 3Pin
Dimensions: F16.7*20.9mm
Motor Qutput Shaft: F1.7mm
Motor Pinion: 0.3mod 12T
Weight: 19g
Waterproof: Yes

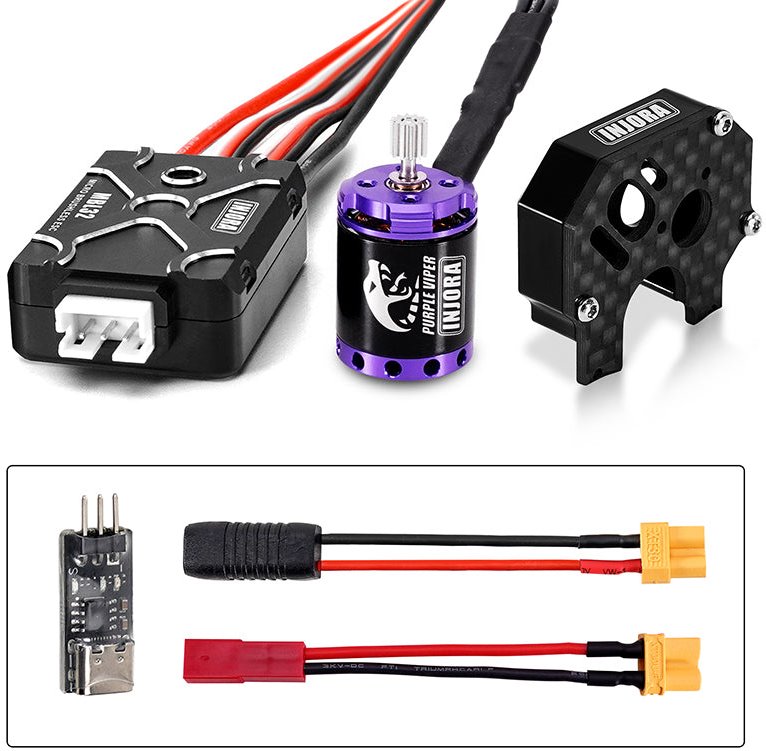

Package List:

1 * Micro Brushless ESC
1 * 1721 Brushless Motor with Pinion & Mounting Plate
1 * Battery Adapter Cable (Female XT30 to Male JST PH2.0)
1 * Battery Adapter Cable (Female XT30 to Male JST-RCY)
1 * Programmer
1 * Instruction Manual
