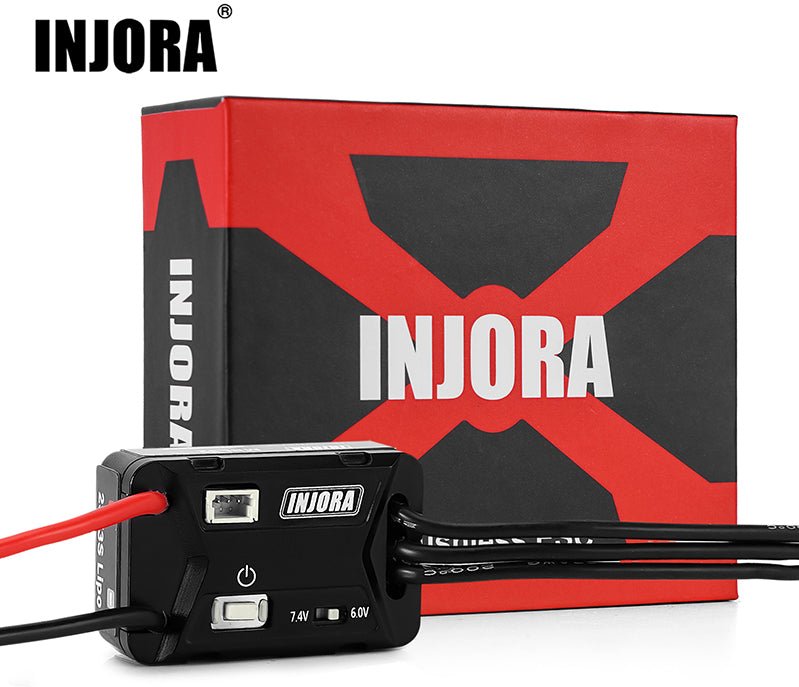

INJORA MBL32 G2 Waterproof Micro Brushless ESC for 1/24 1/18 RC Crawlers TRX4M Ascent18 SCX24
Programming Tutorial Compatible with: INJORA 1721 Purple Viper motors
INJORA 2204 Fat Viper motors
Features:The INJORA MBL32 G2, based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
Smooth and linear at low speeds, powerful and aggressive at high speeds. Runs more quietly than brushed systems, producing virtually no noise
MBL32 G2 features a built-in BEC with adjustable output: 6V/7.4V
Waterproof Design for all-weather performance
Supports PC Programming via USB programmer card. Factory settings are optimized for INJORA 1721/2204 motors—adjustments are not recommended.
Multiple Protections: Low-voltage, fail-safe, and rotor lock protection
Specifications:Part Number: MBL32 G2
LiPo Cells: 2-3S
Continuous Current: 25A
Peak Current: 60A
BEC Output: 6.0V/7.4V adjustable
BEC Current: 3A
Dimensions (L*W*H): 30*19*12mm
Waterproof: Yes
App Tuning: Not Supported
Weight: 0.45oz (13g)
Suggested Applications: 1/18 1/24 RC Crawler car
Package List:1 * Micro Brushless ESC
1 * USB programmer Card
1 * Receiver Connector Cable
1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
1 * Battery Adapter Cable (Female XT30 to Male JST-PH2.0)
1 * Instruction Manual
