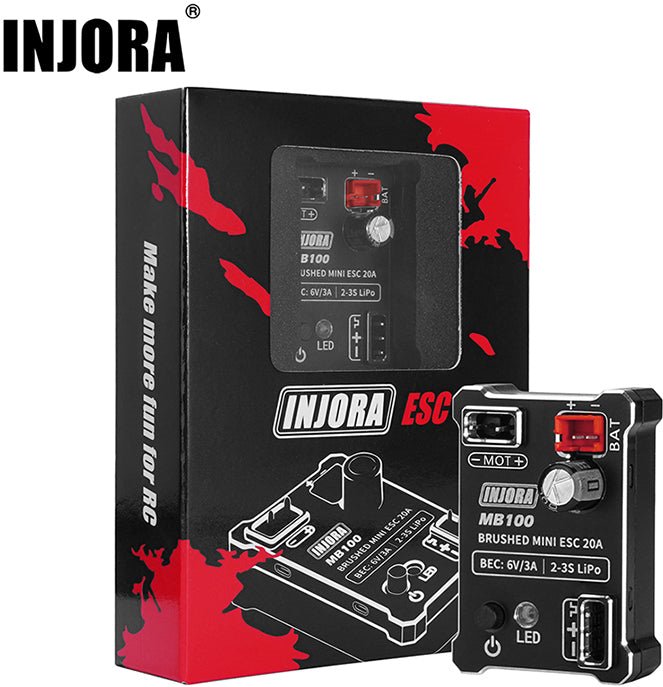

Injora MB100-R80 Brushed Mini ESC 20A for 1/24 1/18 RC Crawlers

Updated on Nov 27, 2024 04:24:13 PM

INJORA MB100-R80 Brushed Mini ESC 20A for 1/24 1/18 RC Crawler SCX24 TRX4M
Note:

This version is 100% forward and 80% reverse!
Compatible with 030/050/130/180/370 brushed motors with these plugs: TRX4M, JST-PH 2.0
Compatible with 2-3S lipo batteries with these plugs: JST-PH 2.0, TRX-4M, JST-XH 2.54
Designed for mini RC crawlers, compatible with various vehicle modifications and builds such as: SCX24/AX24, TRX4m
Compatible with most of the receiver and remote combinations that with CH2 such as: INJORA transmitters, stock SCX24 black V1 ESC, Flysky GT5, etc
These motors are compatable with 3s lipos when paired with our MB100 ESC: INJROA Purple 180 motors


Features

IP67 waterproof ratings fully waterproof design!
Allow superior low speed driving.
Linear throttle response gives you more control and smoother driving experience.
Multiple Protection: battery low-voltage protection, over-heat protection, throttle signal loss protection, BEC over current protection, and short circuit protection.
DEO (Dynamic Electronic Overload) function: provides smoother power delivery, better control, and overload protection for improved performance in RC Crawlers and similar vehicles.
Come with a built in 6V/3A BEC
This ESC is quiet and silent because its sound is ultrasonic. (Ultrasound is simply sound whose frequency is too high to be heard by the human ear)
EQUIPMENT NEEDED (not included): Transmitter & Receiver


Specifications:


Model: INJORA MB100 ESC (M: Mini, B: Brushed)
Continuous / Peak Current: 20A / 100A
BEC Output : 6V/3A (linear Mode)
Motor Type Support : Brushed Motor ( 030 / 050 / 130 / 180 / 370 )
Battery Cells : 2-3S Lipo
Sze: 38mm*26.5mm*11mm
Weight : 15g


Package List:

1 * Micro RC Car ESC
1 * Receiver Connect Wire (JR Plug)
1 * Motor Adapter Cable (Female TRX4M to Male JST-PH 2.0)
1 * Battery Adapter Cable (Female JST-PH 2.0 to Male TRX-4M)
1 * Battery Adapter Cable (Female JST-PH 2.0 to Male JST-XH 2.54)
1 * Instruction Manual
