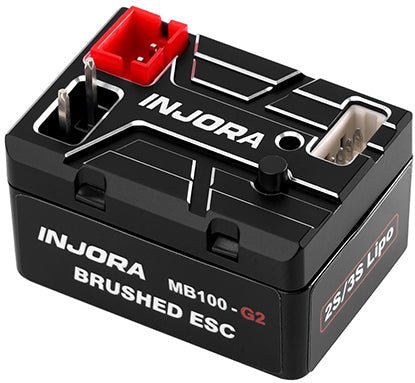

INJORA MB100 G2 Waterproof Brushed ESC 40A for 1/24 1/18 RC Crawler SCX24 TRX4M
Note:Compatible with SCX24, TRX4M, Ascent-18, etc.
Radio system: Not compatible with the stock SCX24 / TRX4M/ Ascent-18 radio systems. Requires a new transmitter and receiver (with CH2).
What's New in G2?IP67 Waterproof Rating – Upgraded sealing for reliable performance in wet conditions
More Compact Design – Smaller footprint for easier installation
App-Based Tuning – Adjust parameters via mobile app for a more customizable setup
Features:1. IP67 waterproof design
Fully waterproof design to adapt to various climate conditions. Note: After immersion, promptly clean and dry the ESC to prevent connector oxidation.
2. Wireless Bluetooth & Smart App Tuning
Built-in Bluetooth for easy adjustments—no extra devices needed! Enjoy real-time tuning, data logging, and firmware updates via the
INJORA Link app. (iOS: Download from the App Store; Android: Get it on Google Play.)
3. Supports AUX parameter adjustment
Features AUX parameter adjustment via the auxiliary channel, allowing parameters to be mapped and adjusted in the app.
4. Multiple protections
Low Battery/Undervoltage Protection: Issues a warning and limits power output when the battery voltage drops below the set threshold.
Overheat Protection: Issues a warning and cuts off power output when the ESC temperature reaches the preset limit.
Overvoltage Protection: Issues a warning and significantly limits or cuts off power output when the input voltage exceeds the ESC's rated voltage range.
Throttle Signal Loss Protection: Applies braking immediately when the receiver's PWM signal continuously deviates from the normal range or is lost, preventing a runaway condition.
Specifications:Model: MB100 G2
Waterproof: Yes
Continuous / Peak Current: 40A / 100A
Motor Type Support: Brushed Motor (030 / 050 / 130 / 180 / 370)
Main Applicable Scales: 1:18 / 1:24
Battery Cells: 2–3S LiPo
BEC Output: 3.0–8.4V, Continuous 3A / Peak 6A
Size: 25.2×18.3×14.0mm
Weight: 10g
Package List:1 × MB100 G2 ESC
1 × Receiver Connect Cable (JR Plug)
1 × Motor Adapter Cable (Female TRX4M to Male JST-PH 2.0)
1 × Battery Adapter Cable (Female JST-PH 2.0 to Male TRX-4M)
1 ×
MB100-G2 Instruction Manual- Injora MB100 G2 Brushed ESC 40A for 1/24 1/18 RC Crawlers
