Injora Fat Viper 2204 Brushless Outrunner Motor for 1/18 TRX4M

Updated on Sep 11, 2024 12:12:47 PM

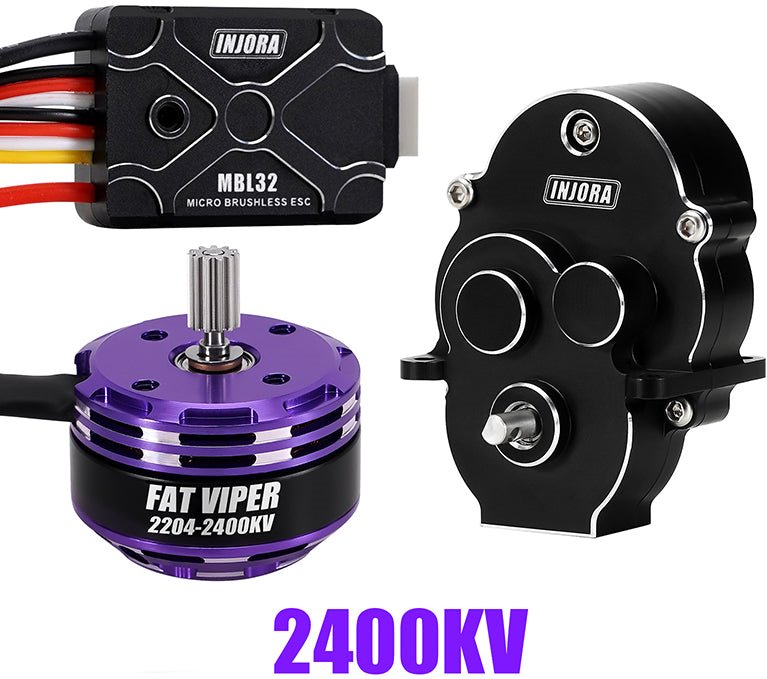

INJORA Fat Viper 2204 Brushless Outrunner Motor & Transmission for 1/18 RC Crawler TRX4M

Note:

Transmission: Compatible with INJORA 370 transmission. Not compatible with stock transmission!
ESC: Compatible with INJORA MBL32 brushless ESC. Not compatible with stock ESC!
3S batteries are highly recommended for high torque
The higher the KV value: the higher the speed, the lower the torque


Features:


Smooth and linear at low speeds, powerful and aggressive at high speeds.

Runs more quietly than brushed systems, producing virtually no noise.

2204 Fat Viper Outrunner Motor will give your car a better driving performance.


MBL32 ESC Specifications:


Part Number: MBL32
Max.Current: 30A
LiPo Cells: 2-3s
BEC: Max 3A
BEC Output: 6.0v/7.4V (adjustable by DiP switch)

Motor Connectors: PH2.0 3Pin

Dimensions(L*W*H): 30*22*11mm

Weight: 16g
Waterproof: No

The ESC is compatible with most of the receiver and remote combinations that with CH2
Instruction Manuals
Please be sure to adjust the MBL32 ESC settings according to the parameters of the 2204 motor as detailed in our Programming Tutorial
Never plug the battery upside down, otherwise the ESC will immediately burn out!


2000KV Motor Specifications:


Model Number: 2204

Motor Type: Sensorless Brushless Outrunner

RPM/Volt: 2000KV

Motor Poles: 14

Sine Mode Power: 7
Max Power: 2000W

No-Load Current: 0.5A

Max Peak Current: 45A

Motor Connectors: PH2.0 3Pin

Dimensions: F28*19.2mm

Motor Qutput Shaft: F2mm

Motor Pinion: 0.5mod 12T

Weight: 28g


2400KV Motor Specifications:


Model Number: 2204

Motor Type: Sensorless Brushless Outrunner

RPM/Volt: 2400KV

Motor Poles: 14

Sine Mode Power: 7

Max Power: 2500W

No-Load Current: 0.7A

Max Peak Current: 50A

Motor Connectors: PH2.0 3Pin

Dimensions: F28*19.2mm

Motor Qutput Shaft: F2mm

Motor Pinion: 0.5mod 12T

Weight: 28g


Transmission Specifications:


Housing Material: Aluminum

Gears Material: Stainless Steel

Internal Gears: 24.4:1 gear set, underdrive 32%


Package List:


1 * Fat Viper 2204 Brushless Motor

1 * Motor Pinion 11T
