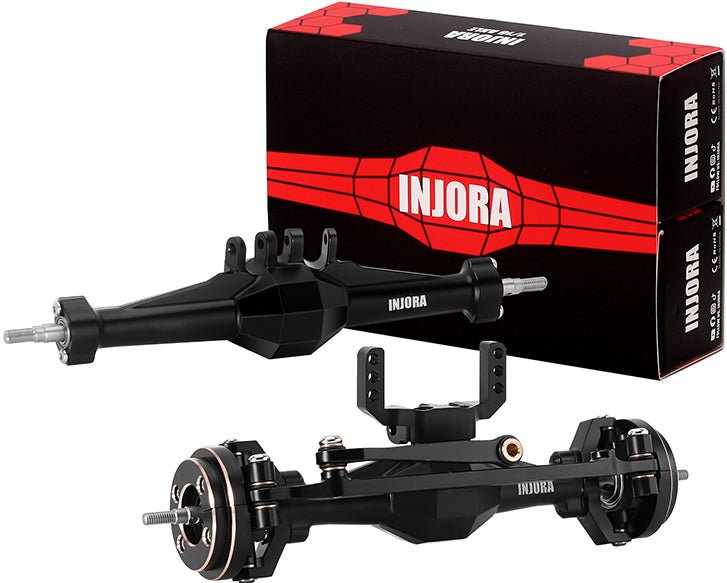

INJORA +4mm Diamond Axles with Lay Down Servo Mount & Links for 1/18 TRX4M
Note:


Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock. Compatible with INJORA Universal chassis
Not compatible with original TRX4M size dogbone shafts as the axle housings are 4mm extended per side.
Compatible with both INJORA and stock TRX4M upgrade parts: gears, C hubs, steering knuckles, chassis links, drive shafts.

Only compatible with these servos: Stock TRX4M servo, INJORA 7kg servo INJS2065 (please use the bushings), INJORA 11kg servo INJS11


Features:


Diamond shaped pumpkin for more realistic scale look.
Equipped with a servo-on-axle lay down servo mount that lowers the center of gravity.
2 short drag links optional

Pre-assembled complete axles. Please grease the axles before installation.
+4mm axles increase the width of each side by 4mm, increase total length by 8 mm.
The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened.
4mm extended desgin provides better stability and climbing performance
Come with Hardened CVD shafts, steel 12/24T gears, 5mm(+1mm) brass wheel hexes and nuts.


Specifications:


Housing Material: Aluminum
Gear Material: 20CrMo Alloy Steel
CVD Shaft Material: Hardened Steel
Gear Ratio: 24/12=2:1 (Same as Stock)
Total Length: 122mm (4.80in)
Front Axle Weight: 62g (2.19oz)
Rear Axle Weight: 42g (1.48oz)
