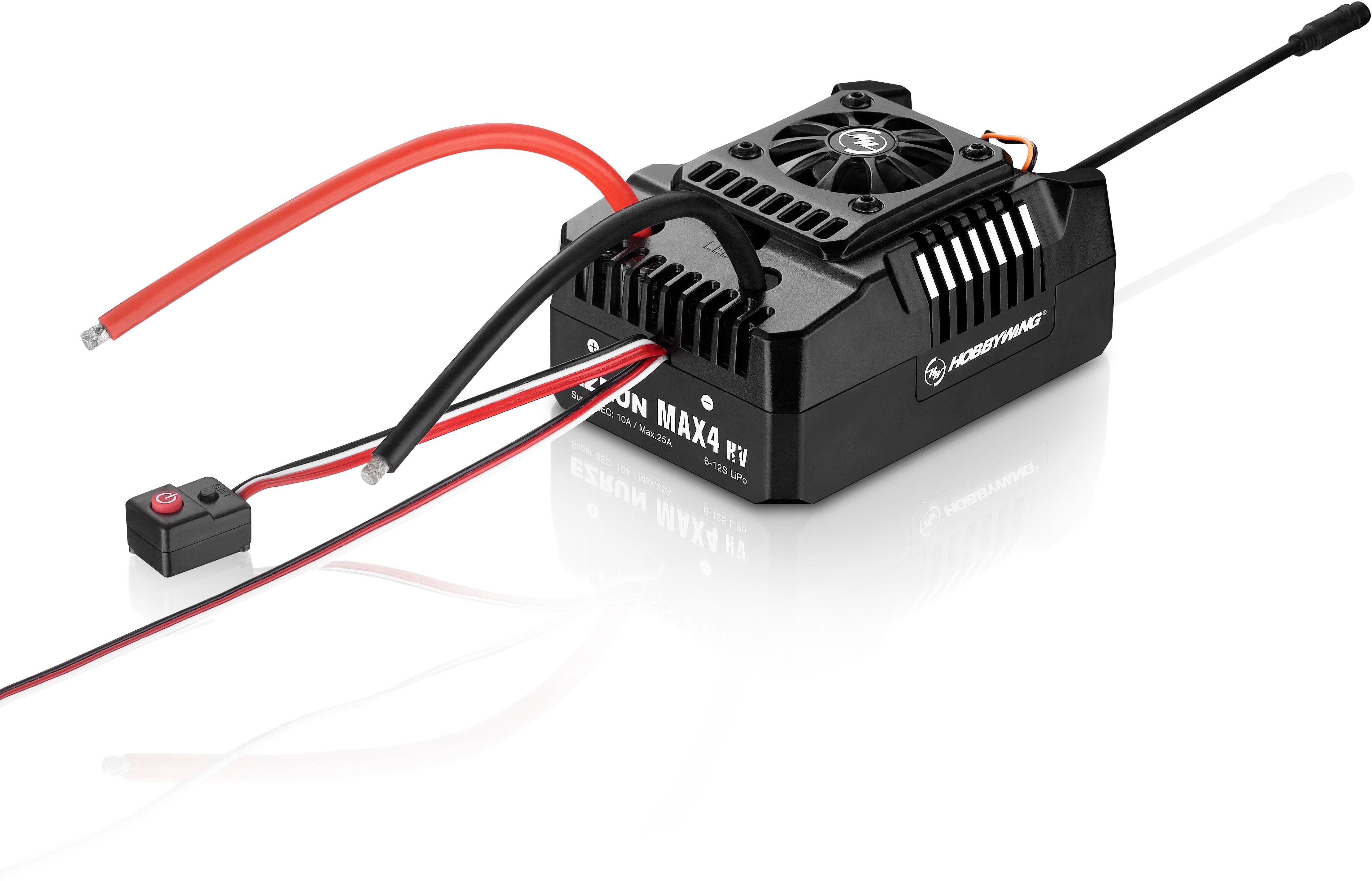

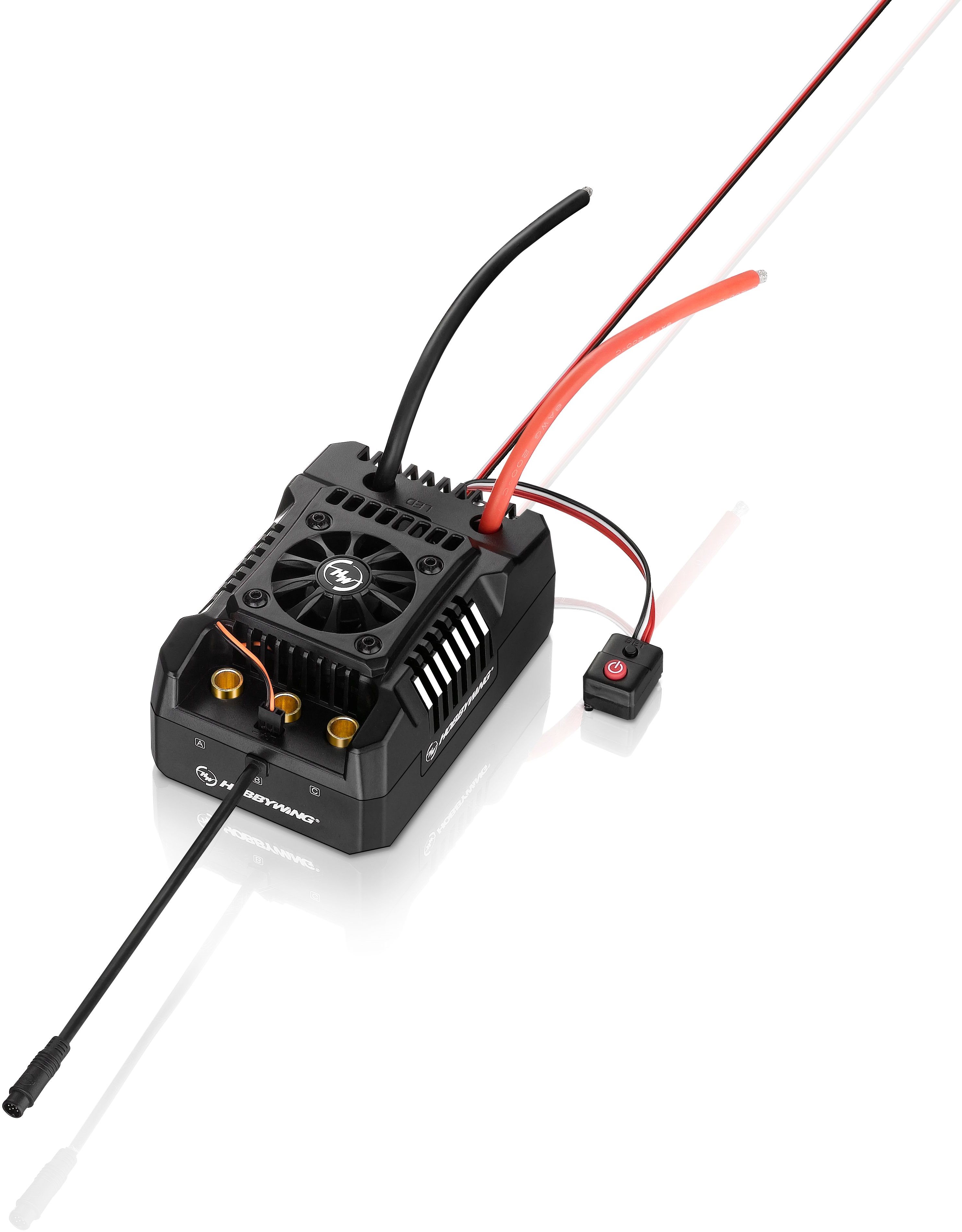

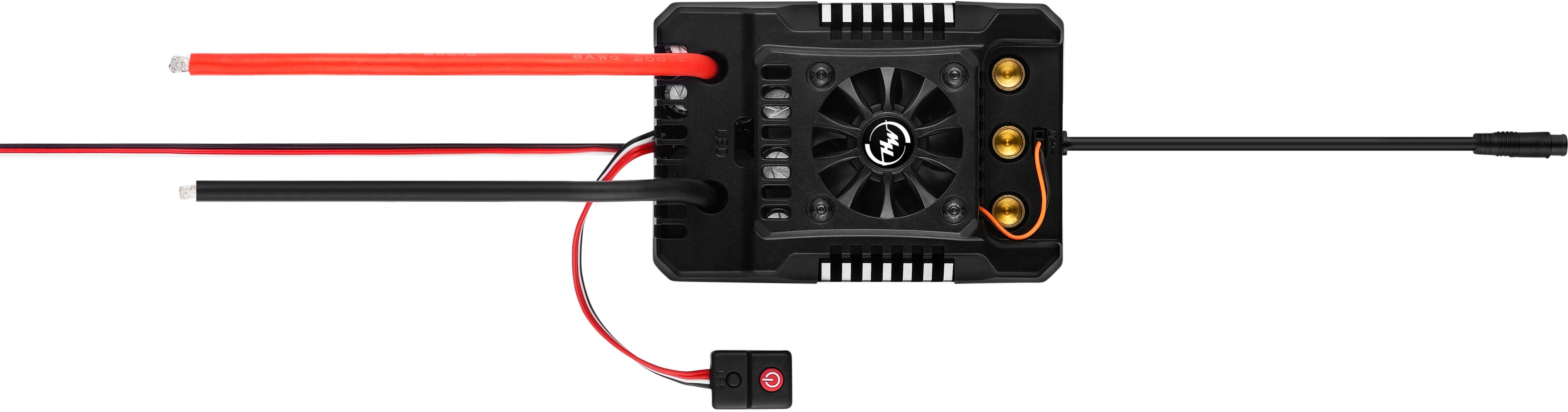

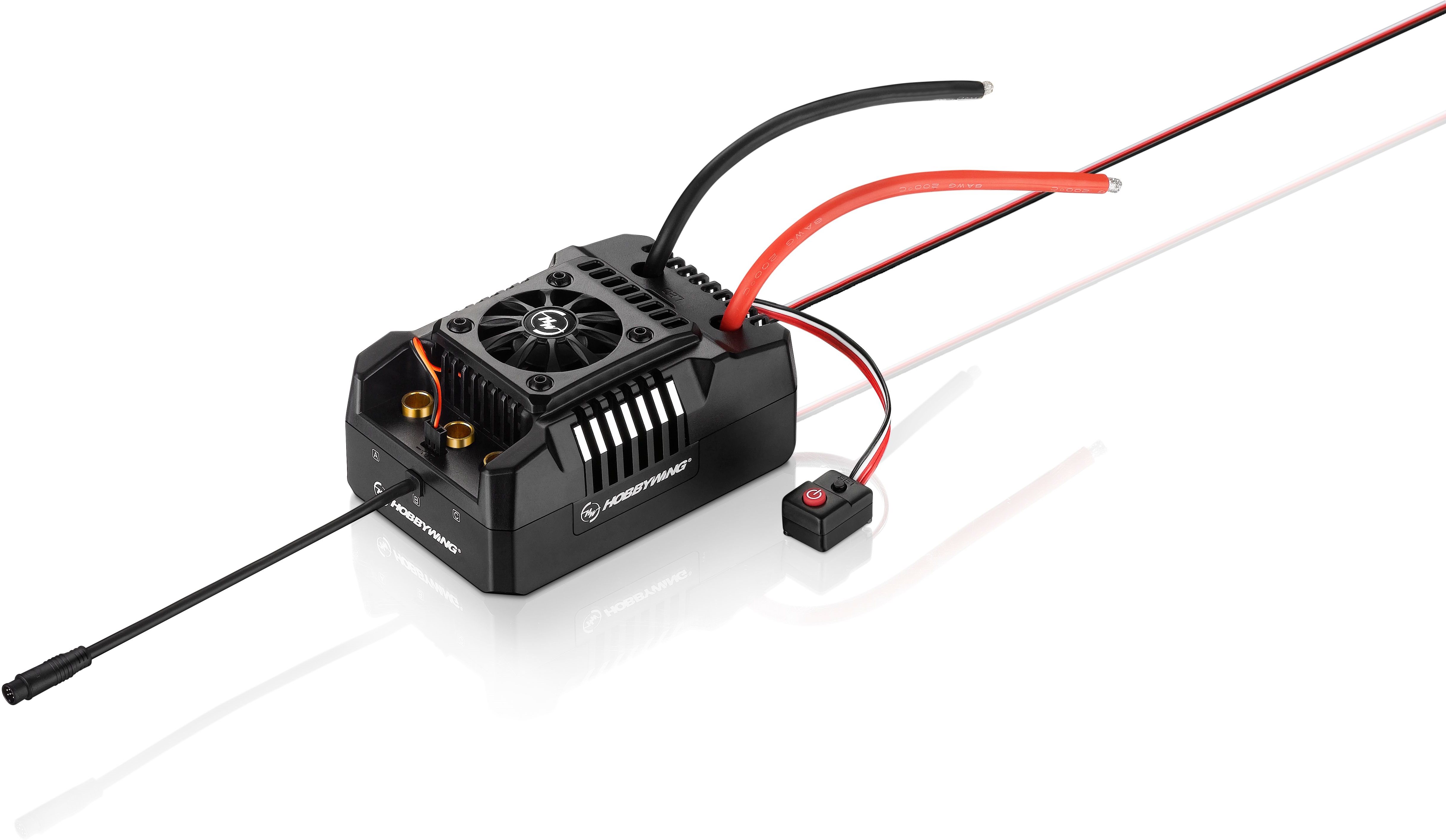

HOBBYWING Ezrun Max4 Esc

Model: HOBBYWING 30104002
Dist. #: HWI30104002 SKU: HWI30104002

Be the first to review this product. (Write Review)

Shipping: In Stock For Shipping
Store Pickup:

South Jordan, UT
Available Now!

List Price:	$636.00
Price:	$499.99
You Save:	$136.01 (21%)

This item will earn you 500 reward point(s).
500 points = $10.00 off your next order. Learn More

Updated on May 23, 2025 07:59:29 PM

Ezrun Max4 Esc...

Ezrun Max4 ESC

World's Largest : 1/4 - 1/5th MEGA RC vehicle

Off-Road, Truggy, and Beast

Functions:

The ESC uses a special procedure, coupled with an ingenious water resistant design, to increase waterproofing and dust-proofing performance in different environments. It is simple to deal with the severe conditions consisting of sediment, ice, snow, and water accumulation.

Built-in ultra-powerful switch mode BEC with a continuous current of 10A, an instantaneous 25A, and support for 6V/7.4V/8.4V switching, supporting a wide range of powerful and high-voltage servos.

Equipped with the most innovative and safe electronic switches. The conventional mechanical switch safeguards and prevents dust, humid and other severe environments, contact rust, and violent effect (such as flying slope landing)

Built-in fire-proof circuitry to safeguard the battery plug, while efficiently preventing damage to the case from electrical stimulates (fingers).

Multiple protection functions: battery low voltage protection, ESC and motor get too hot protection, signal loss protection, and current protection.

Specifications:

Scale Vehicles 1/4 - 1/5th

Motor Mode Sensored and sensorless brushless motor

Motor Limit With 12S Lipo: KV=600 70125 size motor

BEC Output 6V / 7.4V / 8.4V adjustable, continuous current 10A (Switch-mode)

Size (L.W.H) mm 125 x 85 x 61.7mm

Weight (g) 775.4g

Product Created: 04/25/2022
