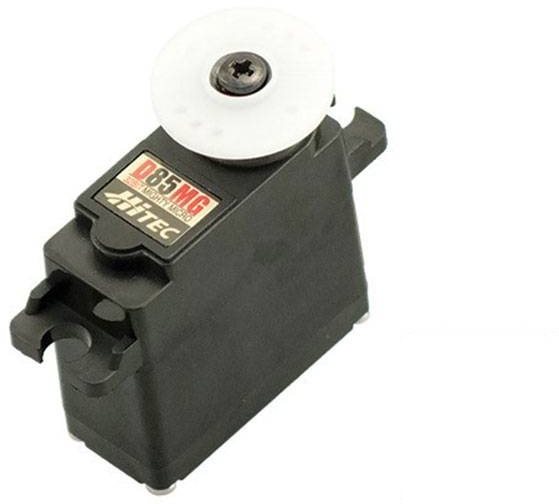

Hitec D85mg 32 Bit Premium Metal Gear Micro Servo .13Sec/60Oz @ 6.0V

Engineered with modern D-Series innovation, this "micro but magnificent" servo is an upgrade from the popular HS-5085MG. With soft-start allowed circuitry, 4096 high-resolution and a long-life potentiometer, the D85MG allows for smooth and decisive motion and accuracy. Programmable application-specific criteria supply the ultimate in optimum servo performance.

Ideal for 3m gliders; < 40="" oz.="" 3d="" airairplanes;="">< 70="" oz.="" scale="" planes="" and="" 1/16="" or="" smaller sized="" surface="" automobiles="" (no="" internal="" combustion="" engines,="" electric="">

Efficiency Specifications

Running Voltage Variety (Volts DC) 4.8V ~ 6.0V

Speed (Second @ 60 degrees) 0.17 ~ 0.13

Maximum Torque Variety oz. / in. 50 ~ 60

Maximum Torque Variety kg. / cm. 3.6 ~ 4.3

Present Draw at Idle 3 mA

No Load Operating Present Draw 290 mA

Stall Present Draw 2,150 mA

Dead Band Width 2 microsecond

Physical Specs

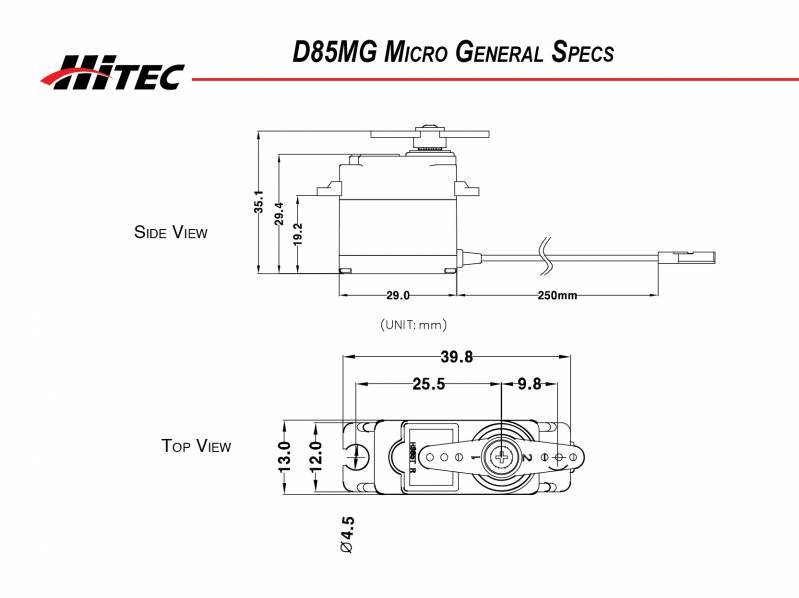

Dimensions (Inches) 1.14 x 0.51 x 1.18

Dimensions (Metric) 29.0 x 13.0 x 30.0

Weight (Ounces) 0.77

Weight (Gram) 21.9

Circuit Type 32bit Programmable Digital

Motor Type 3 Pole Metal Brush Ferrite

Equipment Material Metal

Bearing Type Top Ball Bearing

Output Shaft Standard 24

Case Material Plastic

Dust / Water Resistance N / A

Port Gauge (AWG) / Hair Count 28 / 20
