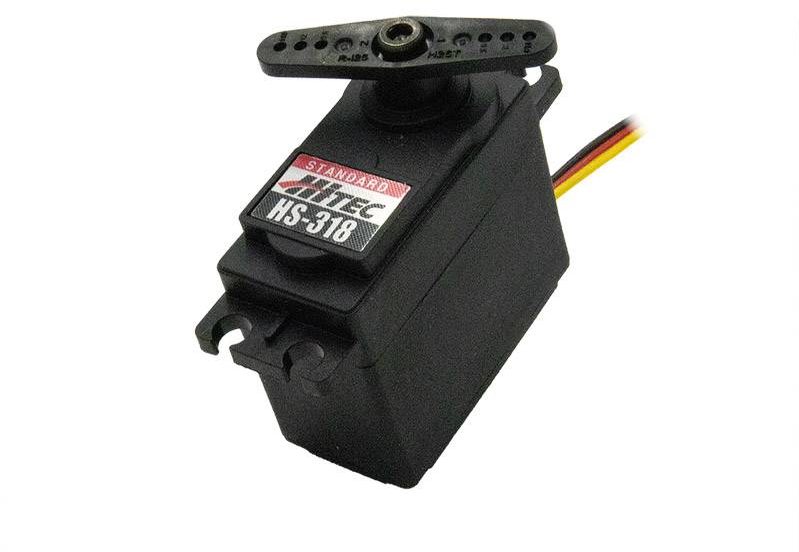

HS-318 Standard Economy Analog Sport Servo, 25 Tooth Spline
The HS-318 sport servo provides the novice modeler all the performance and reliability you would expect to find in a more expensive servo. Combined with a 25 tooth spline, precise resin gears and SMT circuitry, the HS-318 represents a remarkable value in today's R/C market.
Accessories:
Nylon Gear Set
Plastic Case Set
Applicable Horns
Radio Control Applications:
Parkflyer: N / A
Sport Plane: 50 - 64 oz.
Sailplane: N / A
3D Performance: N / A
Scale: 50 - 64 oz.
Electric Helicopter: N / A
Gas Helicopter: N / A
On Road: 1/8th
Monster Truck: 1/8th
Buggies: 1/8th
Truggies: 1/8th
Short Course / Truck: 1/8th
Crawlers: 1/8th
Sail Boat: 1-2 meter
Power Boat: 1/10th
Features:
- Low Cost Standard Size Servo
- 25-Tooth Output Spline
- Reliable Three-Pole Ferrite Motor
- Durable Resin Gears
- Popular Selling Servo
Specifications:
- Operating Voltage Range (Volts DC): 4.8V ~ 6.0V
- Speed (Second @ 60deg): 0.19 ~ 0.15
- Maximum Torque Range oz. / in.: 42 ~ 51
- Maximum Torque Range kg. / cm.: 3.0 ~ 3.7
- Current Draw at Idle (@ 6V): 8.0mA
- No Load Operating Current Draw (@ 6V): 180mA
- Stall Current Draw (@ 6V): 800mA
- Dead Band Width: 5 us
- Dimensions (Inches): 1.58 x 0.79 x 1.46
- Dimensions (Metric): 40.0 x 20.0 x 37.0
- Weight (Ounces): 1.52
- Weight (Gram): 43.0
- Circuit Type: Analog
- Motor Type: 3 Pole Metal Brush Ferrite
- Gear Material: 4 Resin
- Bearing Type: 1 Resin Bushing
- Output Shaft (type / 0mm): Standard 25
- Case Material: Plastic
- Dust / Water Resistance: IP4X
- Connector Gauge (AWG) / Strand Count: 24
