Hangar 9 Ultra Stick 30cc ARF

Features

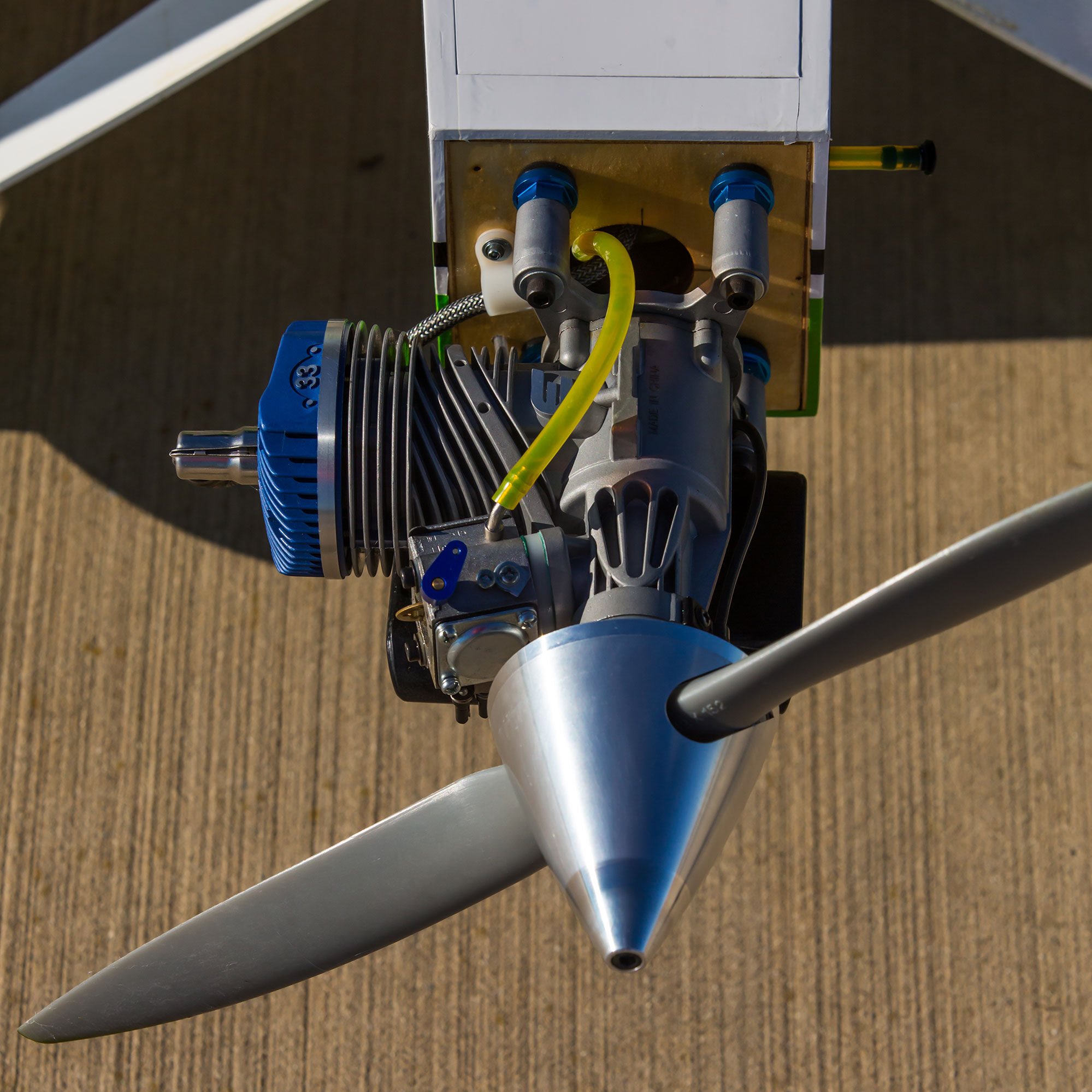

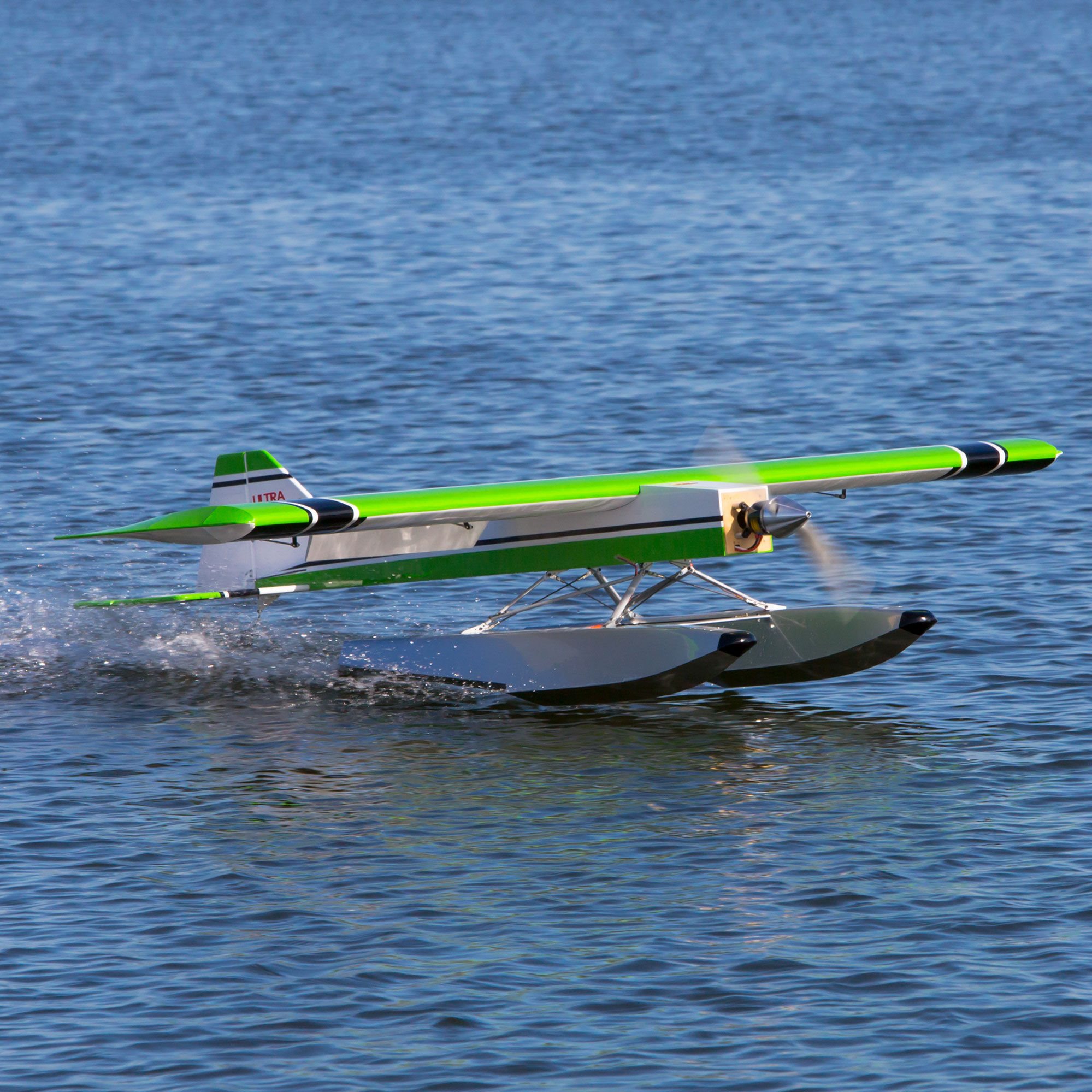

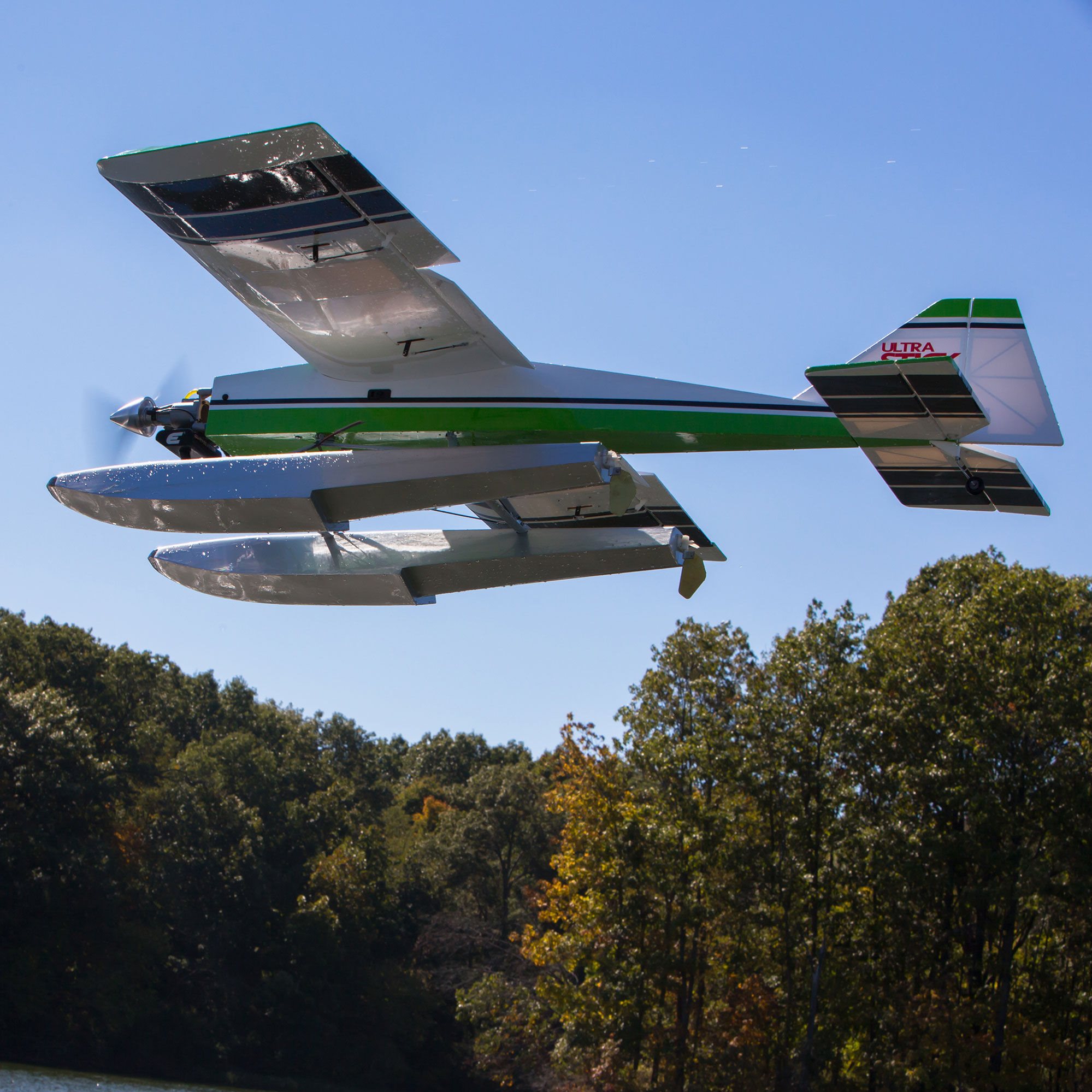

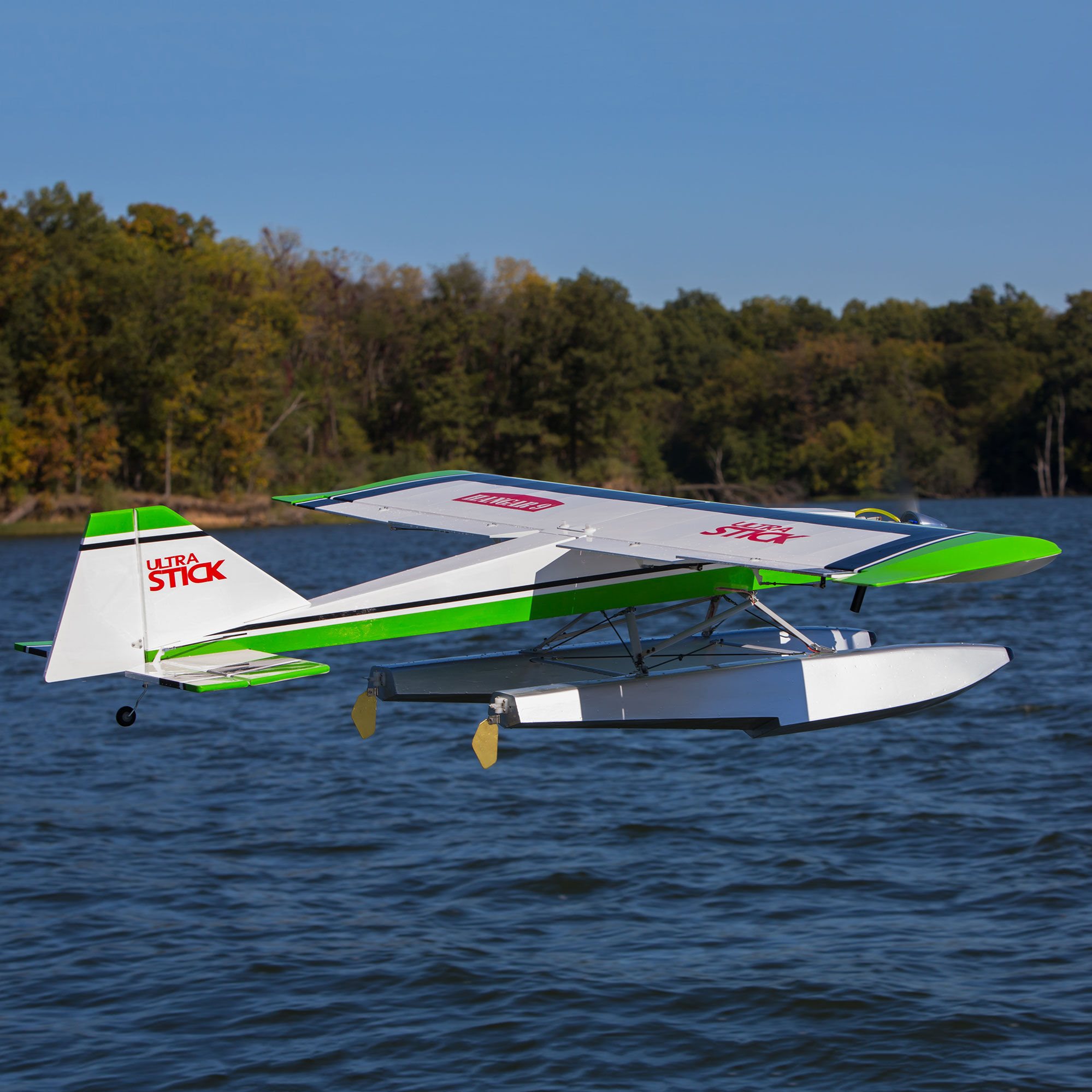

Exceptional flight efficiency: attempted and real Ultra Stick designFlaps for broadened flight envelopeCovered in real UltraCote™Tail dragger landing equipment contributes to its sportier looksLarge, double beveled control surfacesTwo piece plug in wings with aluminum tube offers easy transportation and assemblyLightweight balsa/balsa-plywood building and construction that's strongFloat-ready—hard points for mounting the Garage 9® 1/5-scale Float Set (offered independently) are currently developed into the fuselageFinished fiberglass wheel pants match UltraCote colorsReady to install the Development® 33GX Gasoline EngineElectric motor install included makes it EP friendlyComplete quality hardware included




Introduction


The first Garage 9® Ultra Stick™ ARF changed the Stick category with ingenious style twists that truly enlivened efficiency such as a large, double beveled control surface for 3D flight, extra-large control surface areas and optional quad flaps. Building on the legacy of this popular style, the Ultra Stick 30cc ARF offers intermediate to skilled pilots a giant-scale sport plane with a wide flight envelope. It includes durable building and construction and an abundance of power alternatives so you can make it as mild or wild as you want. As with its predecessors, the flaps and ailerons are double-beveled so you can benefit from flaperon and crow blends. These control surface areas, together with the rudder and elevator, have actually been oversized for even much better 3D ability than before. Hardware and mounting alternatives for gas and electrical power are included. You can even include floats (offered independently). Enjoy an envigorating blend of sport-flying fun with this superbly crafted ARF that more than measures up to its name.

Video Introduction









Specifications


Wingspan: 80.75" (205 cm)
Overall Length: 74" (188 cm)
Wing Location: 1360.3 sq in (87.76 sq dm)
Flying Weight: 12-14 pounds (5.4 - 6.35kg)

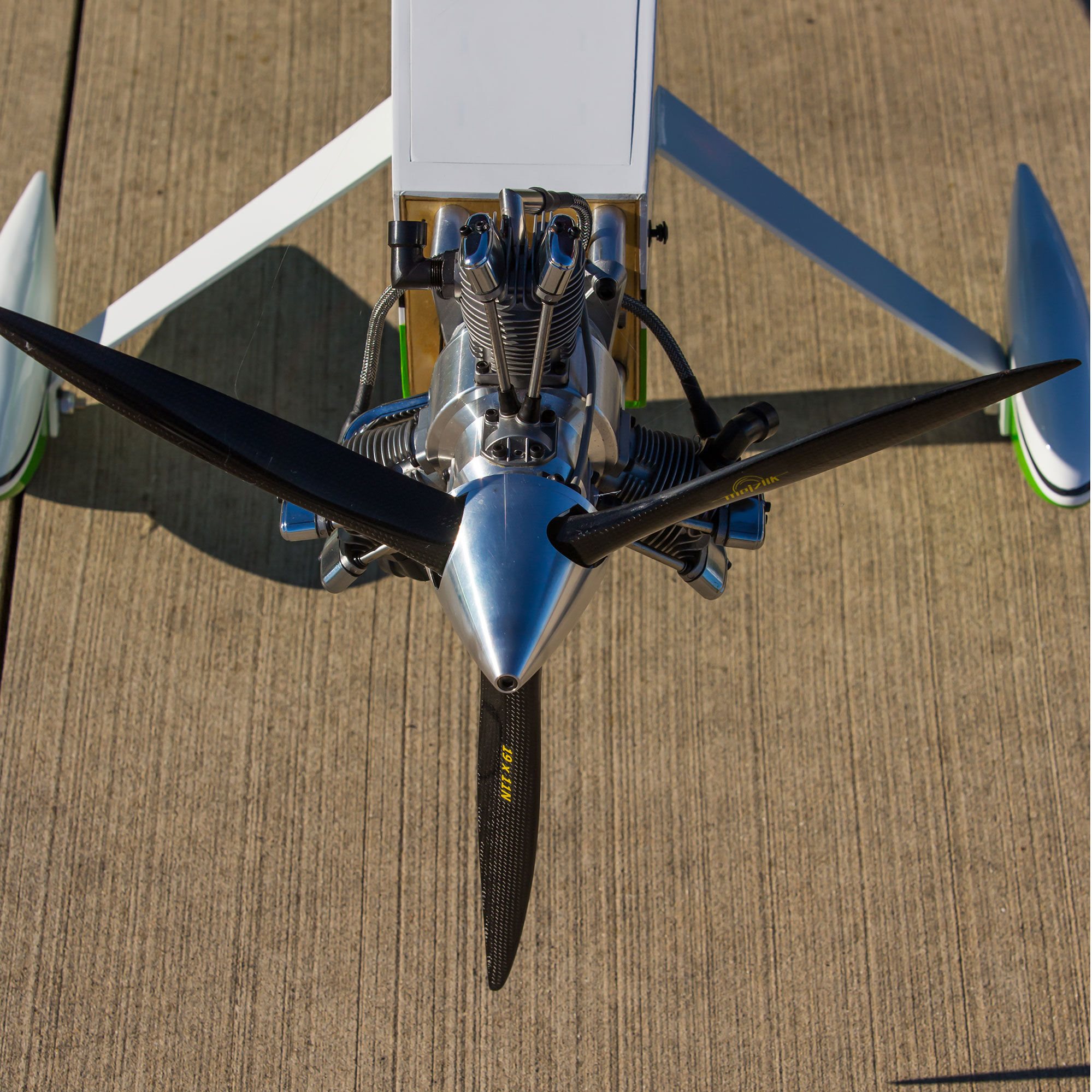

Engine Size: 30cc
Motor Size: Power 160
Radio: 6ch
Servos: A6180 Digital Aircraft Servo
Trim Scheme Colors: White, Black, Apple Green
CG (center of mass): 4-5.25" Rearward of wing leading edge
Wing Loading: 22.02oz./sq.ft.
Prop Size: 17x6 - 18x10
Spinner Size: 3"
Speed Control : 80 amp

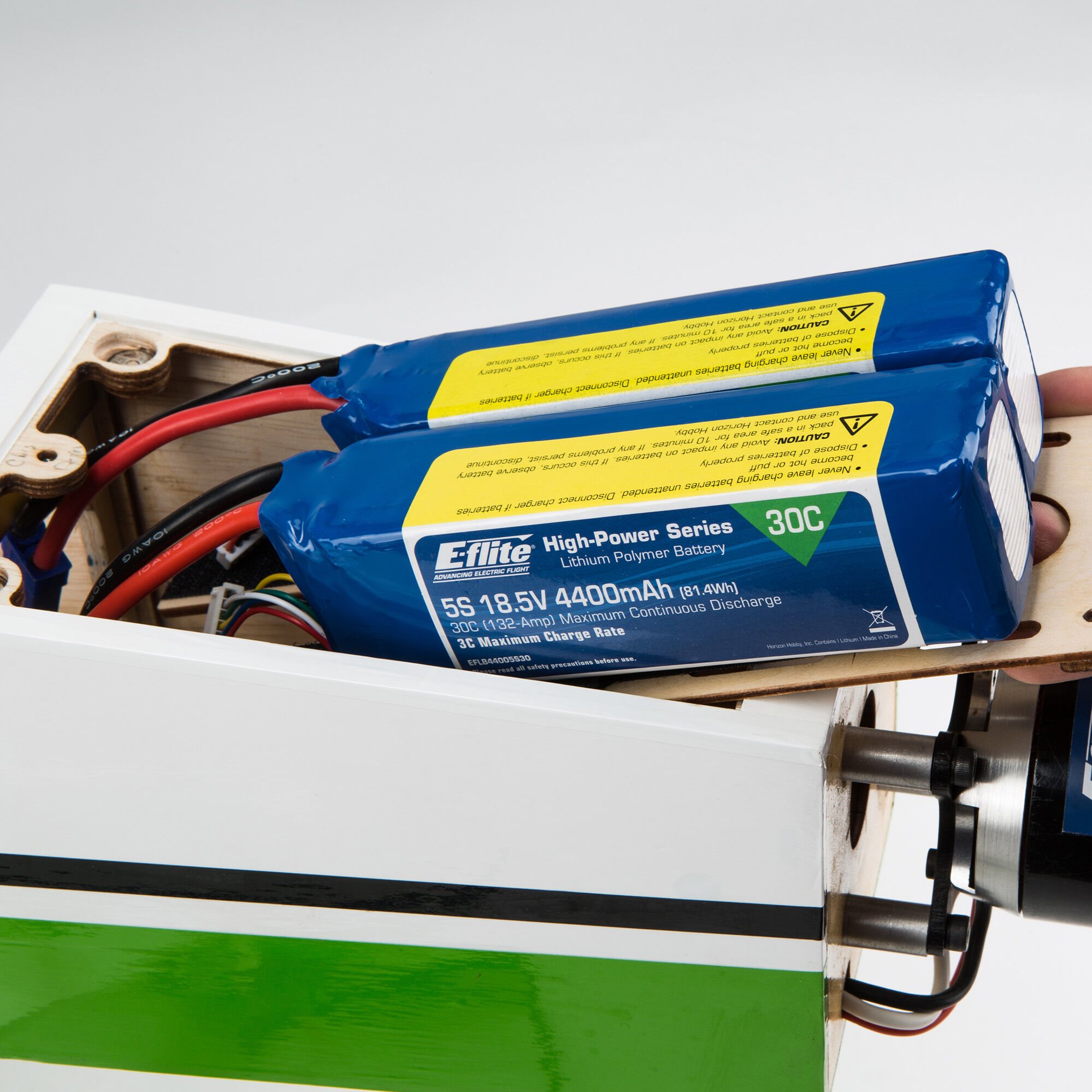

Advised Battery: (Motor)10S 4400mAh (Receiver) 6.6V 2200mAh TWO LiFe
Aileron: Expo 25%
Elevator: Expo 20%
Rudder: Expo 20%
Flaps: Y
Retracts: N
Control Throw (Ailerons): (Low) 3cm Up and 2.5cm Down (High) 6.8 Cm Up and 5.5cm Down
Control Throw (Elevator): (Low) 2.7cm Up and Down (High) 5.5cm Up and Down
Control Throw (Rudder): (Low) 3.5cm Left and Right (High) 7 cm Left and Right
Control Throw (Flaps): 2.5mm Departure and 5.5cm Landing
Approximate. Flying Period: 6 Mins
Experience Level: Intermediate
Recommended Environment: Outdoor
Assembly Time: 10-15 Hours
Is Assembly Required: Yes
