GPM Racing Aluminum Adjustable F/R Damper Mount - Red

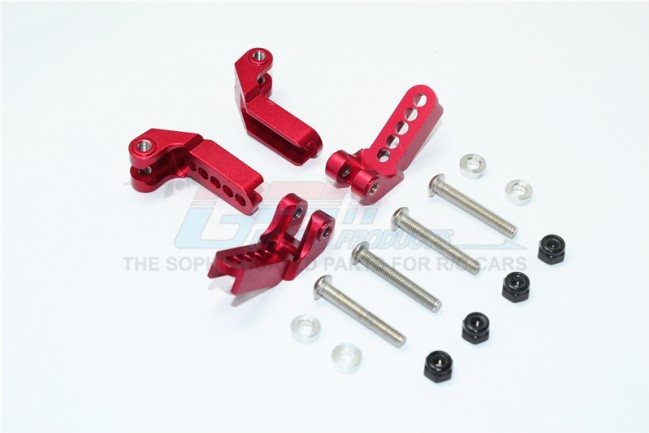

Devices:

Stainless-steel Round Head Screw 3x20-4pcs

3mm Lock Nut-4pcs

3x6x2 Aluminum Collar-4pcs

Product significant function & use:

Uplift the vehicle by changing the damper for better crawling experience

Major benefits of updating to this product:

1. Original plastic damper can be warped quickly. Therefore, users can install this install part to support the original damper.

2. Multiple positioning holes for uplifting the vehicle and better crawling experience.

The functions of basic appearance of this product:

Multiple positioning holes for uplifting the vehicle and better crawling experience.

Other unique notes and remarks:

1. When the dampers are set up to the downward holes, it can uprise the chassis, however the tie rod has to be changed longer, otherwise chassis can be uprised and the tie rods will not be long enough and set the chassis to be flat.

2. Recommand to couple with an expand hex since the gravity will be less steady and may cause the vehicle to turn over if uplifting the chassis however not widen the track.

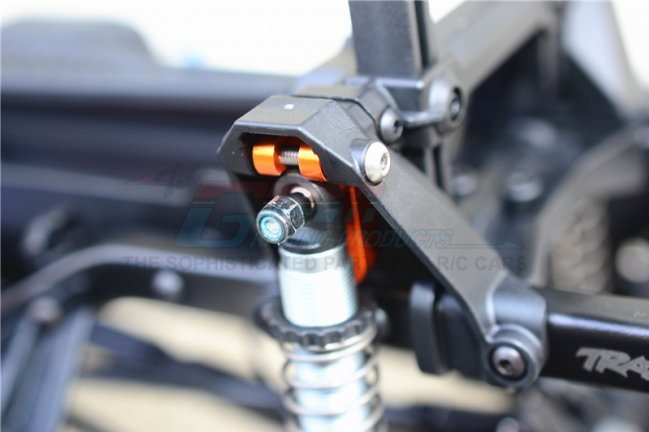

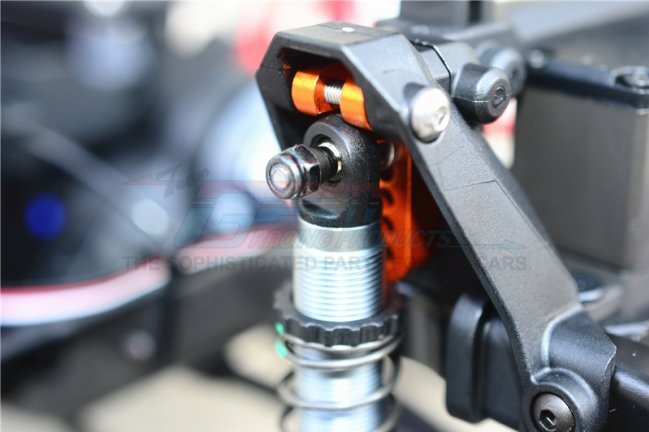

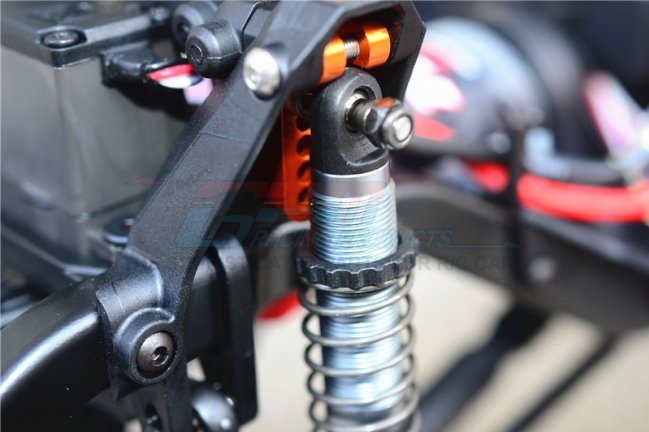

3. To install the part, you may install the 3x6x2 aluminum collars to shim between balls of damper and the damper install, screws put together from backward, lock nuts to tighten up on the outside.

4. The top positioning hole uplift is 6mm more than original, the bottom positioning hole uplift is 18mm more than original.

We utilize a quality lightweight high tensile strength aluminum 6061 T6 and is then anodized with scratch resistant colors
