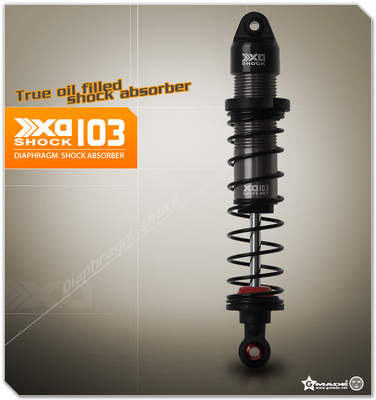

Gmade 103mm XD Diaphragm Shock Set (2)

This is the Gmade 103mm XD Diaphragm Shock Set.

Features:

Fits 1/8 & 1/10 scale spiders & trucks, 1/10 scale EP buggys and Short course trucks (such as Gmade R1, Axial wraith and XR-10, Traxxas E-Maxx and 2WD Slash rear)
CNC machined Aluminum shock bodies and caps
Titanium gray anodized shock bodies and caps
Lower shock ends consists of red anodized aluminum balls
Fully threaded for quick change
Delrin pistons
3.5mm thick shock shafts
Shaft exits through double O-ring seals
Easy load shock seal assembly
Laser inscribed for credibility

Specs:

Length (Installing hole to hole): 103mm

Shock Body Diameter: 14mm

Spring Diameter: 19mm

Spring Length: 68mm

Complete Shaft Travel Variety: 31mm (without Rubber bump stop)

Shaft Diameter: 3.5mm

Consists Of:

(2) Titanium gray anodized aluminum shock bodies
(2) Titanium gray anodized aluminum shock caps
(2) Diaphragms
(2) Shock springs
All required hardware to end up the shocks
Assembly directions
Bottle of shock oil
