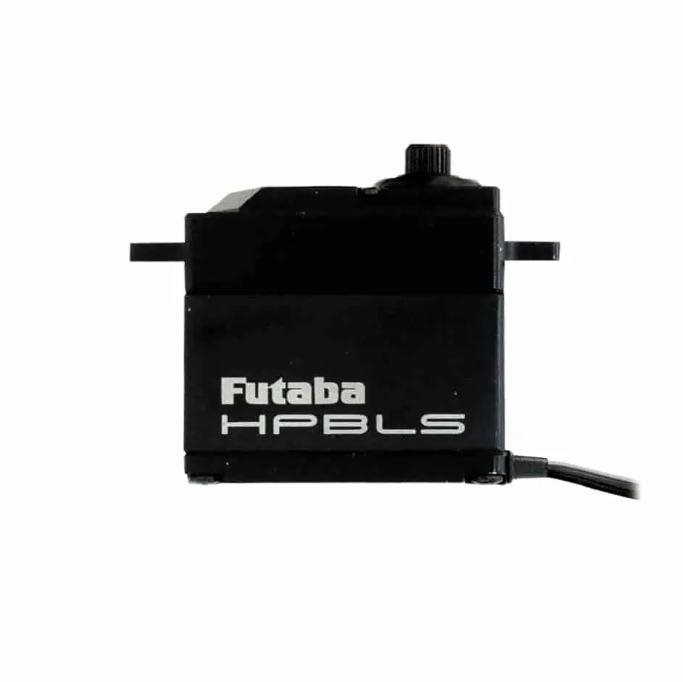

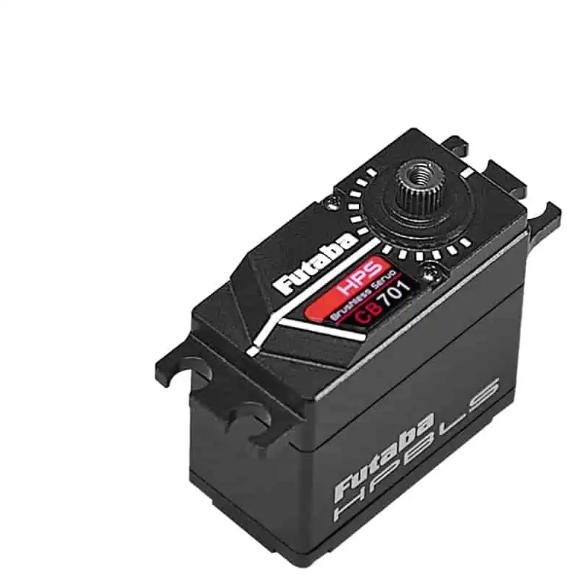

Futaba Servo Hps-Cb701(Fca)

Features:

• Suitable for RC cars 1/10 scale on/off road and 1/8 scale on/off road.
• Programmable/HV Brushless Servo.
• Custom New high power Brushless Motor.
• Supports SR mode with T4PM/P, T7PX/R, T10PX.
• Supports UR mode with T10PX.
• Programmable and compatible with S.Bus and S.Bus2 systems.
• Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
• Upper/middle/bottom: Aluminum Case

Specifications:

• SPEED: 0.09 sec/60*at 6.0V; 0.075 sec/60* at 7.4V
• TORQUE: 42.0 kgf/cm at 6.0V; 583.3 ozf/in at 6.0V; 49.0 kgf/cm at 7.4V; 680.5 ozf/in at 7.4V
• SIZE: 40.5 mm x 21 mm x 37.8 mm (1.59 in x 0.83 in x 1.49 in)
• WEIGHT: 75 g (2.65 oz)
• RATED VOLTAGE: DC 6.0V-7.4V
• OPERATING VOLTAGE: DC 4.8-8.4V
• MOTOR TYPE: Brushless
• SIGNAL TYPE: PWM, S.Bus, S.Bus2, SR Mode (Super Response)
