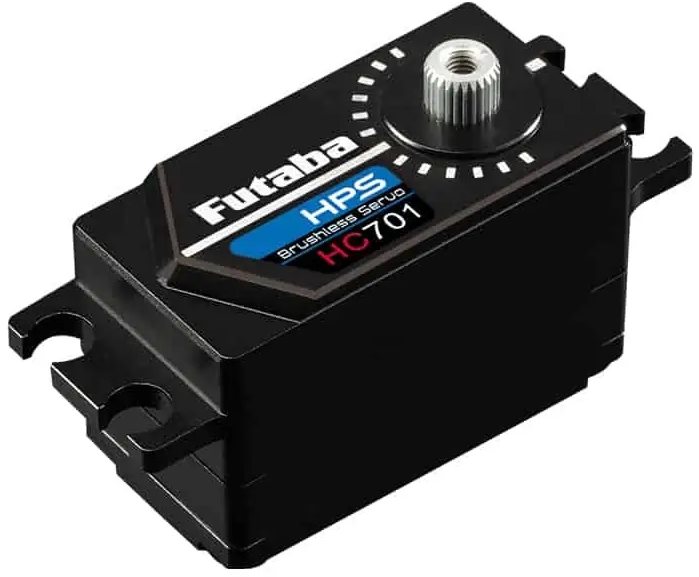

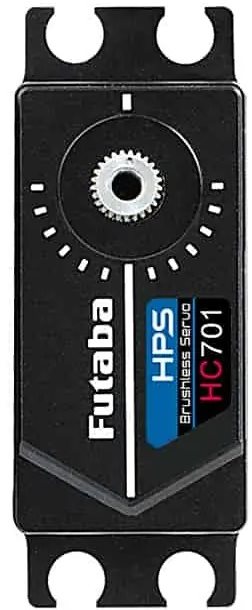

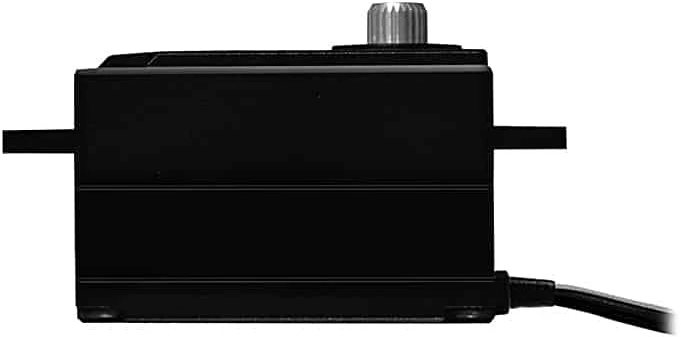

Futaba Hps-Hc701 S.Bus2 High-Voltage Low-Profile Heli Cyclic Servo (Futaba 01102382-3 | FUT01102382-3)
Futaba Hps-Hc701 S.Bus2 High-Voltage Low-Profile Heli Cyclic Servo

Zoom

Zoom

Zoom

Model: Futaba 01102382-3
Dist. #: FUT01102382-3   SKU: FUT01102382-3

Be the first to review this product. (Write Review)

Out of stock

Price:  $269.99

This item will earn you 270 reward point(s).
270 points = $5.40 off your next order. Learn More
Updated on May 1, 2025 09:00:47 PM

Hps-Hc701 S.Bus2 High-Voltage Low-Profile Heli Cyclic Servo...
HPS-HC701 S.Bus2 High-Voltage Low-Profile Heli Cyclic Servo

Features:
  • Appropriate for RC helicopters 500-800 3D/F3C
  • Programmable/HV Brushless Servo.
  • Custom New high power Brushless Motor.
  • Supports 760uS (Factory Default, able to be set to 1520uS w/ GPB-1 v4.3.)
  • Programmable and suitable with S.Bus and S.Bus2 systems.
  • Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
  • Upper/middle/bottom: Aluminum Case

Specifications @1520uS:
  • Speed:0.07sec/60deg(7.4V); 0.08sec/60deg(6.6V)
  • Torque:30.0gf/cm(7.4V); 26.5kgf/cm(6.6V)
  • 416.6ozf/in(7.4V); 368.0ozf/in(6.6V)

Specifications @760uS:
  • Speed:0.07sec/60deg(7.4V); 0.08sec/60deg(6.6V)
  • Torque:27.0kgf/cm(7.4V); 24.0kgf.cm(6.6V)
  • 375.0ozf/in(7.4V); 333.3ozf/in(6.6V)

Specifications:
  • Dimensions/Weight:40.5x21.0x26.2mm/54g (1.59x0.83x1.03in)
  • Rated Voltage: DC 6.0V-7.4V
  • Running Voltage: DC 4.8-8.4V
  • NO DRY BATTERY USAGE
  • Features: S.Bus, S.Bus2, Brushless, HV, Metal Case


Item Created: 07/17/2023
