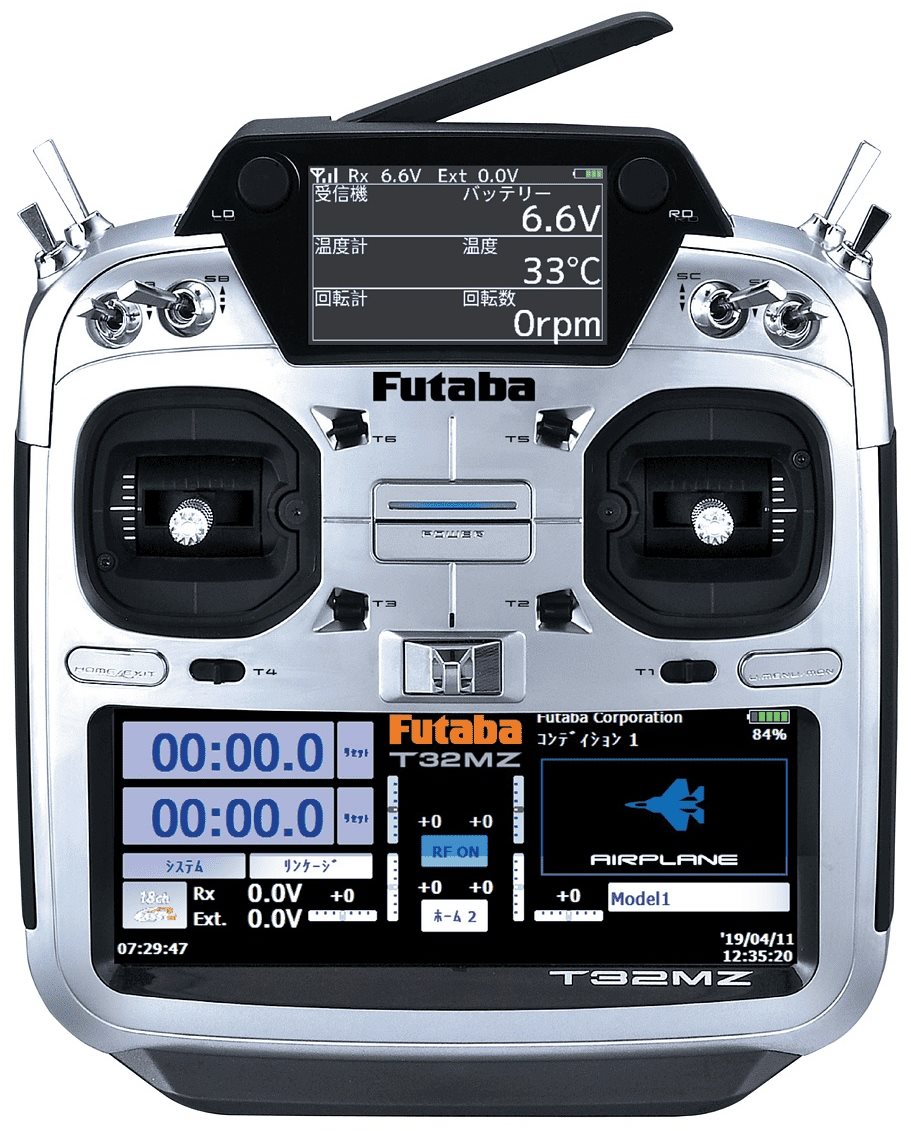

Futaba 32Mz 18-Channel, Fasstest 2.4Ghz, Heli Transmitter W/R7208sb Rec

FUTABA 32MZ TRANSMITTER INCLUDES

FASSTEST SYSTEM:

The Futaba 32MZ transmitter adopted the bidirectional communication system "FASSTest". Information from the receiver can be checked in your transmitter. FASSTest is an optimum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

CHANNEL EXPANSION (MULTIPROP FUNCTION):

The multiprop function can be used by utilizing the independently sold multiprop decoder MPDX-1. The multiprop function is a function that divides one channel into eight channels and extends the variety of channels. As much as 2 x MPDX-1 can be used, and approximately 32 channels can be broadened as follows:

- Direct channel - 14 channels (2 channels are used by multiprop function)

- ON/OFF channel - 2 channels

- Multiprop channel - 16 channels

Multiprop channels have the following distinctions from regular linear channels:

- The resolution of the multiprop channel is lower than that of the linear channel.

- Operating multiple multiprop channels all at once may decrease the operation reaction of the multiprop channel.

- Multiprop channels can not utilize the mixing function.

S.BUS2 SYSTEM:

By using the S.Bus2 system multiple servos, gyros and telemetry sensing units are easily set up with a minimum quantity of cables.

WINDOWS EMBEDDED COMPACT 7:

T32MZ uses the world famous Microsoft Windows Embedded Compact 7, which provides exceptional dependability and valuable resources.

COLOR LCD MAIN SCREEN:

T32MZ has a HVGA (640 x 240 pixels) full color backlit LCD touch screen. The screen is made of a transflective building which allows both indoor and outside visibility.

COLOR LCD SUB SCREEN:

T32MZ has a color LCD sub-display. It will be possible to understand telemetry details independently from the main display screen. The sub display screen utilizes a reflective LCD which supplies great visibility even outdoors.

MUSIC PLAY:

The Futaba 32MZ transmitter can playback WMA (Windows Media Audio) files on a microSD Card. You can delight in music by the internal speaker or stereo earphones from the earphone jack. A switch can be appointed to start/stop your music.

VOICE RECORDING:

You can tape-record your own voice using the internal microphone and then repeat commands appointed to specific switches. Recording time is 3 seconds maximum and 24 voice files can be stored.

SECURE DATA (SD CARD):

Design data, music files, voice files, and photo files can be saved on optional microSD card. The microSD card is also used when updating the software/features of the T32MZ.

HIGH CAPACITY LITHIUM POLYMER BATTERY (6600 MAH):

The high capacity Lithium Polymer battery offers you extended flight time.

EDITING:

The touch panel and two go into keys enables you to edit your model in the manner that is easiest for you.

FUNCTIONS:

The internal dual processors run the lots of 32MZ functions and enhance the reaction time. The majority of the mixing functions are operated by curves which provide you extremely precise settings.

STICK:

Dual ball bearings support each axis. And the magnetic detection type noncontact potentiometers was recently geared up. This enables finer and more precise operation. Also, the throttle stick is an external screw modification, you can select ratchet or spring self neutral.

REPLACEABLE changes:

You can replace 4 of the toggle switches on the right and left shoulder, with optional switches (two position, 3 position, and short-term etc.).

VIBRATION FUNCTION:

Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be picked by the owner.

R7108SB:

The Futaba 32MZ transmitter system includes the R7108SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

CONTENTS

YOUR FUTABA 32MZ TRANSMITTER (PACKAGED WITH A S.BUS RECEIVER) CONSISTS OF THE FOLLOWING PARTS:

T32MZ Transmitter

- Helicopter Version consists of smooth throttle

R7108SB Receiver

LT1F6600B Lithium Polymer Battery and Air Conditioner Adapter

UBA0323 Switch Harness

Tool Box (consists of special jig for modification)

Neck Strap

Handbook (Short version. Find full version here)

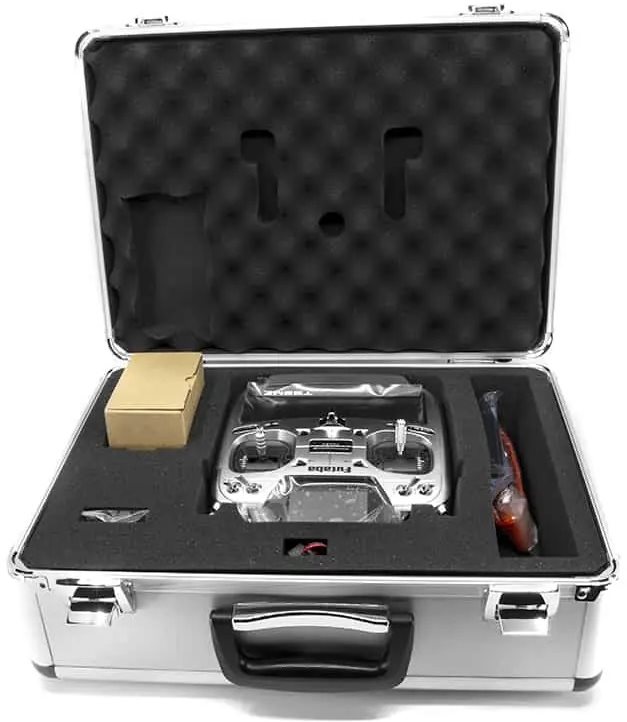

Transmitter Case

FUTABA 32MZ TRANSMITTER SPECS

TRANSMITTER FREQUENCY:

2.4 GHz band

OS:

2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

POWER SUPPLY:

3.8 V L1F6600B Lithium-polymer battery

RF POWER OUTPUT:

100 mW EIRP

WEIGHT (with battery):

1126 g

RECEIVER SPECS

R7208SB

SIZE:

24.9 x 47.3 x 14.3 mm

0.98 x 1.86 x 0.56 in

WEIGHT:

12.0 g

0.42 oz

POWER REQUIREMENTS:

6.6 V LiFe Battery

EXISTING DRAIN:

75 mA

RF POWER OUTPUT:

25 mW EIRP

Item Produced: 07/17/2023
