Combo Overview:

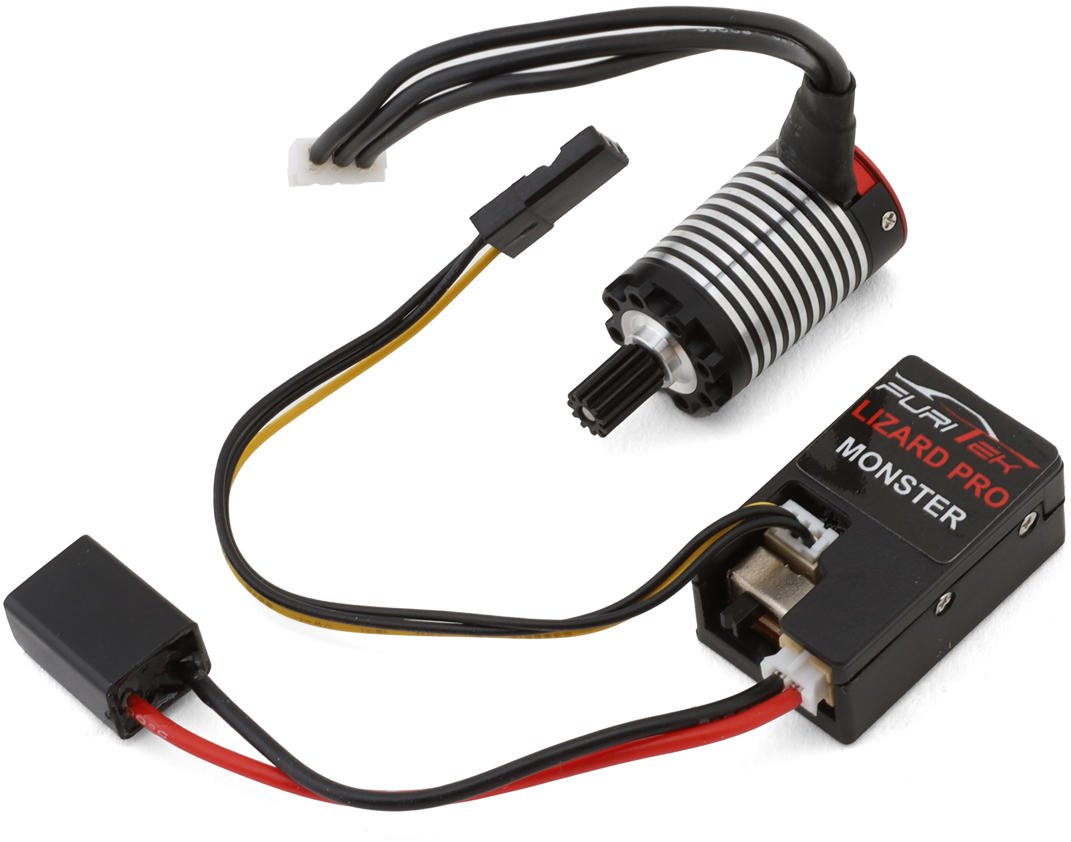

Furitek Traxxas TRX4M Monster brushless power system. Features the small size yet very powerful and fast Furitek Greyhound 1410 7500kV motor with the proven Lizard Pro Electronic Speed Controller. The Greyhound with special firmware from the Lizard Pro ESC is designed with high power for monster trucks to provide you with a powerful and reliable system. This power system is a complete drop-in/plug-and-play combo for the Traxxas TRX-4M allowing you to conveniently upgrade your TRX4-M to the brushless power it deserves! With the Furitek FuriCar mobile phone app and wireless module, users can set up any parameters on the fly without touching the truck, creating seamless adjustments for their favorite settings.
Features:
ESC:
Support Sensorless brushless DC and brushed DC motor (config via app, default is brushless)
FOC (Field-oriented control) technology
Plug and Play designed for the Traxxas TRX-4M micro truck
5V/ 6.5V 2.5A Built-in BEC (config via app)
Support 2S-3S lipo battery
Mini size and lightweight
Super easy programming via App on both Android and IOS
Real-time telemetry up to 10Hz
Built-in power switch
Motor:
2 Pole strong magnetic rotor hi-torque motor design
High purity and higher temperature copper windings, lower copper losses, maximizes efficiency
Super thin (0.2mm) stator lamination further maximizes efficiency
High RPM ABEC5 bearings
Precision balanced rotor, smoothness for best reliability and maximum 60,000 RPM
CNC machined 6061 T6 aluminum heat sink vein can design
Precision engineered for maximum energy conversion
Specially designed end cap with side locking screws that firmly secures the end cap and PCB
Specifications:
ESC:
Scale: 1/24
Type: Brushed/Brushless Switchable
Waterproof: No
Input Voltage: 2-3S LiPo
BEC Voltage: 5V or 6.5V
Current
Continuous: 30A
Burst: 50A
Size (LxW): 28x15.5mm
Weight: 3.7g
Programmable: Built-in wireless
Motor:
KV: 7500kV
Pole: 2P
Input Voltage: 2-3S LiPo
Resistance: 0.7 Ohms
No Load Current(@7.4V): 0.3A
Size (Diameter x Length): 15.5x25mm
Shaft (Diameter x Length): -
Weight: 17g
Application: 1/24 & 1/18 Monster Trucks
Includes:
(1) Lizard Pro 30A/50A Brushed/Brushless ESC
(1) Greyhound 1410 7500KV brushless motor
(1) CNC Steel Pinion
