Introduction
The Truman Senate War Investigating Committee called the North American Aviation P-51 Mustang “the most aerodynamically ideal pursuit aircraft in existence.” During WWII, it blasted trains, ships, and enemy setups throughout Western Europe. The “D” variant, equipped with the legendary Merlin engine, provided the U.S. Army Air Forces a high-altitude, long-range fighter capable of escorting heavy bomber formations the entire method to Berlin and back. The E-flite® P-51D Mustang 1.5m likewise goes the range — to reproduce the well-known fighter with exceptional information, dealing with, performance and presence. It's packed with Additional Scale information and practical features consisting of LED lights, sequenced main and tailwheel gear doors, flaps and much more, and is likewise equipped with a Spektrum™ Bird™ Smart ESC to provide an unequaled warbird flying experience.





Features

This limited time combination consists of the BNF Fundamental variation airplane and a Spektrum Smart 6S 5000mAh 30C battery

The most comprehensive, finest handling and highest performance large-scale P-51D Mustang design yet

Scale replica of the renowned airplane flown by the U.S. and other allied forces throughout World War II

Additional Scale information consisting of detachable drop tanks, molded-in panel lines, weapons and much more

Functional Additional Scale features consisting of LED navigation lights, sequenced main gear and tailwheel doors, flaps and more

Factory-installed, high-power 6S-compatible brushless motor with big size 4-blade prop

Fits SIX batteries from 3200-7000+mAh to provide level flight leading speeds up to 80+ MPH and unlimited vertical performance

100-amp Spektrum™ Bird™ Smart ESC provides real-time battery voltage, capacity utilized and other data via suitable receivers and transmitters

Spektrum AR637TA receiver with full-range telemetry and industry-leading DSMX® technology

Easy to fly with ingenious and optional-use SAFE® Select flight envelope security

The unrivaled stability and locked-in feel of exclusive AS3X® technology

9 factory-installed servos with precise ball-link equipped linkages

Ball-bearing equipped wheels with diamond tread pattern tires for included scale appearance

Retractable tailwheel plus main gear with scale shock-absorbing struts for operation from a range of surface areas consisting of yard

Special 3-piece wing consists of center area with main gear plus outer panels that snap into place firmly without fasteners

No glue needed for assembly and can be ready to fly in less time than it requires to charge a battery

Large leading hatch with formed in stop for included security of the quick-release battery tray

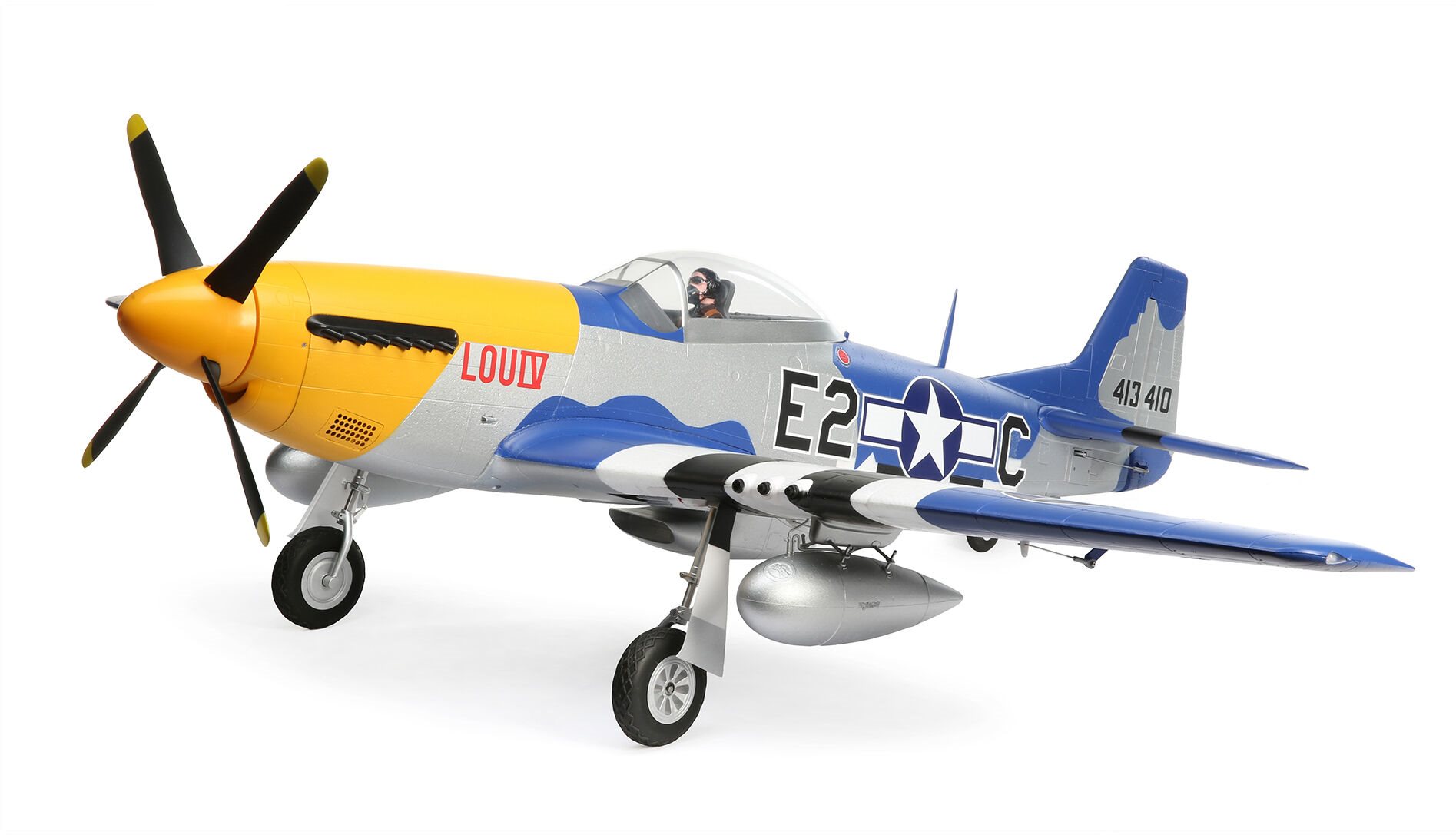

Factory-applied “Lou IV” painted trim plan uses excellent visibility

Resilient EPO airframe with carbon fiber and wood support





Overview
The P-51D Mustang 1.5m is the biggest, most comprehensive and finest performing replica of the legendary fighter from E-flite® yet! Along with a precise overview, it likewise features an abundance of Additional Scale information consisting of formed in panel lines and hatches, weapons and detachable drop tanks, plus a striking factory-applied “Lou IV” finish. Functional Additional Scale features consist of LED navigation lights, sequenced main and tailwheel gear doors, flaps and more. The shock-absorbing struts feature ball-bearing equipped wheels with diamond tread tires for included scale appearance and make it possible to fly from a range of surface areas consisting of yard, and trustworthy electrical retracts operate the main gear and tailwheel. And at the heart of it all is a factory-installed brushless motor that works with SIX LiPo power—just drop in a SIX 3200-7000mAh battery to achieve level flight speeds in excess of 80+ MPH and unlimited vertical performance! Both variations consist of a 100-amp Spektrum™ Bird™ Smart ESC, and the BNF® Fundamental variation is likewise equipped with an AR637TA receiver that uses full-range telemetry consisting of real-time battery voltage, existing, temperature level and more to suitable transmitters, plus the benefits of exclusive AS3X® and SAFE® Select innovations to make this one of the most convenient to fly Mustangs ever. The distinct 3-piece wing design makes transport and storage as hassle-free as possible due to the fact that the center area consists of the main gear and the outer panels just snap into place firmly without requiring fasteners. It's likewise quick and easy to put together due to the fact that the factory-finished EPO airframe bolts together—no glue needed—in less time than it requires to charge a battery. And it all amounts to provide a warbird flying experience unlike any other with the mightiest Mustang yet!





Needed to Total

Full-range 6-7+ channel Spektrum™ DSMX®/DSM2® suitable transmitter

SIX 22.2V 3200–7000+mAh LiPo with EC5™ or IC5™ connector

Compatible LiPo charger

What remains in package?

(1) E-flite P-51D Mustang 1.5m with:

(1) 100A Spektrum™ Bird™ Smart Brushless ESC (installed)

(1) Brushless Motor (installed)

(9) Servos (installed)

(1) Spektrum AR637TA 6-Channel Receiver (installed)

(1) Product Manual












Exclusive Technologies
This is the very first large-scale P-51D Mustang design equipped with both exclusive Spektrum™ AS3X® and SAFE® Select innovations. AS3X works behind the scenes to smooth out the effects of wind and turbulence to provide a locked-in feel that makes it look like you're flying a much larger airplane. Optional-use SAFE Select uses pitch and bank angle limits in addition to automatic self-leveling that can be turned on and off at the flip of a switch making this one of the most convenient to fly P-51s yet! And if you do not wish to make it possible for the SAFE Select features, just bind the receiver usually and only AS3X will be active.

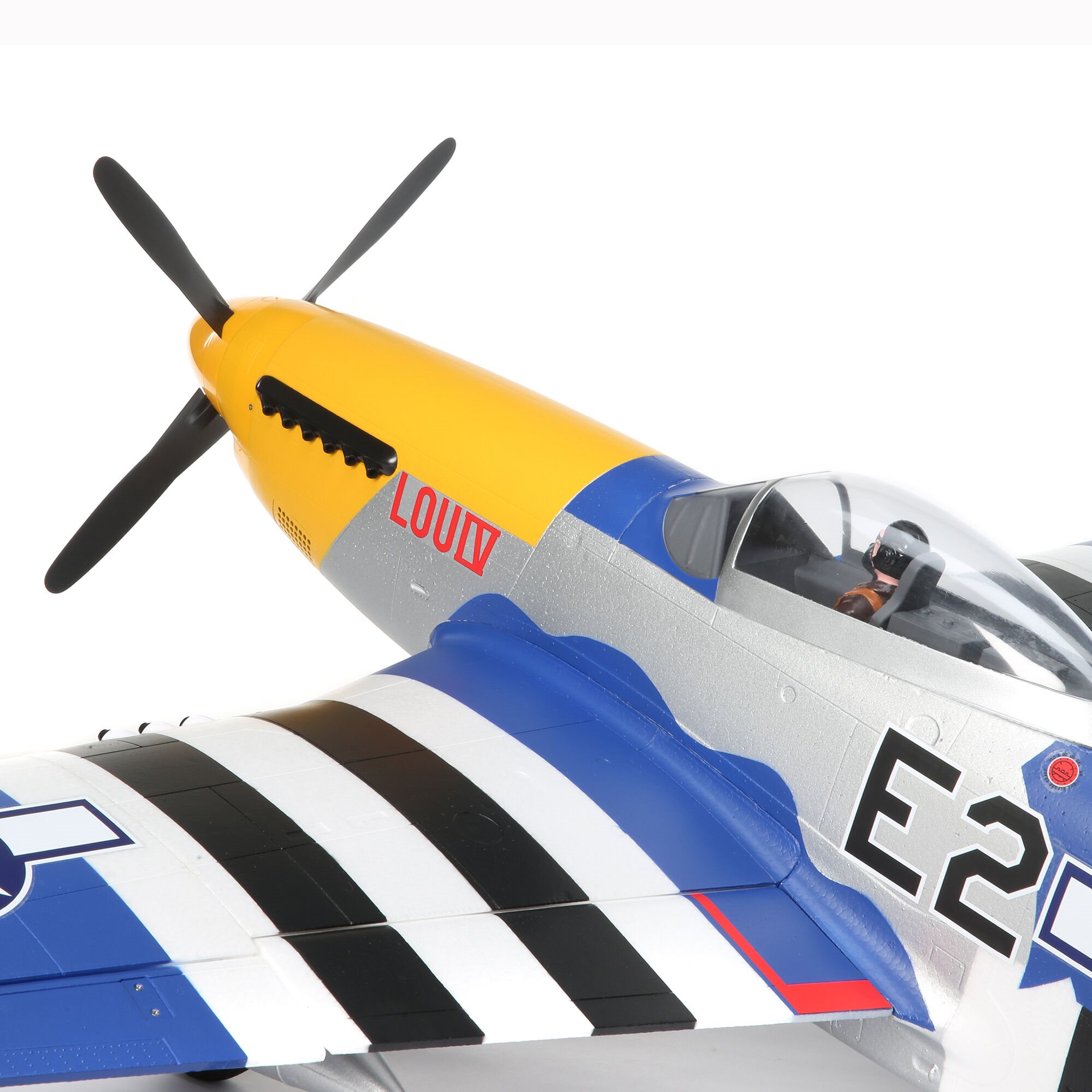

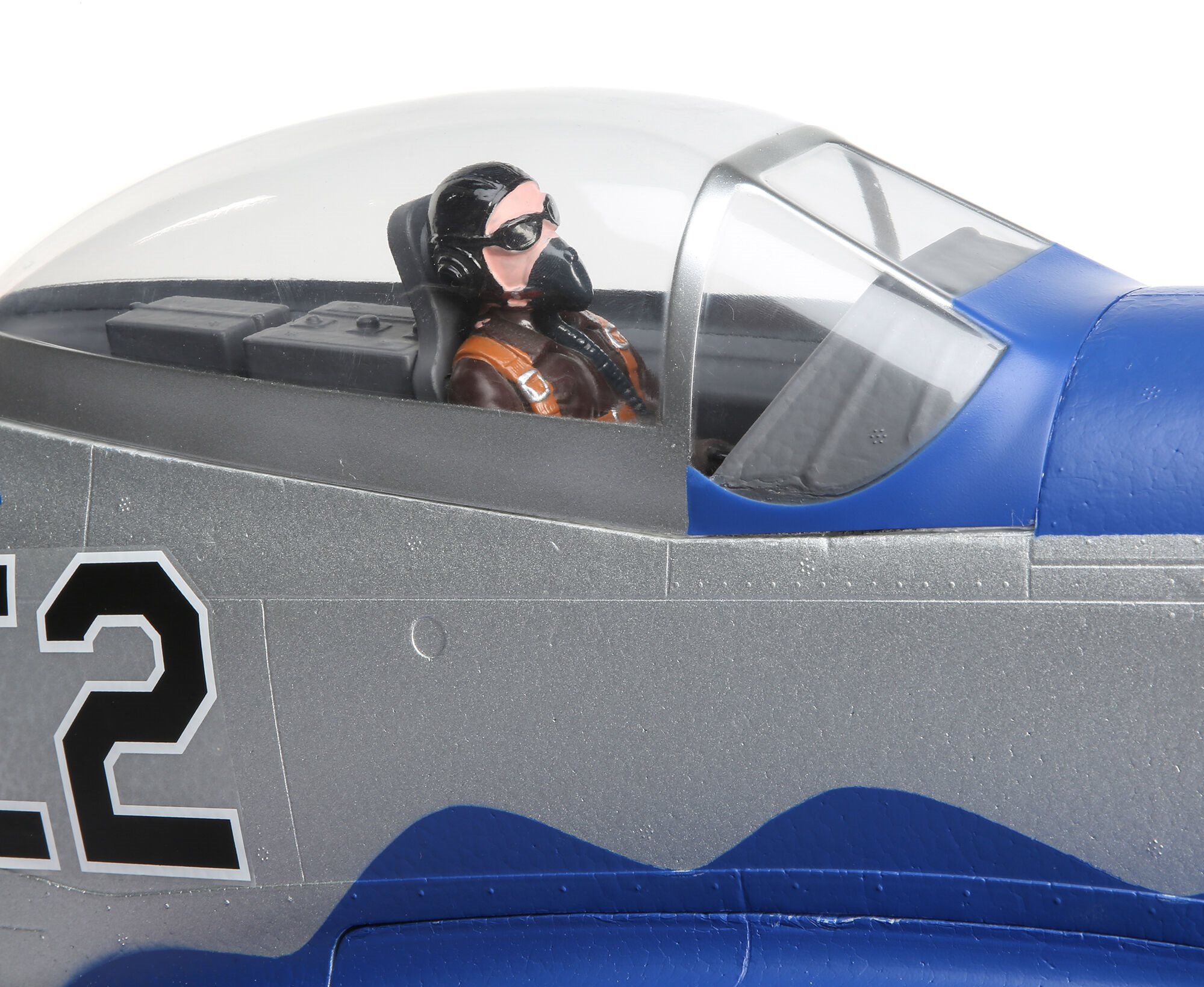

Extra Scale Details
The P-51D Mustang 1.5m features a precise overview and an abundance of Additional Scale information consisting of molded-in panel lines and hatches, weapons and detachable drop tanks—plus a lot more information than you normally find on similar class and smaller models.








Functional Extra Scale Features
Factory-installed LED navigation lights, functional flaps and control surface areas with pocket hinges—even sequenced main gear and tailwheel doors—are practical Additional Scale features that take your experience to another level.




High-Performance Power
The factory-installed power system features a 100-amp ESC plus a high-power brushless outrunner motor that deals with the large-diameter four-blade propeller and a 6S 3200–7000mAh LiPo battery to provide better-than-scale speed and unlimited vertical performance.








Smart Technology
The P-51D Mustang 1.5m is equipped with an exclusive Spektrum™ Bird™ Smart ESC that can provide a range of real-time power system associated telemetry data consisting of motor RPM, existing, battery voltage and more via suitable receivers (consisting of the AR637TA) and Spektrum AirWare™ equipped transmitters (consisting of the DX6e and 8e, DX6 and 8 G2, the DX9, iX12 and others) while you fly.




Capable Equipment

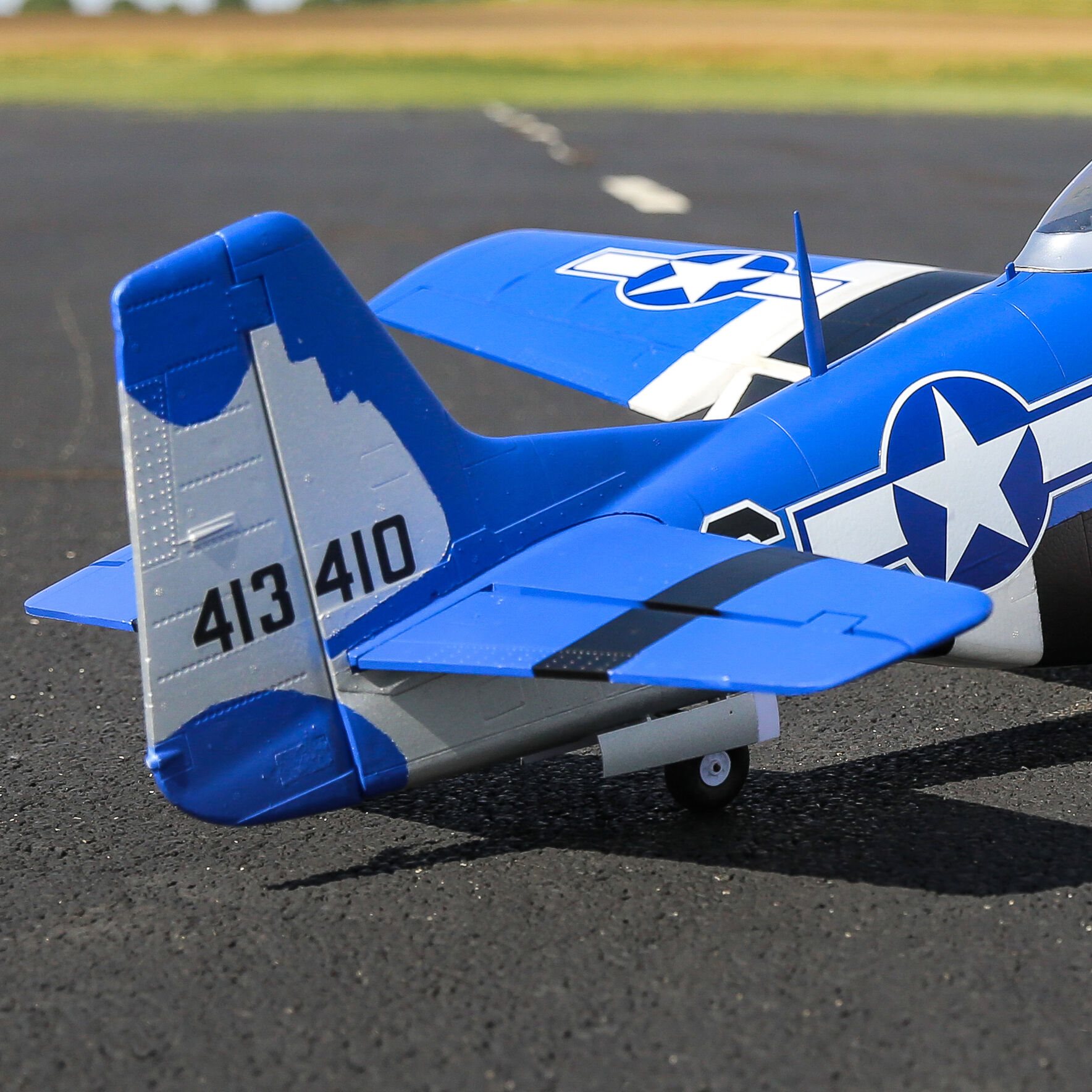

The wide-spaced main gear function trustworthy, factory-installed electrical retracts equipped with long lasting metal components and shock-absorbing struts that make it possible to fly from a larger range of surface areas consisting of paved runways and yard. The main gear and the retractable tailwheel likewise feature sequenced gear doors for included scale function and appearance.








Durable Precision
Building with fully-molded EPO material makes it possible to duplicate complicated information and shapes in a light-weight yet long lasting form. The result is an impressive scale appearance that's easy to maintain and provides the very best possible flight experience, plus the factory-installed servos with ball-link equipped linkages provide crisp and precise control at every speed.




Easy Assembly
No glue is needed for assembly and you can have the P-51D Mustang 1.5m ready to fly in less time than it requires to charge a battery! The 3-piece wing design makes transport and storage as useful and hassle-free as possible due to the fact that the center area consists of the main gear and the outer panels snap into place firmly without fasteners.








Bind-N-Fly Conclusion Level Advantage
Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) airplane make entering the air quickly and with the very best control experience possible much easier than ever. They come out of package with the power system, servos and a Spektrum 2.4GHz receiver installed so all you require to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

This Bind-N-Fly Basic design is equipped with a Spektrum 2.4GHz DSMX® receiver including AS3X (Synthetic Stabilization–3–aXis) technology that works behind the scenes to smooth out the effects of wind and turbulence. The result is an increased sense of stability and precision that makes you seem like you're flying a much larger, expertly tuned aircraft.

If this is your very first design of its type, or you want an extra margin of security while familiarizing yourself with the airplane, you can make it possible for the optional-use SAFE® Select flight envelope security technology built into the receiver. No shows is needed. Simply change up the binding sequence as directed in the manual.

With SAFE Select allowed, you get:

Pitch and Bank Angle Limits
These envelope restricts keep the airplane from rolling or pitching upside down. They likewise prevent excessive climb or dive angles.

Automatic Self-Leveling
The airplane instantly goes back to and holds level flight when the sticks are launched and in the center position. It's likewise practical for keeping the wings level throughout takeoffs/launches and landings.

Easy Switch Assignment- No Programs Required
The simple procedure for appointing a transmitter switch to turn SAFE Select features on and off doesn't require any shows and takes just a couple of seconds.

If you do not wish to make it possible for the SAFE Select features, just bind the receiver usually and it will function like a standard AS3X receiver.










Specifications

Aileron: Yes

Approximate Assembly Time: Less than 1 Hour

CG (Center of Gravity): 4.9 - 5.4" (124 - 137mm) back from leading edge of wing measured at wing root

Battery charger: Compatible with picked battery

Conclusion Level: Bind-N-Fly Basic

Control Throw - High (Ailerons): 0.59" (15mm)

Control Throw - High (Elevator): Up 0.51" (13mm), Down 0.39" (10mm)

Control Throw - High (Rudder): 0.87" (22mm)

Control Throw - Low (Ailerons): 0.47" (12mm)

Control Throw - Low (Elevator): Up 0.51" (13mm), Down 0.39" (10mm)

Control Throw - Low (Rudder): 0.59" (15mm)

Elevator: Yes

Expo (Ailerons): Low 70%, High 100%

Expo (Elevator): Low 70%, High 100%

Expo (Rudder): Low 70%, High 100%

Flaps: Take-off 1.1" (27mm), Landing 2.4" (60mm), Yes

Flying Weight: 2001-25000g, 7.5lbs - 8lbs (3.4kg - 3.6kg)

Landing Equipment: Yes

Length: 52" (1320mm)

Product: EPO with carbon fiber and wood support

Minimum Required Radio: 6-channel

Minimum Speed Control: Smart 100A with IC5 battery connector

Motor Size: 4650 - 460kV

Prop Size: 15.5x11 4-blade

Recommended Motor Battery: 22.2V 5000mAh SIX 30C Smart LiPo battery with IC5 connector consisted of

Pulls back: Yes, electrical powered with ball bearing equipped wheels and diamond tread pattern tires

Rudder: Yes

Servos: 17g, 9g, 9g metal gear reverse, 13g metal gear

Transmitter Range: Complete

Trim Scheme Colors: Painted Lou IV

Wingspan: 59" (1500mm)
