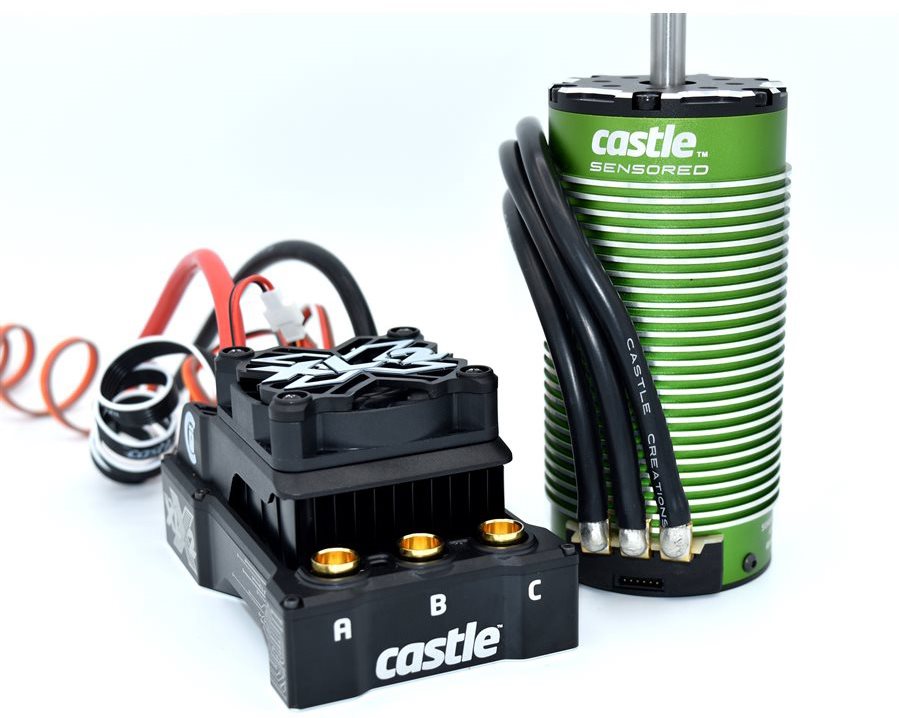

Castle Creations Mamba Xlx2, 8S, 33.6V Esc, 20A Peak Bec W/2028-800Kv Motor

Introducing the Mamba XLX2, an ESC that will redefine the limitations of 1/5th scale R/C! Engineered from the ground up, the Mamba XLX2 is packed with a potent mix of hardware and software improvements, sensored performance, CRYO-DRIVE and waterproof design that will set a brand-new requirement for high performance power systems. The Mamba XL family is popular for its severe performance abilities. The XLX2 admires the tradition of its predecessors and surpasses their performance on all levels.

The Mamba XLX2 and 2028-800kv combo is designed for the most severe and demanding RC applications. The enormous motor and high power ESC are capable of pushing cars and drivers to their limitations and beyond. This is the best combo for cars weighing approximately 30 lbs and approximately 8s LiPo.

CRYO-DRIVE, Castle's proprietary development technology integrates unique software application and dedicated hardware to decrease heat and dramatically increase performance. Countless times per second, the XLX2 software application minimizes the quantity of time the electrical parts invest creating heat. These software application improvements work in parallel with an open housing design which allows increased directional air flow to cool important parts. With the mix of a brand-new 50mm fan and created elliptical fin heatsink, the XLX2 makes the most of air flow throughout the system, taking thermal performance to a whole new level. The outcomes are more power handling, cooler ESC temperatures and longer runtimes and for ultra-high performance.

You can easily enhance the ESC for any driving condition, from rugged terrain to smooth pavement to the hazards of rock and gravel. Produce, conserve and download setup profiles through the Castle Link Shows Suite on your Windows PC, or wirelessly with the convenience of the new B-Link Bluetooth Adapter and Castle Link app for Android or iOS.

Additional tuning flexibility awaits you with on-the-fly adjustments from your transmitter by means of the Auxiliary wire. Just link the white signal wire to an open radio channel, and make it possible for the feature in Castle Link by selecting what Auxiliary function you would like to utilize. Gain access to shows criteria such as Torque Control, Max Brake or Max Throttle.

Sensored 1/5th scale is here! Matching the Mamba XLX2 with the Castle 4-POLE 12-SLOT SENSORED 2028-800KV will enable heavy, high speed rigs to experience controllable low-end ranges without compromising power, punch or speed. SmartSense mode uses the motor's sensors to begin the motor to offer smooth starts, excellent torque, and low-speed drivability. Once the motor is spinning, it flawlessly shifts to Castle's ultra-efficient sensorless mode. You'll put more power to the ground, where it should be, instead of losing it through raw heat and RPMs.

MAMBA XLX2 FEATURES:

Input Voltage Variety 3S-8S LiPo (33.6v max)

Sensorless, Sensored, SmartSense and Brushed Running Modes

Powerful Integrated 20A Peak Adjustable BEC (5.25V-8.0V)

CRYO-DRIVE Technology minimizes the quantity of time the ESC's electrical parts invest creating heat, resulting in improved thermal performance throughout partial throttle operation where the majority of driving occurs

ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to secure the electronics and promote effective heat transfer

Premium created heatsink with elliptical fins for remarkable air circulation and increased heat dissipation

Oversized factory geared up thermally controlled 50MM cooling fan

Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters

Mounting holes found in bottom of aluminum case for attaching to your automobile

Water resistant design for all weather

Data logging capability to record and tape-record performance data from your automobile

Auxiliary wire functionality for "on-the-fly" adjustments utilizing your transmitter

Audible signals for simple medical diagnosis of typical issues such as motor-over-temperature and low-voltage cutoff

Convenient transmitter shows for 6 typical adjustable settings including cutoff voltage and drag brake

Easily tune and upgrade ESC with USB and Bluetooth shows options

Castle Link USB shows package (coupon consisted of with purchase)

Optional smartphone-based shows with the B-LINK Bluetooth Adapter (offered separately and Castle Link all readily available on Google Play or Apple App Store)

Happily designed and made in Olathe, KS USA and backed by Castle Creations' 1-year warranty

MOTOR FEATURES:

4-POLE 12-SLOT sensored design that boasts exceptional performance and produces less heat

Exclusive stator winding produces low internal resistance for a cooler running motor

Double sensor ports to ensure optimal installation in your large-scale automobile

Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life

High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap guarantees the integrity of the rotor is not jeopardized throughout extreme running conditions and high RPMs

MAMBA XLX2 ESC INCLUDES:

Mamba XLX2 ESC

2028-800kv Sensored Brushless Motor

300mm Direct Link Sensing Unit Wire

Mamba Decals

Motor connection wire, bullets and diminish

Mamba XLX2 Quick Start Guide

Sensing unit port dust cover

Voucher for free Castle Link USB

Features:

Item Created: 09/23/2020
