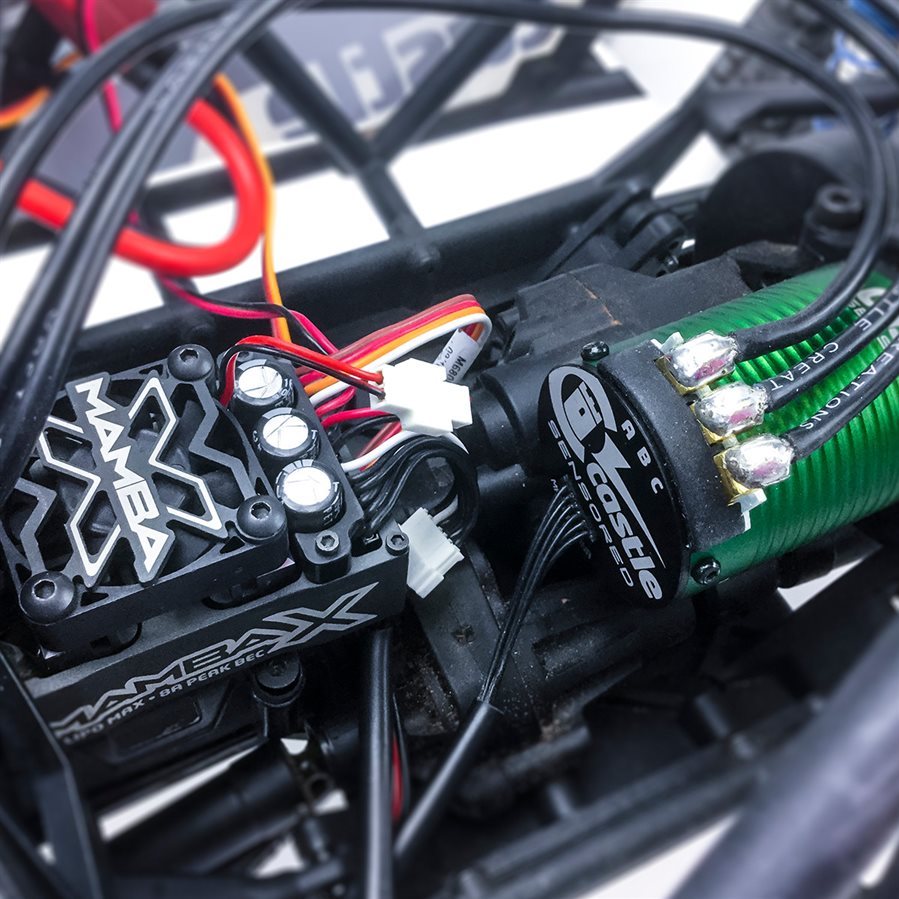

Castle Creations Mamba X Sensored 25.2V Wp Esc 1406-7700Kv Combo

This is the Castle Creations Mamba X Extreme 1/10 scale Waterproof ESC,
and the 1406 7700Kv Sensored Brushless Motor.
NOT for use in 2WD or 4WD short course trucks.

For 1/10 scale 2WD cars and trucks on 2S LiPos, and lighter off-road 1/10 scale
    stadium trucks and buggies with conservative gearing.

FEATURES:
ESC;
2S - SIX input voltage variety
Compatible with 1/10 - 1/8 scale cars weighing less that 9lbs
    (4kg), consisting of many severe 1/10 scale setups and 1/8 scale race
    buggies
Smartsense uses motor's sensors for smooth starts, exceptional torque
    and low-speed drivability - then shifts to the sensorless
    mode with electronic timing, Smartsense automatically advances
    timing for peak efficiency throughout all driving conditions
On-the-fly adjustments can be made through the AUX wire as soon as enabled
    in Castle Link, then settings can be tuned from transmitter while
    driving
Recordable real-time data such as RPM, battery current and voltage,
    ESC and motor temperature, throttle input and more
Audible informs
CNC aluminum case
12AWG high hair count silicone insulated battery wires
One year restricted guarantee through Castle Creations beginning at date
    of purchase

    Motor;
High-strength neodymium sintered magnet with Kevlar wrap
High-performance 0.2mm steel lamination stacked stator
Castle 13 AWG silicone insulated wire leads
Oversized NMB bearings
Four pole configuration for optimal performance at high RPM
CNC machined 6061-T6 aluminum front and rear endbells

INCLUDES:
Mamba X Extreme 1/10 scale Electronic Speed Control
Exchangeable Wire Harness with Receiver Wire, AUX Wire, Fan Port,
    and Waterproof Switch
Exchangeable Motor Sensor Harness
12AWG Battery Wires
Cooling Fan
4mm Gold Plated Bullet Motor Connectors
1406 7700Kv Sensored Brushless Motor
Sensor Wire

SPECIFICATIONS:
ESC (CSEM9500);
Input Voltage Variety: 2S - SIX LiPo
BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
Programmable: Totally programmable with Castle Link USB Adapter, and
    downloadable Casle Link Windows software application
Telemetry Link Capable: Yes
Brake: Proportional
Reverse: Yes, might be handicapped for racing
Cooling Fan: 1.2" (30mm) detachable
Measurements: 2.14 x 1.39 x 1.18" (54.4 x 35.2 x 30mm)
Max Recommended Lorry Weight: 9lbs (4kg) with batteries, prepared to
    run

    Motor (CSEC5900);
Input Voltage Variety: 2-3S LiPo,
Kv: 7700
Max. RPM: 100,000
Max. Suggested Lorry Weight: 4lbs (1814g) with battery RTR
Length: 1.9" (49.5mm)
Diameter: 1.4" (36mm)
Weight with Wires: 6.9oz (197g)
Shaft Diameter: 1/8" (3.17mm)
Shaft Length: 0.59" (15mm)
Mounting Hole Specifications: M3 @ 25mm
Connectors: 4mm Male Castle Bullet

REMARKS:
Waterproof under regular operation. Not meant for operation when
    completely submerged in water.
