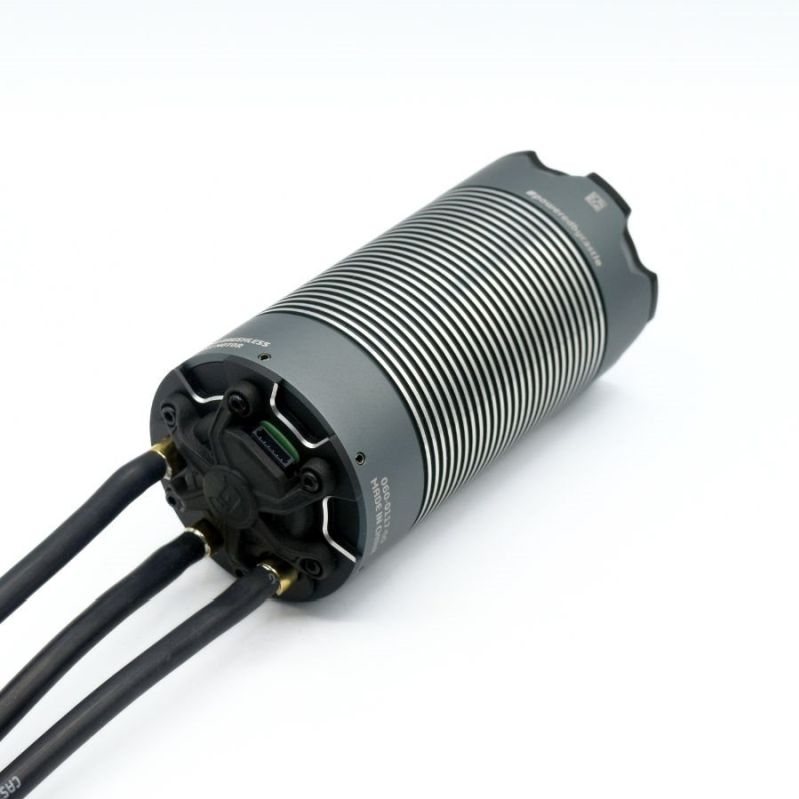

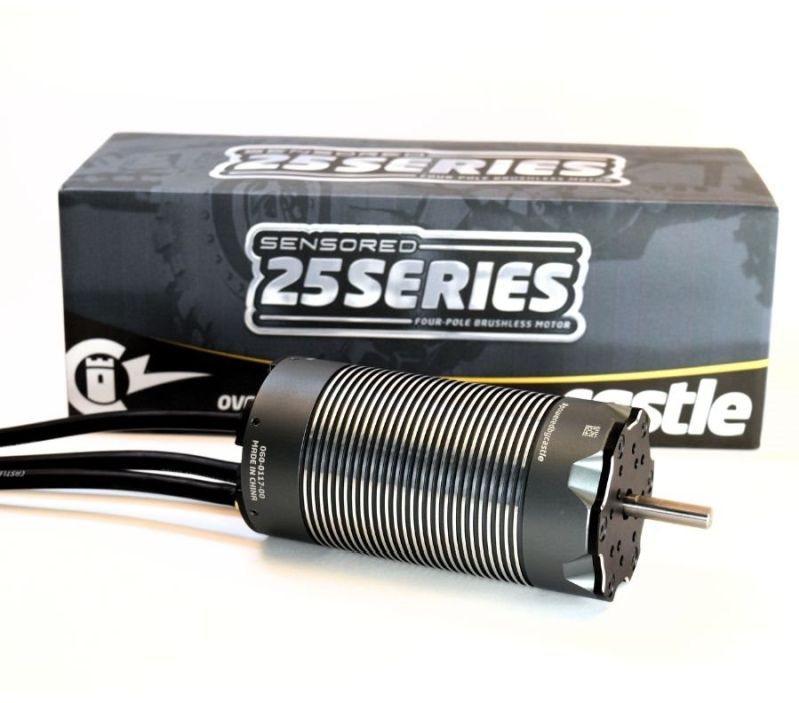

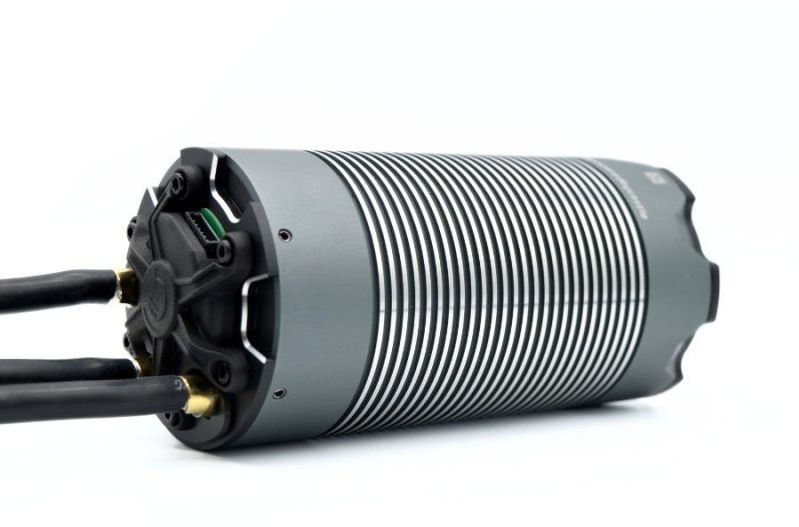

2535 Sensored Motor, Brushless, 4-Pole, 520KV

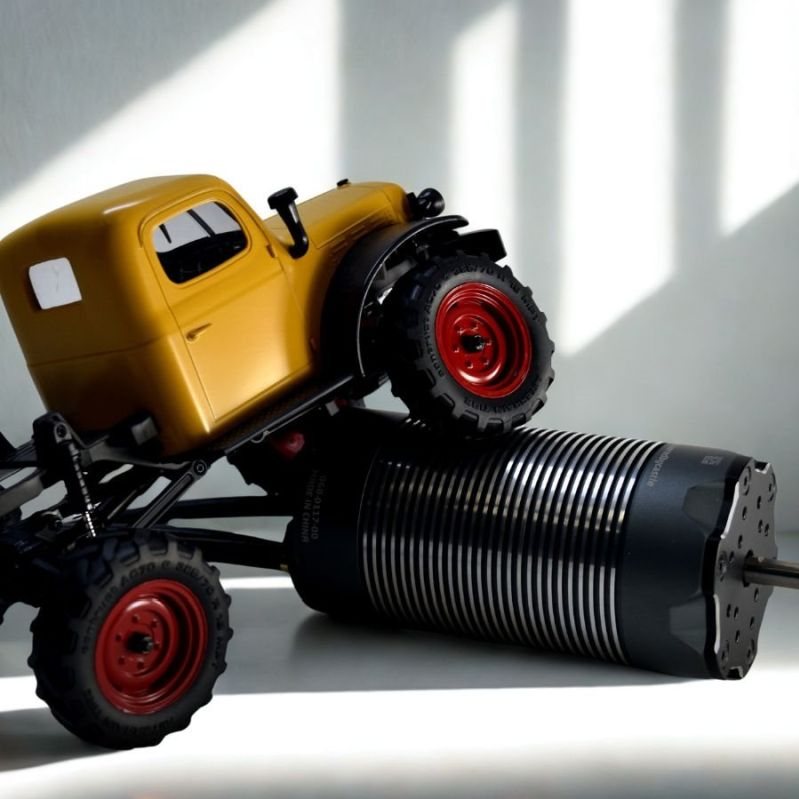

The Castle 2535 520KV is the largest and most powerful motor ever produced by Castle in their 28+ year history. Designed to produce the torque and power for vehicles weighing up to 50lbs and up to 12s LiPo. When paired with the Castle Cobra 5 HV, the 2535 - 520kv can easily push 1/5th and 1/4th vehicles like the Losi 5IVE-T, 5IVE-B, or DBXL-E. It is the perfect upgrade for any 1:5 and 1:4 scale RC hobby vehicles (including gas to electric conversions) weighing up to 50 lbs. It also boasts features in their V3 motor design, including a larger rear bearing, direct to bullet winding connections, smooth can exterior making water cooling a breeze, and a stainless steel sleeve rotor.
Features:
- Running modes include Sensored and an ULTRA-EFFICIENT sensorless mode.
- High-strength, high-temperature grade neodymium sintered magnets combined with High-strength stainless steel sleeve wrap ensures the integrity of the rotor is not compromised during harsh running conditions.
- Oversized front and rear NMB bearings and vibration dampening system ensure the longest bearing life possible.
- Castle's proprietary winding techniques allow us to produce a stator assembly that is the lowest possible resistance, resulting in a cooler running motor.
- Updated modern and sleek design; looks as cool as it performs.
Specifications:
- Input Voltage Range: 12S LiPo (50.4v) Max
- KV: 520
- Max. RPM: 38,000
- Size: Length: 5.8" (147.5mm)
- Diameter: 2.7" (68.7mm)
- Weight (w/wires): 84.8 oz (5.5lbs) / 2.4kg
- Shaft Size: Length: 30mm
- Diameter: 8mm
- Mounting Hole Specifications: 4mm @ 30mm, 4mm @ 40mm
- Connectors: 8.0mm male connectors.
- Items Needed for Operation: Compatible Electronic Speed Control (ESC) (see Recommended ESC(s) below)
- Product Use Statements: Monitor motor temperatures closely; overheating a motor will cause permanent damage to the magnets. Never exceed 180deg F on the motor or ESC. / Do not use mounting screws that extend more than 5mm into the front of the motor. Using too long of a screw can result in damage to the motor's windings and will not be covered by the warranty.
- Application Guidelines: Perfect upgrade for any 1:5 and 1:4 scale RC hobby vehicles (including gas to electric conversions) weighing up to 50 lbs.
- Recommended ESC(s): Cobra 5 HV
- Max. Recommended Vehicle Weight: 50lbs

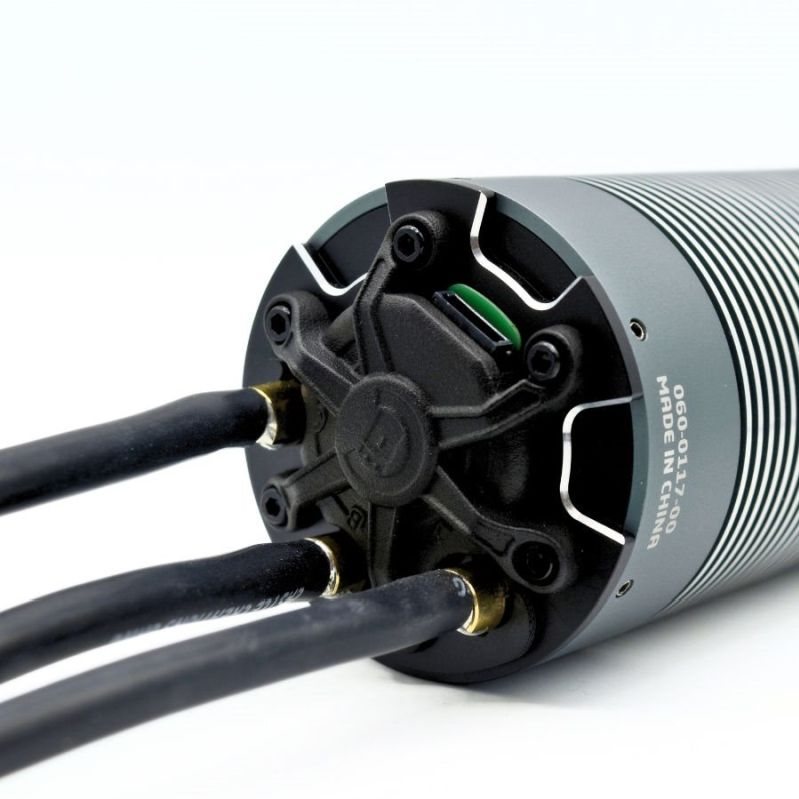

- Tech Notes: Running modes: Sensorless and Sensored / The 2535-520KV is a water-resistant design. The sensor board is coated with silicone conformal coating to protect the sensors from moisture. The sensor connections are not water resistant; water can cause signal loss which could result in loss of sensored capabilities. Castle recommends applying dielectric grease to the outside of the sensor wire connections after installation of the wire. Routine maintenance is recommended after running in wet conditions. Please refer to this document for running and maintaining motors in wet environments.
